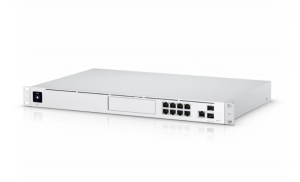

Ubiquiti UniFi Dream Machine Pro
Overview
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network
appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a
security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD
support.
- All-in-one 1U rack appliance for small to medium sized
businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD
support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor
Works with new UniFi OS
Centralized application management - all current and upcoming controllers
combined into one interface
Shared user and access management with role assignments and group
management
Enhanced Cloud portal with simple remote access to UniFi OS
UniFi Enterprise Architecture Evolves with UniFi
OS
The new UniFi Cloud portal provides simple access to all controllers and an
increasing number of UniFi applications.
UniFi Cloud Portal
Launch all current and upcoming controllers from a single view with simple
access.
Safe Access with SSO
Single Sign-On (SSO) authentication streamlines safe access to UniFi
applications.
Centralized User and Access Management
Admins easily manage users in one central location.
Installation of New Applications
Install new UniFi apps and maintain them with a single click through the
settings page.
Seamless Network Integration
Use the UniFi Dream Machine Pro as your network
controller.
|
Specifications |
|
|
DIMENSIONS |
Width x Height x
Depth: |
|
442.4 x 43.7 x 285.6
mm |
|
(17.42 x 1.72 x
11.24") |
|
Weight: 3.90 kg (8.60
lb) |
|
With Mounting
Kits: |
|
3.99 kg
(8.80 lb) |
|
PACKAGE
CONTENTS |
(2) Rackmount
Brackets |
|
(8) Bracket
Screws |
|
(4) Mounting
Screws |
|
(4) Cage
Nuts |
|
(1) Security
Screw |
|
(4) 2.5" HDD
Screws |
|
Power
Cord |
|
(4) Rubber
Feet |
|
TECHNICAL
SPECIFICATIONS |
|
|
Interfaces |
(8) 10/100/1000 RJ45
LAN Ports |
|
(1) 10/100/1000 RJ45
WAN Port |
|
(1) 1/10G SFP+ LAN
Port |
|
(1) 1/10G SFP+ WAN
Port |
|
Management
Interfaces |
Ethernet
In-Band |
|
(1) Bluetooth
BLE |
|
Technical
Information |
IDS/IPS Throughput: 3.5
Gbps * |
|
Processor: Quad ARM
Cortex-A57 Core at 1.7 GHz |
|
System Memory: 4 GB
DDR4 |
|
On-Board Flash Storage:
16 GB eMMC |
|
* Measured with
iPerf3. |
|
Environment |
Operating Temperature:
-10 to 40 C (14 to 104 F) |
|
Operating Humidity: 5
to 95% Noncondensing |
|
Power |
Max. Power Consumption:
33W |
|
Voltage Range: 100 to
240VAC |
|
Power Method: (1)
Universal AC Input, 100-240VAC, 50/60 Hz |
|
Redundant Power: (1)
RPS DC Input |
|
Power Supply: Internal
50W/12V |
|
ESD/EMP Protection:
Air: 16 kV, Contact: 12 kV |
|
Certifications |
CE, FCC,
IC |
Networking
