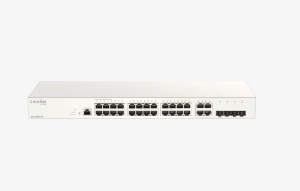

D-Link 28-Port Nuclias Cloud-Managed Switch



Overview

Powerful & flexible Cloud-Managed networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs).

  • 24 x 10/100/1000BASE-T ports
  • 4 x 10/100/1000BASE-T ports
  • Zero-Touch Deployment
  • Cloud Management w/99.9% SLA
  • WPA/WPA2/WPA3 Encryption
  • Innovative D-Link Green Energy-saving features
  • Intuitive Web Portal for comprehensive switch management
  • Multilingual Support

Nuclias-Cloud-logo

Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution D-Links complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Consumer Laptop

Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Troubleshooting

Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Security

Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Specifications

Power Input

100-240 VAC

CPU Speed

500MHz

DRAM Size

DDR3 256MB

Flash Memory Size

32MB

Packet Buffer Size

4.1MBits

FAN

Fanless

1000Base-T Interface

24

Combo 1000Base-T/SFP

4

Auto MDI/MDIX

Yes

Console Port

No

RJ-45 Management Port

No

Alarm Port

No

CompactFlash (CF) Card Slot

No

Secure Digital (SD) Card Slot

No

Number of Module Slots

No

10/100/1000 Mbps

24

Combo 1000 Mbps/SFP

4

Switch Capacity

56 Gbps

Max. Packet Forwarding Rate

41.7Mpps

Dimension

440mm x 140 mm x 44mm

Maximum Heat Dissipation

59.09 BTU/hr

Weight

2.15 kg

Operation Temperature

-5 - 50C

Storage Temperature

-20-70C

Operation Humidity

0% - 95% RH

Storage Humidity

0% ~ 95% RH

Operating Altitude

1500 meters

Maximum Power Consumption

17.32 W

MTBF

992,594 hours
