All stock codes associated to this product
DBS200052MP, DBS-2000-52MP, DL17471, 790069442988, 4600737

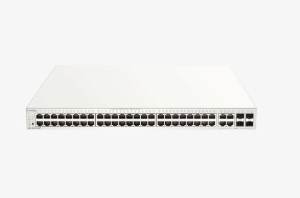

D-Link 52-Port Nuclias Cloud-Managed PoE Switch

Overview
Powerful & flexible Cloud-Managed networking solution for
Small-to-Medium-Sized Businesses (SMBs/SMEs).
  - 48 x 10/100/1000BASE-T PoE ports

 - 4 x 10/100/1000BASE-T ports

 - 370W PoE power budget

 - Supports IEEE 802.3at PoE

 - Zero-Touch Deployment

 - Cloud Management w/99.9% SLA

 - WPA/WPA2/WPA3 Encryption

 - Innovative D-Link Green Energy-saving features

 - Intuitive Web Portal for comprehensive switch management

 - Multilingual Support


Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution D-Links
complete Cloud-Managed Networking solution for Small-to-Medium Businesses
(SMBs), designed to make the ownership and administration of your IT
infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias
Cloud Web Portal through any compatible online PC or Tablet. Connectivity with
the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement
(SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet
Counters to help network admins find & solve network problems. Cable
Diagnostics enables quick examination of cable quality, recognition of cable
type, and detection of cable errors, with the Per-Port Traffic Packet Counter
helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving
administrators an easy way to manage Layer-2 features, such as VLANs, Spanning
Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful
security features, including IGMP snooping, Static MAC, and end-to-end
encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for
deployments that require easy configuration, without added complexities.

Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for
copper access ports. Power over Ethernet greatly simplifies the installation of
PoE-enabled devices such as VoIP phones and IP cameras in remote locations with
no immediate access to a power outlet.
Specifications


    |
       Power
      Input  |

       100-240
      VAC  |

    |
       CPU
      Speed  |

       700MHz  |

    |
       DRAM
      Size  |

       DDR3
      256MB  |

    |
       Flash Memory
      Size  |

       32MB  |

    |
       Packet Buffer
      Size  |

       12Mbits  |

    |
       FAN  |

       Yes  |

    |
       1000Base-T PoE
      Interface  |

       48 (Port
      1~48)  |

    |
       Combo
      1000Base-T/SFP  |

       4  |

    |
       Auto
      MDI/MDIX  |

       Yes  |

    |
       Console
      Port  |

       No  |

    |
       RJ-45 Management
      Port  |

       No  |

    |
       Alarm
      Port  |

       No  |

    |
       CompactFlash (CF)
      Card Slot  |

       No  |

    |
       Secure Digital (SD)
      Card Slot  |

       No  |

    |
       Number of Module
      Slots  |

       No  |

    |
       10/100/1000 Mbps
      PoE  |

       48  |

    |
       Combo 1000
      Mbps/SFP  |

       4  |

    |
       Switch
      Capacity  |

       104
    Gbps  |

    |
       Max. Packet
      Forwarding Rate  |

       77.4Mpps  |

    |
       PoE
      Budget  |

       370W<br/>30 W
      max. per port  |

    |
       Dimension  |

       440mm x 430 mm x
      44mm  |

    |
       Maximum Heat
      Dissipation  |

       1634.01
      BTU/hr  |

    |
       Maximum Power
      Consumption  |

       478.9 W (PoE
      on)<br/>54.4 W (PoE off)  |

    |
       MTBF  |

       236,406
      hours  |

    |
       Weight  |

       6.26
    kg  |

    |
       Operation
      Temperature  |

       -5 -
    50C  |

    |
       Storage
      Temperature  |

       -20-70C  |

    |
       Operation
      Humidity  |

       0% - 95%
      RH  |

    |
       Storage
      Humidity  |

       0% ~ 95%
      RH  |

    |
       Operating
      Altitude  |

       1500
      meters  |
