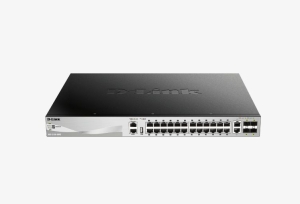

D-Link 30-Port Lite Layer 3 Stackable Managed Gigabit PoE Switch



Overview

Lite Layer 3 stackable managed switch for a secure enterprise or metro Ethernet access network.

  • 24 x 10/100/1000BASE-T PoE ports
  • 2 x 10GBASE-T ports
  • 4 x 10G SFP+ ports
  • Embedded 6 kV surge protection on all Gigabit Ethernet ports
  • L3 features include VRRP, Static Route and RIPv1/v2/ng
  • Robust 370W PoE budget
  • Unified software image with powerful L2 and L3 features

Unified Image and 10G Connectivity

The DGS-3130 Series is a range of highly versatile Layer 3 stackable managed switches featuring a single unified software that integrates powerful L2 and L3 features to fulfill the requirements of different applications including SME/SMB, enterprise, and Metro Ethernet deployments. In addition, the DGS-3130 Series features six embedded high-speed 10G ports to simplify network deployment by providing flexible options for creating uplink connections. With these features combined, the DGS-3130 Series helps businesses build solid, robust networks.

Why You Want It

  • Highly Reliable with Redundant power supply (RPS) support and 6 kV surge protection on all Gigabit Ethernet ports
  • Feature-Rich Unified Image with powerful L2 and L3 features
  • Scalable and Highly Available with physical stacking and fault tolerant topologies
  • Easy Access Control with support for 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC)

Highly Available. Highly Flexible.

Highly Available. Highly Flexible.

The D-Link DGS-3130 Lite Layer 3 Stackable Managed Switches are a Gigabit access layer solution specifically designed to connect end-users in a secure enterprise or metro Ethernet access network.

The switches are stackable, have embedded 10G ports and use fault-tolerant topologies. This makes them ideal for network administrators who demand agile expansion functionality without having to sacrifice network reliability.

Slash Your Network Downtime

Slash Your Network Downtime

The DGS-3130 Series gives enterprises and organizations a highly reliable network, allowing for maximum business continuity. It has built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms.

Along with a host of essential network reliability features, all switches in the series support an external redundant power supply to ensure your operations continue unimpeded.

Comprehensive Security

Comprehensive Security

The DGS-3130 Series gives your network the protection it deserves with leading-edge security features that handle threats effectively. With built-in IP-MAC-Port Binding, the switches allow administrators to enhance user access control.

Other advanced features like DHCP Snooping let the switches automatically learn and save IP/MAC pairs to the IMPB white list.

Powerful and Unified

Powerful and Unified

Powerful L2 and L3 features come together in an integrated software image. This allows the switches to satisfy a wide range of requirements for different applications perfect for building the most solid and robust networks.

Manage Network Traffic in a Whole New Way

Manage Network Traffic in a Whole New Way

The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to prioritize critical network services such as VoIP, video conferences, IPTV, and IP surveillance. With robust features including Traffic Shaping, L2 Multicast, Host-based IGMP/MLD Snooping and ISM VLAN, administrators get a whole new way to manage their traffic that fits their needs.

Flexible Access Control Policies

Flexible Access Control Policies

Strict access control and deployment are made easy with the DGS-3130 switches. All support authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC), and allow individual policies to be assigned to each host after authentication. In addition, the switch also supports Microsoft NAP (Network Access Protection).

Specifications

Port based 802.1X Authentication

Yes

802.1X

Yes

Host based 802.1X Authentication

Yes

Identity Driven 802.1X Policy Assignment

Yes

Web-based Access Control (WAC)

Yes

Port based WAC Authentication

Yes

Host based WAC Authentication

Yes

Identity Driven WAC Policy Assignment

Yes

MAC-based Access Control (MAC)

Yes

Port based MAC Authentication

Yes

Host based MAC Authentication

Yes

Identity Driven MAC Policy Assignment

Yes

Compound Authentication

Yes

Guest VLAN

Yes

Microsoft NAP Support

Yes

Authentication for Management Access

Yes

Privilege Level for Management Access

Yes

RADIUS

Yes

RADIUS Accounting

Yes

Trusted Host

Yes

TACACS+

Yes

Authentication Database Failover

Yes

Max Access Control List (ACL) Entries

Yes

MAC Access List

Yes

IP Access List

Yes

IPv6 Access List

Yes

Time based ACL

Yes

CPU Interface Filtering

Yes

Port-based Bandwidth Control

Yes

Flow-based bandwidth Control

Yes

Queue-based Bandwidth Control

Yes

Class of Service (CoS)

Yes

Two Rate Three Color Marker (trTCM)

Yes

Single Rate Three Color Marker (srTCM)

Yes

Weighted Random Early Detection (WRED)

Yes

Simple Random Early Detection (SRED)

Yes

G.8032 ERPS

Yes

Multiple ERPS Ring

Yes

802.3x Flow Control

Yes

Head-of-line (HOL) Blocking Prevention

Yes

Store & Forwarding Forwading

Yes

Control Module Redundancy

Yes

Comply with RoHS 6

Yes

Energy Efficiency Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

Power Saving By Cable Length

Yes

Power Saving By LED Shut-Off

Yes

Power Saving By Port Shut-Off

Yes

Power Saving By Port Standby

Yes

Power Saving By System Hibernation

Yes

Time-based PoE

Yes

10/100/1000BASE-T PoE ports

24

10GBASE-T ports

2

10G SFP+ ports

4

RJ-45 Console port

1

RJ-45 Management Port

1

1000Base-T Interface

0

1000Base-T PoE Interface

24

1000M SFP Interface

0

100M SFP Interface

0

10G SFP+ Interface

4

10GBase-T Interface

2

Console Port

1

USB 2.0 port

1

USB Port

1

CPU Speed

1.25GHz

DRAM Size

1GB DDR4

Flash Memory Size

256MB NAND

Packet Buffer Size

2MB

FAN

Yes

Jumbo Frame

9,216 (9K) Bytes

Loopback Detection (LBD)

Yes

L2 Protocol Tunneling

Yes

MAC Address Table Size

16,384 (16K)

Black Hole MAC Address

Yes

IGMP Snooping

Yes

Max IGMP Snooping Groups

1,024

IGMP Snooping Fast Leave

Yes

IGMP Proxy Reporting

Yes

IGMP Authentication

Yes

MLD Snooping

Yes

MLD Snooping Groups

1,024

MLD Snooping Fast Leave

Yes

MLD Proxy Reporting

Yes

IP Interface

Yes

Max Number of IP Interface

16

Loopback Interface

Yes

ARP

Yes

ARP Entries

2,048

Gratuitous ARP

Yes

ARP Proxy

Yes

IPv6 Neighbor Discovery (ND)

Yes

ND Entries

1,024

UDP Helper

Yes

Routing Table Entry

1,024

L3 Forwarding Table Entry

4,096

Equal-Cost Multi-Path Route (ECMP)

Yes

Weighted-Cost Multi-Path Route (WCMP)

Yes

Default Route

Yes

Static Route

Yes

Policy-based Route (PBR)

Yes

Null Route

Yes

Route Preference Setting

Yes

Route Redistribution

Yes

802.1AX Link Aggregation

Yes

802.3ad Link Aggregation

Yes

Link Aggregation Group Per Device

32

Max Port Per Link Aggregation Group

8

Web-based GUI

Yes

Command Line Interface (CLI)

Yes

Telnet Server

Yes

Telnet Client

Yes

SNMP

Yes

SNMP Trap

Yes

TFTP Client

Yes

Secured FTP (SFTP) Server

Yes

ZModem

Yes

System Log

Yes

Command Logging

Yes

SMTP

Yes

RMONv1

Yes

RMONv2

Yes

LLDP

Yes

LLDP-MED

Yes

D-Link Discover Protocol (DDP)

Yes

DHCP/BootP Client

Yes

DHCP Auto-configuration

Yes

DHCP relay

Yes

DHCP Server

Yes

DHCPv6 Prefix Delegation (PD)

Yes

PPPoE Circuit-ID Tag Insertion

Yes

Flash file system

Yes

Dual Images

Yes

Multiple Images

Yes

Dual Configurations

Yes

Multiple Configurations

Yes

Editable Login Banner

Yes

Editable System Prompt

Yes

DNS Client

Yes

Debug Command

Yes

Password Recovery

Yes

Password Encryption

Yes

MTU Setting

Yes

Ping

Yes

Traceroute

Yes

Microsoft Network Load Balancing (NLB)

Yes

sFlow

Yes

Port Mirroring

Yes

Flow-based (ACL) mirroring

Yes

RSPAN

Yes

Cable Diagnostics

Yes

802.3ah Ethernet Link OAM

Yes

D-link Unidirectional Link Detection (DULD)

Yes

Dying Gasp

Yes

802.1ag Connectivity Fault Management (CFM)

Yes

Y.1731 OAM

Yes

Optical Transceiver Digital Diagnostic Monitoring (DDM)

Yes

Switch Capacity

168 Gbps

Max. Packet Forwarding Rate

125 Mpps

Maximum PoE Budget

370.00W (740.00W when DPS-700 is connected)

PoE Budget

370 W<br> 740 W (with DPS-700 RPS)

Remark 802.1p priority

Yes

Remark ToS/DSCP

Yes

Rate Limiting

Yes

Time based QoS

Yes

Power Input

AC100 ~ 240 V

Redundant Power Supply

DPS-700

Number of Queue

8

Queue Handling

Yes

Weighted Round Robin (WRR)

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Deficit Round Robin (WDRR)

Yes

SPQ + WRR

Yes

RIPv1

Yes

RIPv2

Yes

RIPng

Yes

SSH

Yes

SSL

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Port Security

Yes

IP-MAC-Port Binding (IMPB)

Yes

IP Source Guard

Yes

Traffic Segmentation

Yes

Dynamic ARP Inspection (DAI)

Yes

IPv6 Snooping

Yes

DHCP Snooping

Yes

IPv6 Route Advertisement (RA) Guard

Yes

DHCPv6 Guard

Yes

D-Link Safeguard Engine

Yes

L3 Control Packet Filtering

Yes

IPv6 ND Inspection

Yes

DHCP Server Screening

Yes

NetBIOS/NetBEUI filtering

Yes

DHCP Client Filtering

Yes

ARP Spoofing Prevention

Yes

BPDU Attack Protection

Yes

DoS Attack Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

802.1s Multiple Spanning Tree (MSTP)

Yes

BPDU Filtering

Yes

Root Restriction

Yes

BPDU Restriction

Yes

Physical Stacking

Yes

Physical Stacking Bandwidth

80G, with stacking port trunking

Units Per Physical Stack

9

Maximum Heat Dissipation

1609.41 BTU/h (with 370 W PoE load) <br>3043.97 BTU/h (with 740 W PoE load)

Dimension

440(W) x 44(H) x 350(D) mm

Maximum Power Consumption

471.67 W (with 370 W PoE load) <br>892.1 W (with 740 W PoE load)

MTBF

409,054 hours

Operating Altitude

2000m

Operation Humidity

10% ~ 90% RH

Operation Temperature

0 ~ 50 C

Standby Power Consumption

52.44W

Storage Humidity

5% ~ 90% RH

Storage Temperature

- 40 ~ 70 C

Weight

4.66Kg

Network Time Protocol (NTP)

Yes

Simple Network Time Protocol (SNTP)

Yes

D-Link Single IP Management (SIM)

Yes

Units Per SIM Stack

32

802.1Q VLAN

Yes

VLAN Groups

4094

Port-based VLAN

Yes

802.1v Protocol-based VLAN

Yes

MAC-based VLAN

Yes

Voice VLAN

Yes

Auto Surveillance VLAN

Yes

GVRP

Yes

Double VLAN (Q in Q)

Yes

Selective Q in Q

Yes

VLAN Translation

Yes

ISM VLAN (Multicast VLAN)

Yes

Asymmetric VLAN

Yes

Private VLAN

Yes

Super VLAN

Yes

VLAN trunking

Yes

VRRP

Yes

VRRPv3

Yes
