All stock codes associated to this product
AIRPULSEA100, SPEA100BLK, SPE-A100-BLK, 6970582640519

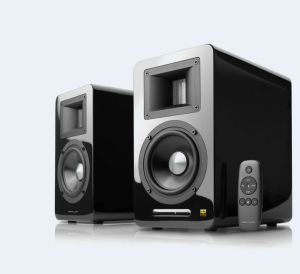

Edifier Airpulse A100 Hi-Res Audio Designed By Phil Jones -
Black
Overview
- Hi-res audio certified
- Silk-dome tweeters
- 5" mid woofer unit
- Built-in Amplifier w/ subwoofer output
- Optical, Coaxial, Bluetooth 4.1 aptX, RCA, AUX, and USB
Inputs
Hi-Res Audio Certified Active Bookshelf
Speaker
The perfect set of speakers for your introduction to Hi-Res certified
speakers. The A100 speakers are a fully featured set of active bookshelf
speakers with multiple digital and analog inputs and are equipped with a
subwoofer output for attaching an optional active subwoofer to reach the
thundering lows of the audible spectrum.
Horn Loaded Ribbon Tweeter
This horn loaded ribbon tweeter is made from a thin aluminum diaphragm
provides a high-sensitivity, extended frequency range and a well-defined
resolution. The shape itself directs an optimized high-frequency directly to the
listener minimizing room reflection and leading to a superior imaging of the
speaker.
BE BOLD.
Stand out with the design of our speakers that speak to the modern-day
sensibilities with its clean sleek angles. Choose from the striking black or
stand out red and black cabinet housing. The bold highlighted cabinet from
AirPulse adds a modern day feel to the dcor of the room.
Technical and Aesthetic Designed by Phil
Jones
Phil Jones technical and aesthetic design blends together to create a new
generation of sound. Each cabinet is made from 18mm thick high-strength MDF with
a piano lacquer finish. The interior is lined with a professional-grade sound
absorption material to reduce unwanted coloration in your sound.
Built-in Amplifier and Receiver Components
The built-in amplifier is constructed with 2 parts of the TAS5754 Class-D
amplifier chipset from Texas Instrument. This component combines high input
sample rate support and high output PWM carrier frequency. Combining these two
components achieves a low background noise and low distortion.
Fully Loaded Inputs and Subwoofer Output
The A100 is equipped with both digital and analog inputs. Connect your phone,
laptop, computer and other devices with the following inputs. AUX, RCA, USB,
Optical and Bluetooth. Both USB and optical inputs support up to 192KHz input
sample. The Bluetooth input uses version 4.1 with support for aptX. Connect a
subwoofer quickly and easily with available subwoofer out.
Specifications
|
TWEETER UNIT
|
Horn Loaded Ribbon
Tweeter |
|
MID-WOOFER
|
5 inch Aluminum Cone
Underhung Design Neo. Power Mid-Woofer |
|
AMPLIFIER SYSTEM
|
Digtal Amplifer With
Xmos Processor |
|
TOTAL POWER OUTPUT
|
L/R(Treble)10W+10W,
L/R(Woofer): 40W+40W |
|
FREQUENCY RANGE
|
52Hz-40KHz |
|
SIGNAL-TO-NOISE
RATIO |
L/R:90dB(A) |
|
INPUT TYPE
|
AUX, PC, USB, Optical,
Bluetooth. |
|
INPUT SENSITIVITY
|
AUX:45050mV PC:55050mV,
USB:40050mFFs, Optical:40050mFFs, Bluetooth:50050mFFs, Sub Out:
800mV(max) |
|
MAINS VOLTAGE
|
100-240 V AC/50-60
Hz |
|
DIMENSION
|
160x283x255mm |
|
NET WEIGHT
|
11
Kg(24.2lbs) |
|
WEIGHT
|
13.4
Kg(29.5lbs) |
|
PACKING DIMENSION
|
387x489x353mm |
