Gigabyte TRX40 Designare (rev. 1.0) Motherboard



Key Features

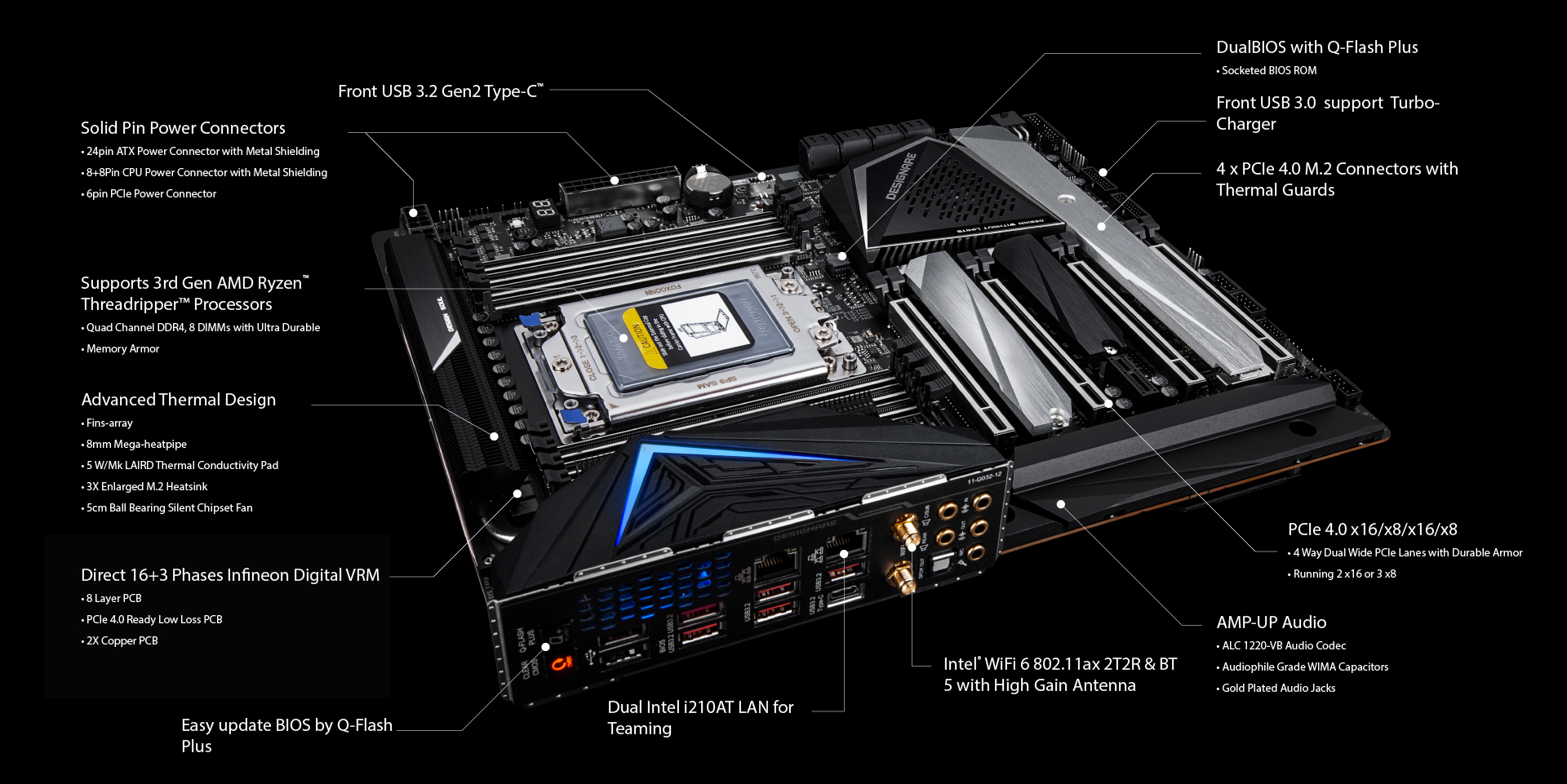

AMD TRX40 DESIGNARE Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, Dual Intel LAN, 4 PCIe 4.0 M.2 with Thermal Guards, Bundled GC-Titan Ridge Add-In Card and AORUS Gen4 AIC Adaptor, Intel WiFi 6 802.11ax,120dB SNR AMP-UP Audio

  • Supports 3rd Gen AMD Ryzen Threadripper Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
  • 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
  • Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
  • Dual Intel Gigabit LAN with cFosSpeed to shorten response time
  • 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with Antenna
  • 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
  • Bundled 40Gb/s GC-Titan Ridge Add-In Card
  • Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
  • USB TurboCharger for Mobile Device Fast Charge Support
  • RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front & Rear USB 3.2 Gen 2 Type-C Header
  • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Specifications

CPU

1. AMD Socket sTRX4:

Support 3rd Generation AMD Ryzen Threadripper processors

(Please refer "CPU Support List" for more information.)

Chipset

1. AMD TRX40

Memory

1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory

2. Quad Channel memory architecture

3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Audio

1. Realtek ALC4050H codec+ Realtek ALC1220-VB codec

2. Support for DTS:X Ultra

3. High Definition Audio

4. 2/4/5.1/7.1-channel

5. Support for S/PDIF Out

LAN

1. 2 x Intel GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel Wi-Fi 6 AX200

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

2. BLUETOOTH 5.0

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

3. 1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 4.0 standard.)

Multi-Graphics Technology

1. Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies

2. Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies

Storage Interface

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)

2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)

2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)

3. 8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 2 x 8-pin ATX 12V power connectors

3. 1 x OC_PEG power connector

4. 1 x CPU fan header

5. 1 x water cooling CPU fan header

6. 2 x system fan headers

7. 4 x system fan/water cooling pump headers

8. 2 x addressable LED strip headers

9. 2 x RGB LED strip headers

10. 4 x M.2 Socket 3 connectors

11. 8 x SATA 6Gb/s connectors

12. 1 x front panel header

13. 1 x front panel audio header

14. 1 x USB Type-C header, with USB 3.2 Gen 2 support

15. 2 x USB 3.2 Gen 1 headers

16. 2 x USB 2.0/1.1 headers

17. 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector

18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

19. 1 x power button

20. 1 x reset button

21. 2 x temperature sensor headers

22. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x Q-Flash Plus button

2. 1 x Clear CMOS button

3. 1 x USB Type-C port, with USB 3.2 Gen 2 support

4. 5 x USB 3.2 Gen 2 Type-A ports (red)

5. 2 x USB 2.0/1.1 ports

6. 2 x RJ-45 ports

7. 2 x SMA antenna connectors (2T2R)

8. 1 x optical S/PDIF Out connector

9. 5 x audio jacks

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Overheating warning

6. Fan fail warning

7. Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1. 2 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. Support for DualBIOS

4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

RGB Fusion

Smart Backup

Smart Keyboard

Smart Survey

System Information Viewer

USB Blocker

USB TurboCharger

2. Support for Q-Flash Plus

3. Support for Q-Flash

4. Support for Xpress Install

Bundled Software

1. Norton Internet Security (OEM version)

2. cFosSpeed

3. XSplit Gamecaster + Broadcaster (12 months license)

Operating System

1. Support for Windows 10 64-bit

Form Factor

1. XL-ATX Form Factor; 32.5cm x 26.9cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
