All stock codes associated to this product
GATRX40AORUSMASTERAU, GA-TRX40-AORUS-MASTER-AU

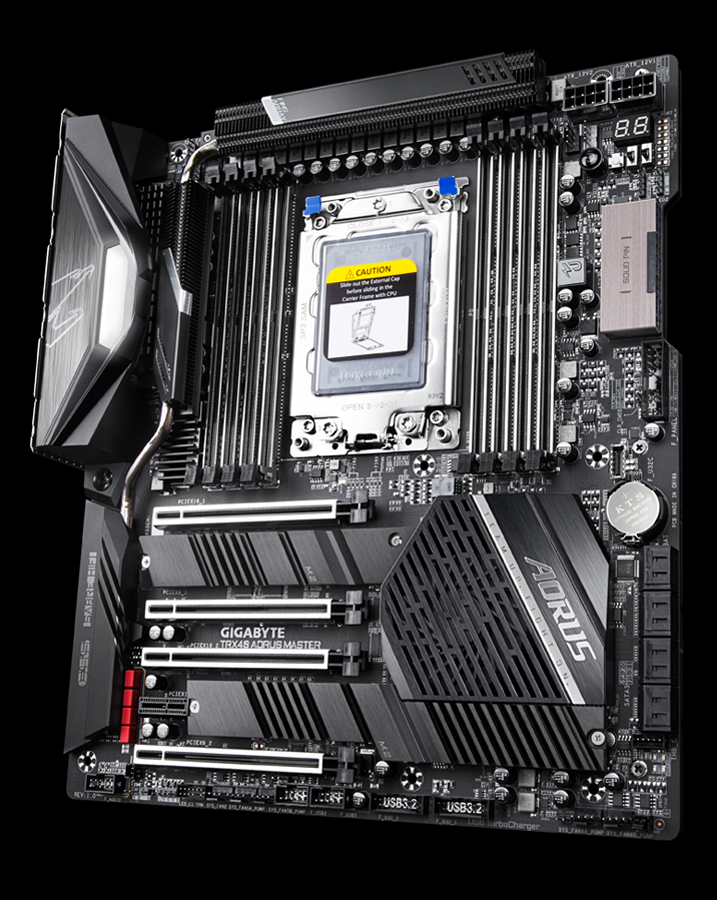

Gigabyte TRX40 Aorus Master (rev. 1.0) Motherboard
Overview
AMD TRX40 AORUS Motherboard with Direct 16+3 Phases Infineon Digital VRM,
Fins-Array Heatsink, NanoCarbon Baseplate, 5GbE+1GbE LAN, 3 PCIe 4.0 M.2 with
Thermal Guards, Intel WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, RGB FUSION
2.0
- Supports 3rd Gen AMD Ryzen Threadripper Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
- Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended
Heatsink and NanoCarbon Baseplate
- AQUANTIA 5GbE LAN and Intel GbE LAN with cFosSpeed
- 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
- Onboard Intel WiFi 6 802.11ax 2T2R & BT 5
- 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and
WIMA Audio Capacitors
- USB TurboCharger for Mobile Device Fast Charge Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support
Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with
FAN STOP and Noise Detection
- Front & Rear USB 3.2 Gen 2 Type-C Header

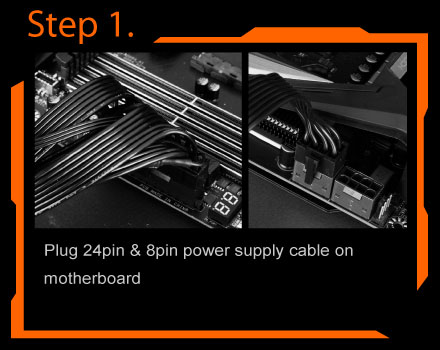

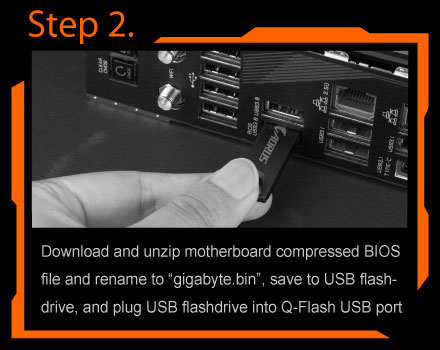

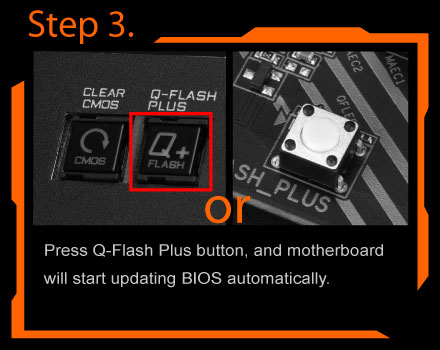

- Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics
Card
DESIGN CONCEPT | WINGS OF EXCELLENCE
The falcon utilizes its powerful wings to soar through the skies and lock
down its prey. The AORUS Core takes inspiration from the falcons aerodynamic
wings, incorporating a multi-layered design which features wing shaped contours
and also resembles the falcons high velocity ascension and dive through the
skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in
technology with its futuristic style.
ULTIMATE POWER DESIGN
To unleash the full potential of the 3rd Generation AMD Ryzen Threadripper
CPU, the motherboard requires the best CPU power design. With the best quality
components and GIGABYTE R&D design capability, TRX40 AORUS MASTER is a true
beast among motherboards.

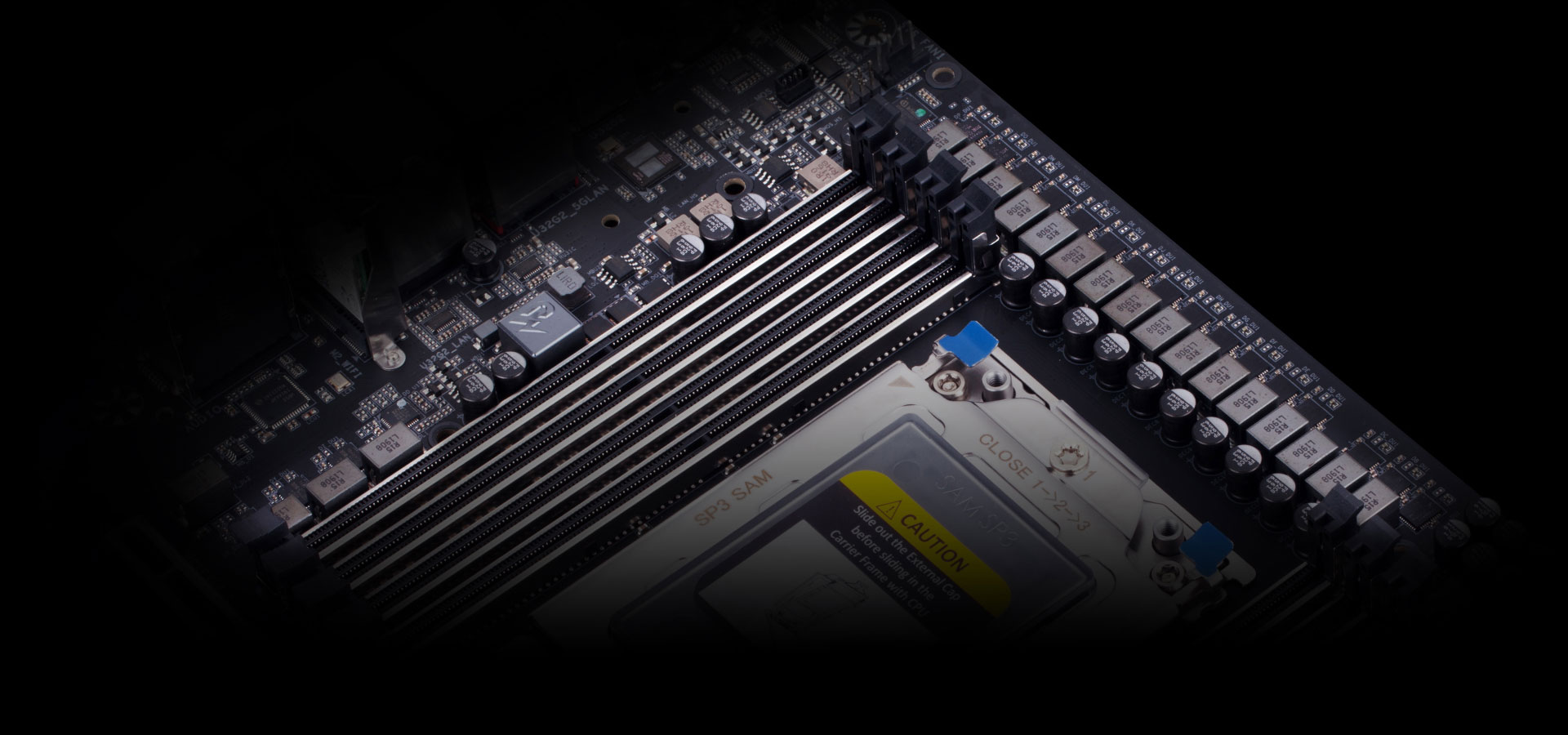

Direct 16 Phase Power Design

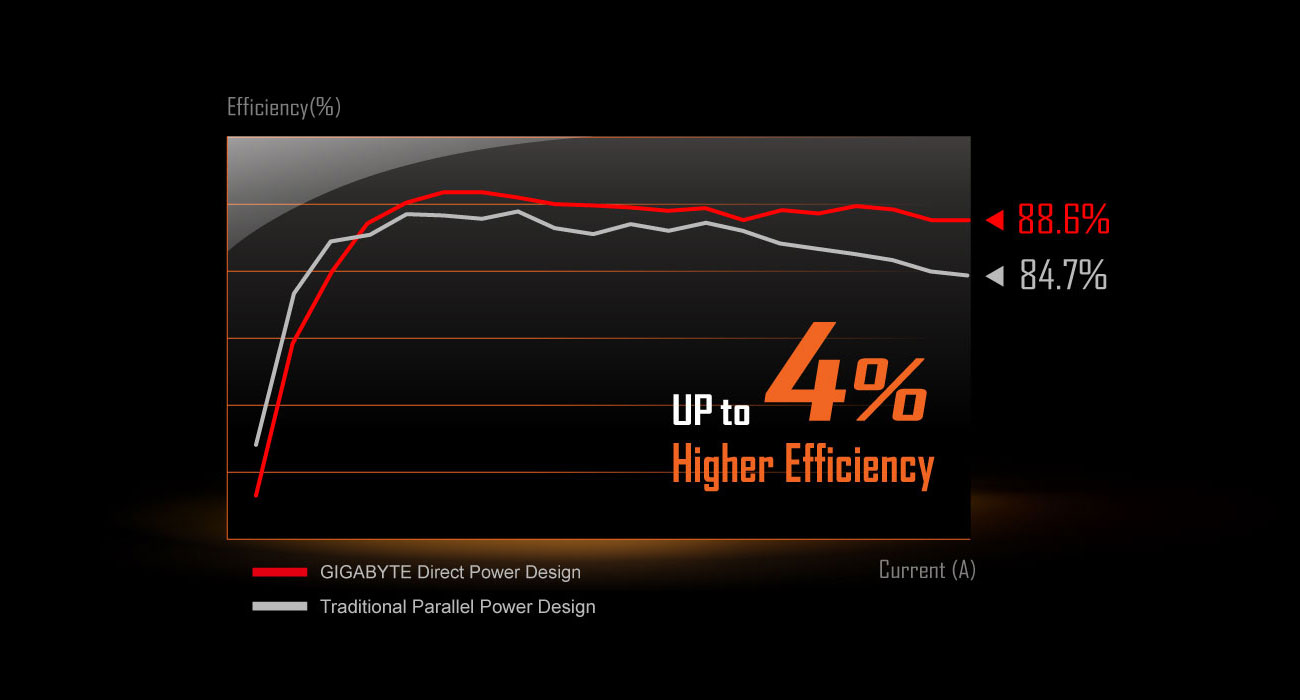

Power Efficiency & Voltage Ripple Graph

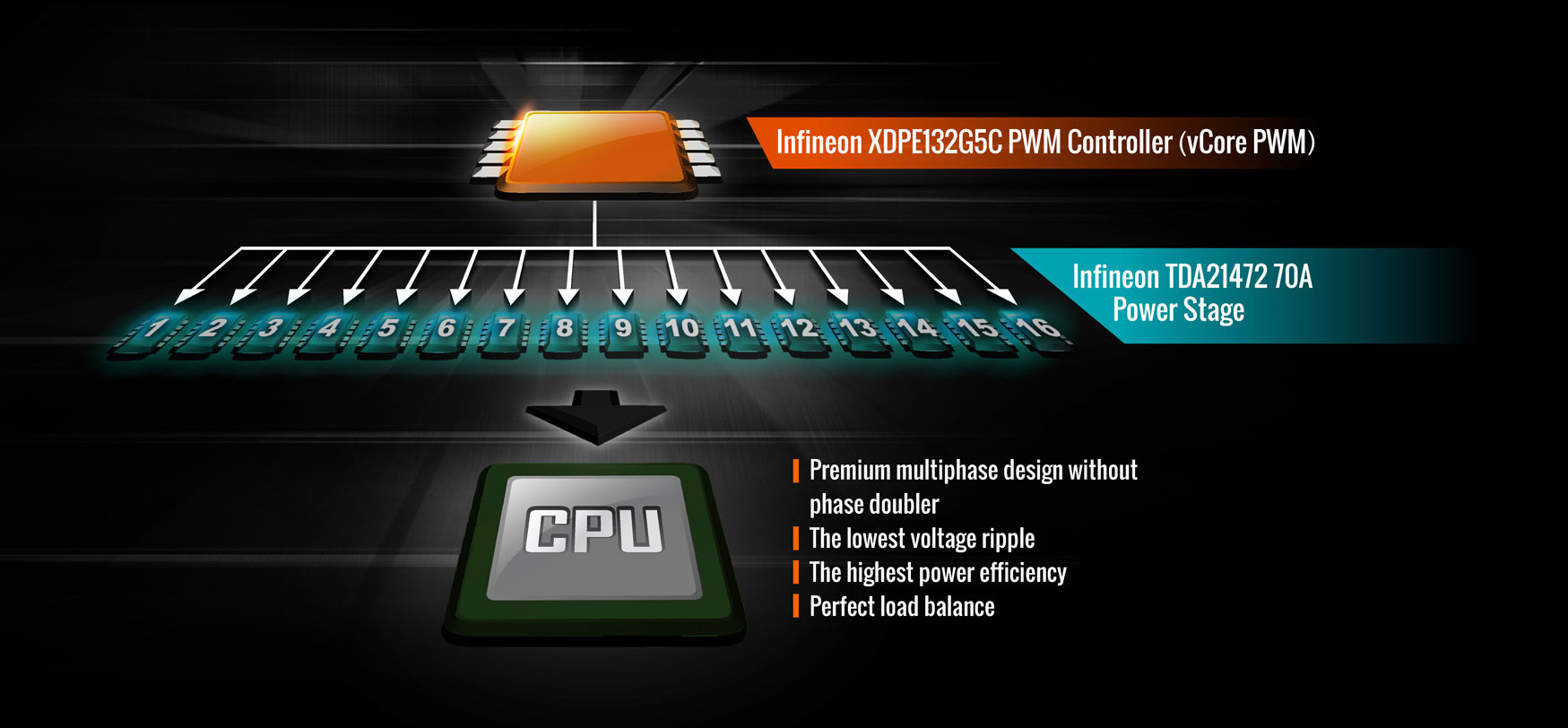

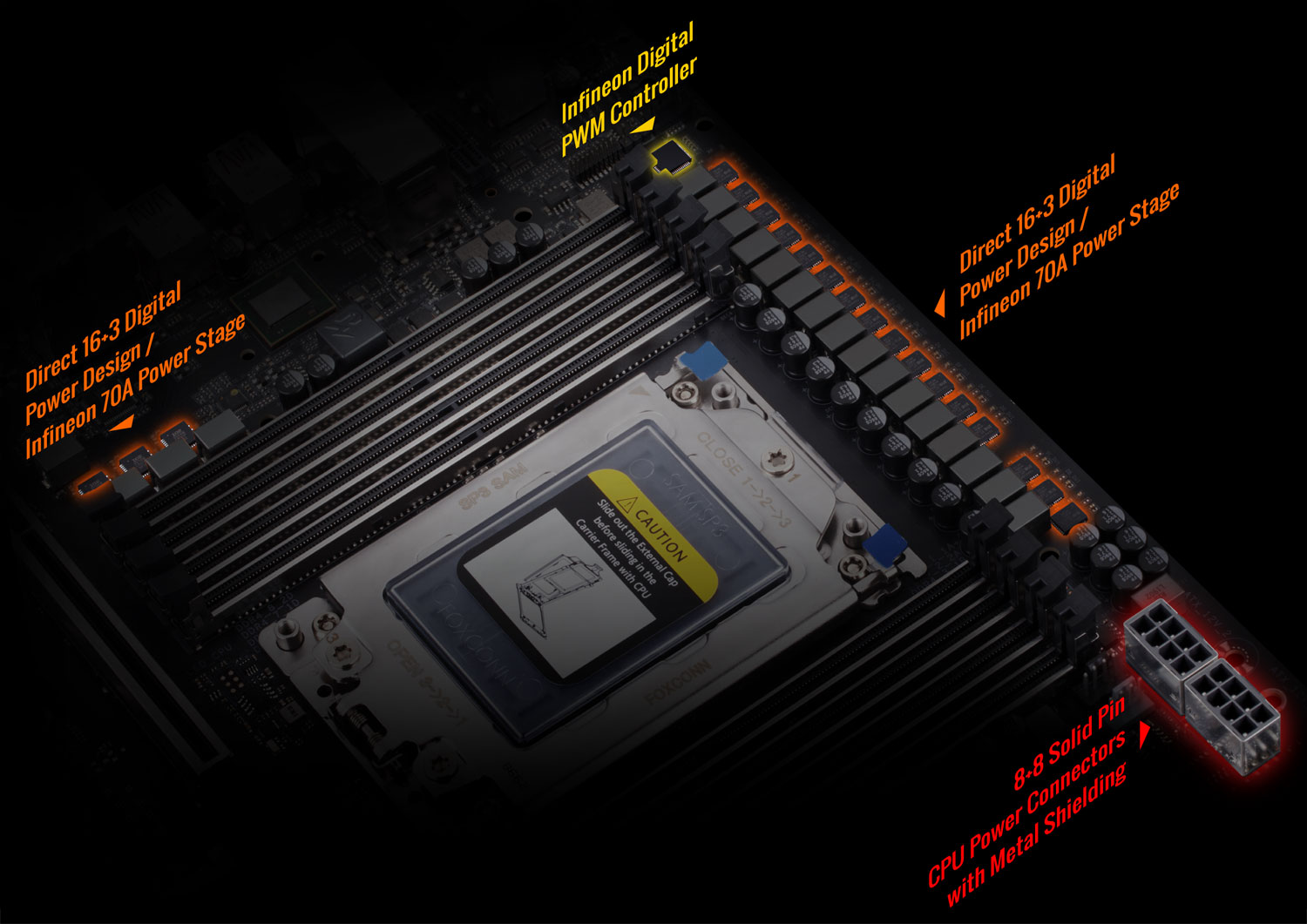

Direct 16+3 Phases Infineon Digital VRM
Solution
TRX40 AORUS MASTER motherboard uses latest new generation Infineon multiphase
PWM controller, and a total 16+3 phase for vCore and SOC, all with Infineon
TDA21472 Power Stage MOSFET which is capable of providing at least 70A of power
from each phase, for a total of amazing 1330A. Power design is no longer a
bottleneck for this motherboard.
- New Direct Multiphase Power Design
- No Doubler / Not Parallel
- Next-Gen Infineon PWM Controller
- 70A Power Stage
- The Lowest Voltage Ripple
- The Highest Efficiency

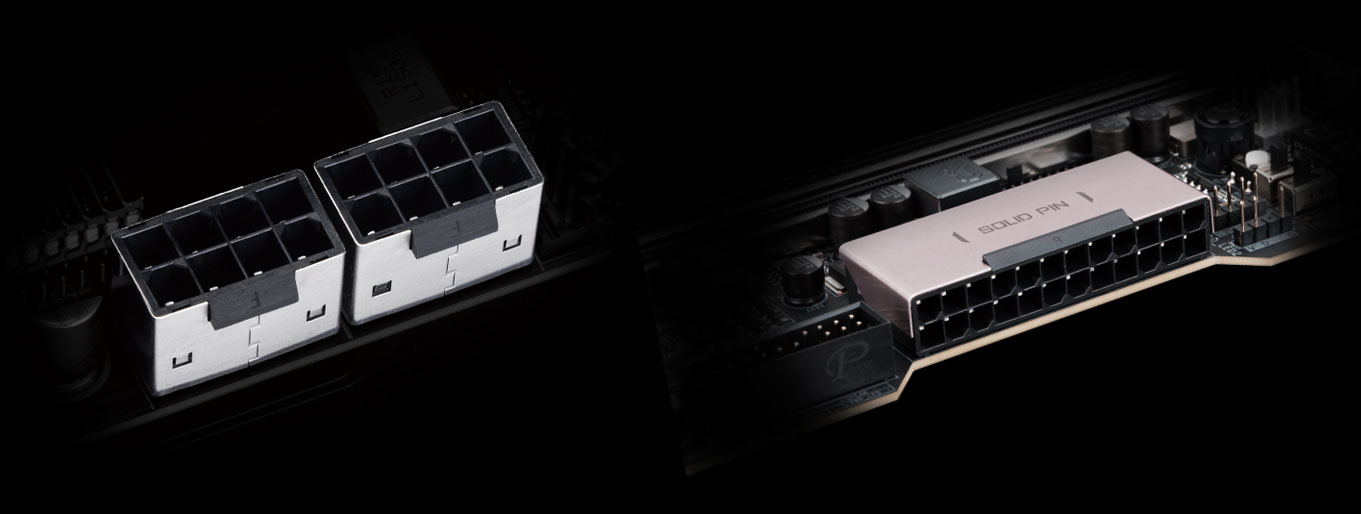

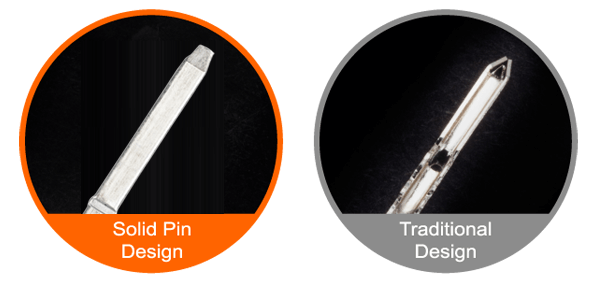

- 8+8 Pin Metal Shielding Connector

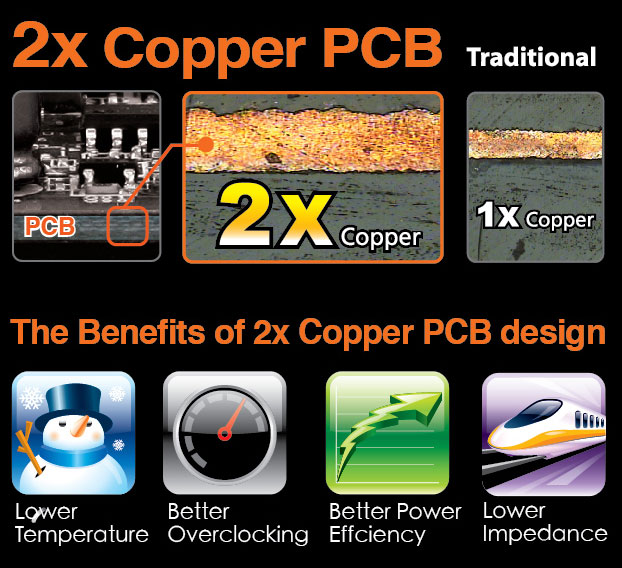

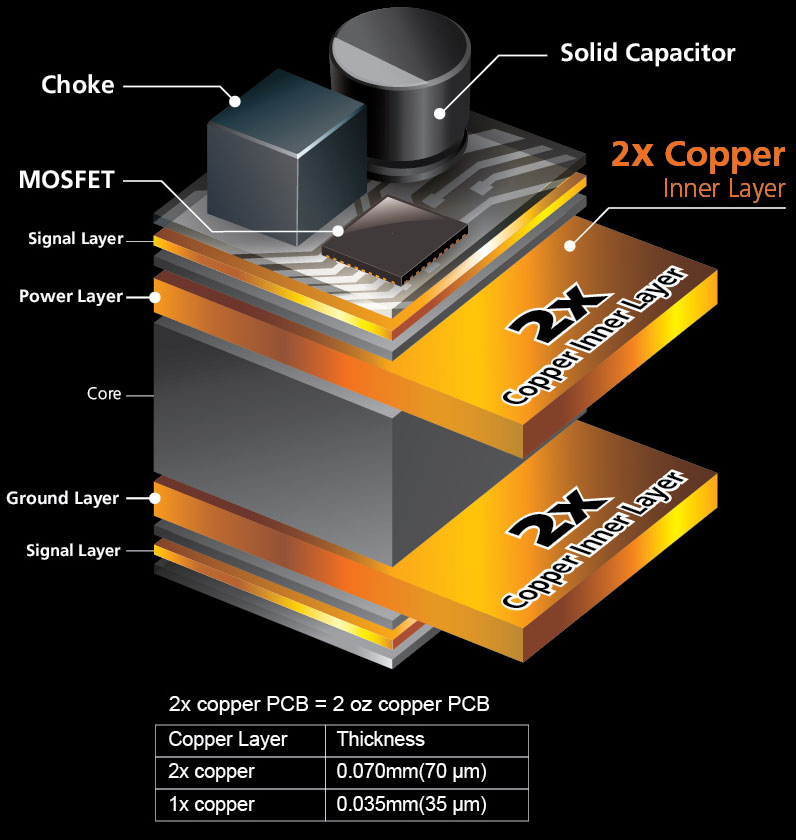

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace
paths between components to handle greater than normal power loads and to remove
heat from the critical CPU power delivery area. This is essential to ensure the
motherboard is able to handle the increased power loading that is necessary when
overclocking.
ADVANCED THERMAL DESIGN
TRX40 AORUS MASTER reaches a perfect balance between style and performance by
combining the media acclaimed Fins-Array heatsink, Heatpipe and a thermal
baseplate, to provide lower MOSFET temperatures for enthusiasts, overclockers
and professional gamers.
Thermal Design
Heatpipe with Extended Heatsink
Extended heatsink with Heatpipe is capable of transferring more heat from MOS
fins under same time period.
Fins-Array
Fins-Array increases the heat dissipation surface by 300% compared to
traditional heatsinks of the same size.
5 W/mK LAIRD Thermal Pad
By using LAIRD 5W/mK high thermal conductivity pads, it can transfer 2.7x
more heat.

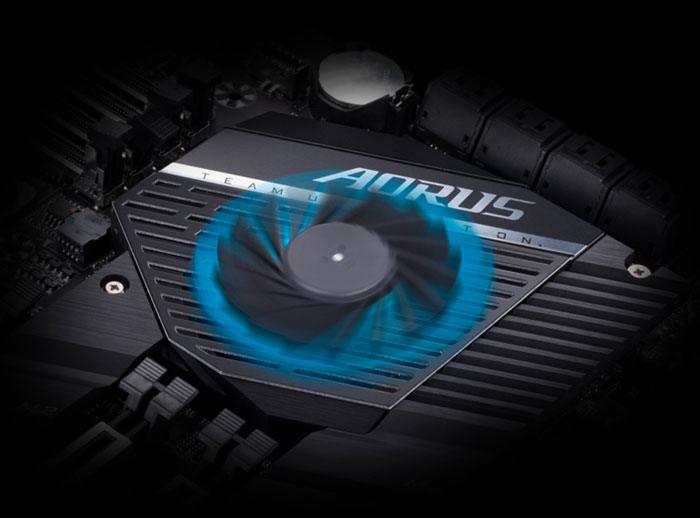

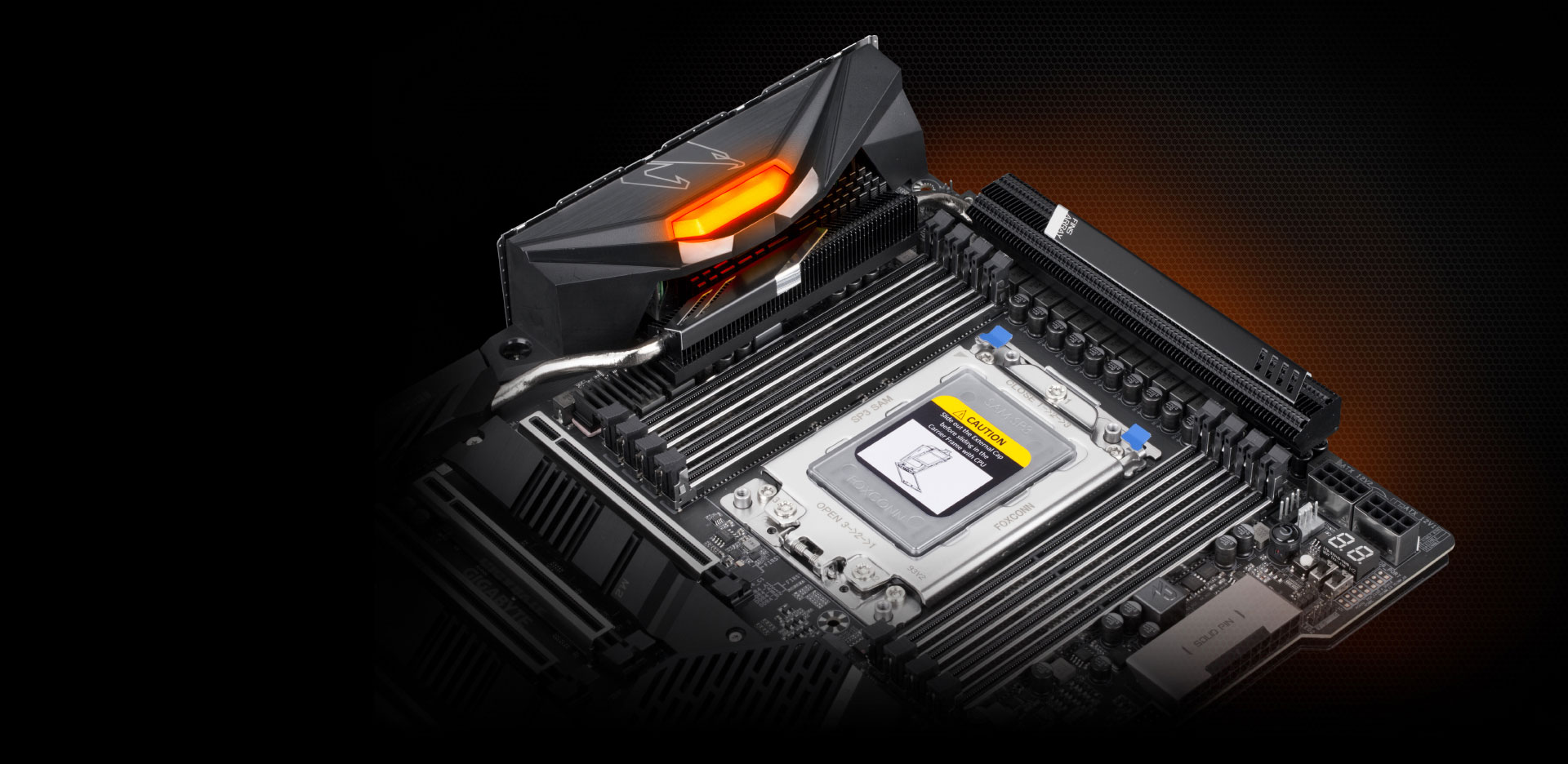

Smart Chipset Fan Heatsink
Smart Fan
Provides several different operating modes to minimize noise and extend the
fan's longevity. You can choose the mode that suits you the best in any
situation.
High Durability
TRX40 motherboards built-in a 5cm ball bearing fan which guarantee 50,000*
working hours to cool down the heat brought out by the TRX40
chipset.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD
devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high
speed M.2 SSDs as it helps to dissipate heat before it becomes an
issue.

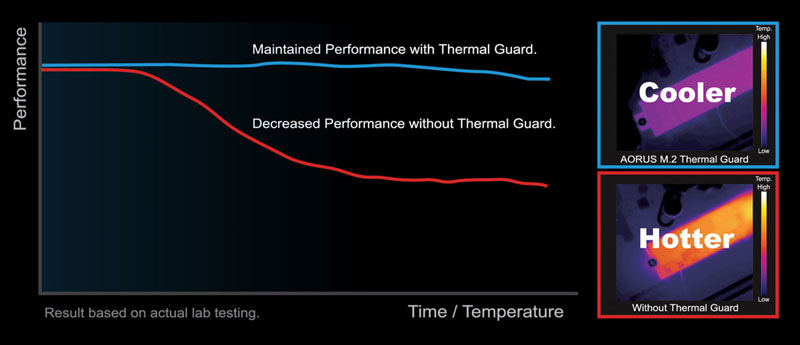

Thermal Throttling As Temperature Rises
NanoCarbon Baseplate
- Base plate made of aluminum instead of traditional iron ensures 3X thermal
conductivity.
- A thin layer of NanoCarbon is coated on the base plate through
electrostatic adhesion to enhance thermal radiation capability.
- Transfer heat from the back side PCB to the base plate so the NanoCarbon
base plate can dissipate heat passively.
- Effectively lowers backside PWM component temperature by
10%.
NanoCarbon Coating
- This specialized nanostructure of carbon molecules has extraordinary
thermal conductivity.
Noise Detection
With the new Noise Detection function, you can monitor noise level of all
devices including fans, CPU coolers, graphics card, etc. in real time, and you
can determine how fast your fan speed needs to be. Our bundled Noise Detection
cable doesnt include any sound recording function, it simply detects sound
pressure while protecting your privacy.

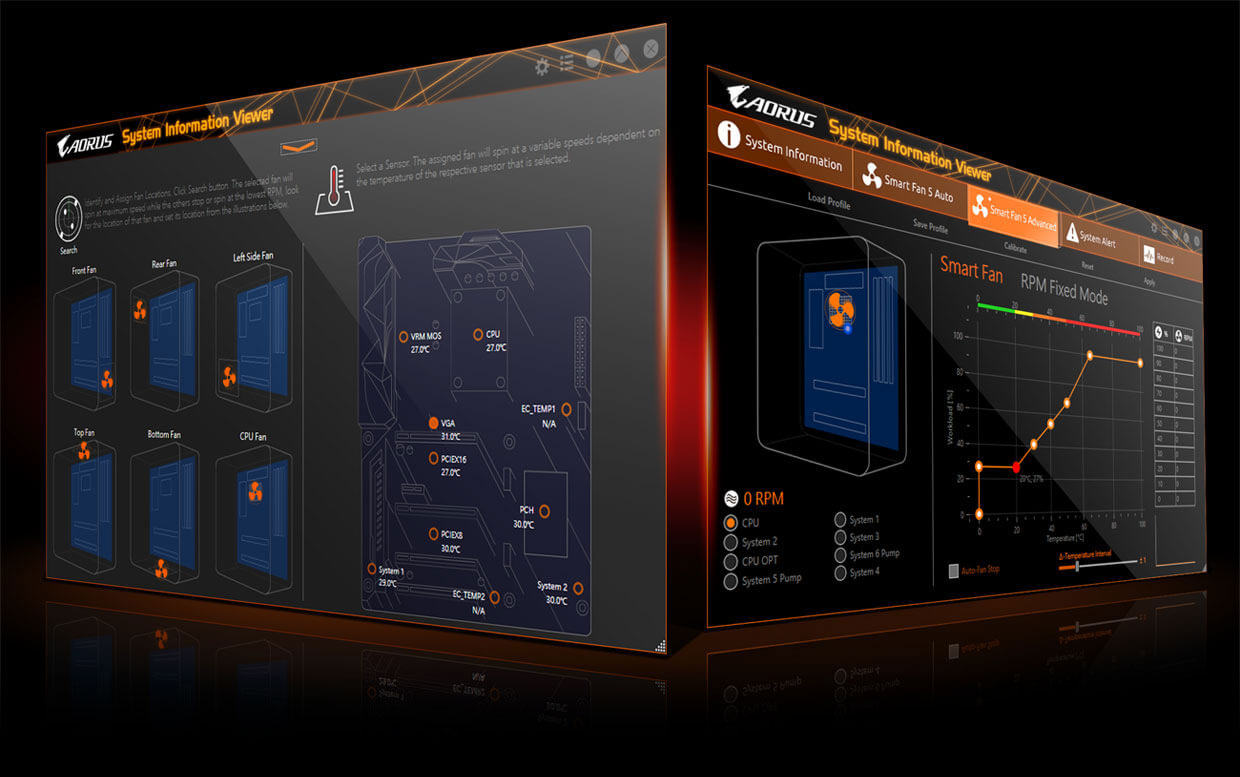

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.

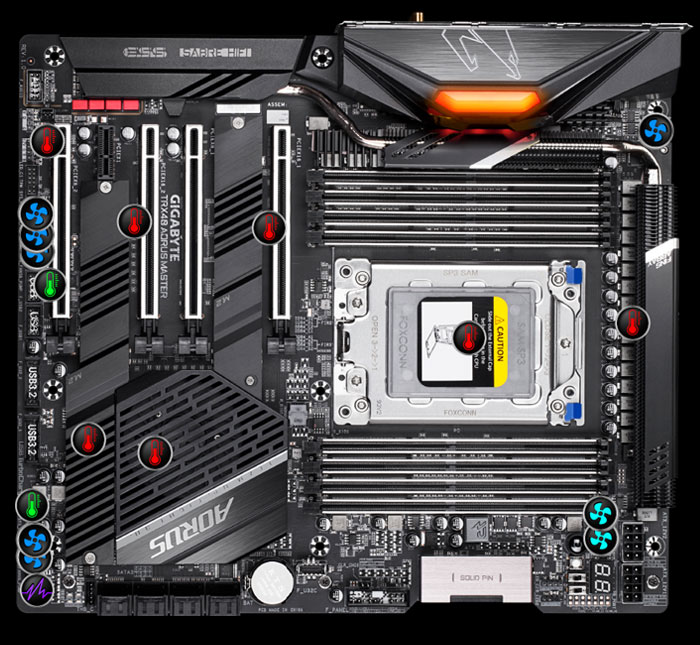

Fan
Headers
External
Fan / Water Pump Connectors
Noise
Detection Cable
Internal
Temperature Sensors
External
Temperature Sensors
Temperature Sensors
Hybrid Fan Headers
- 8 Fan / Water Pump Connectors
- 7 Temperature Sensors
- 2 External Temperature Sensors
- 1 Noise Detection Cable
- All Hybrid Fan Headers
- Interoperable Fans and Sensors
- Supports High Current Fans up to 24W(2AX12V) with Over-Current
Protection
- Intuitive UI for Fan Control
Intelligent Fan Control Design
Achieve fan silence. With Fan Stop, map any fan to stop completely when
temperatures drop below a specified threshold. Which fan stops, based on
readings from which sensor, and at what temperatureall of it can be customized
to your liking.

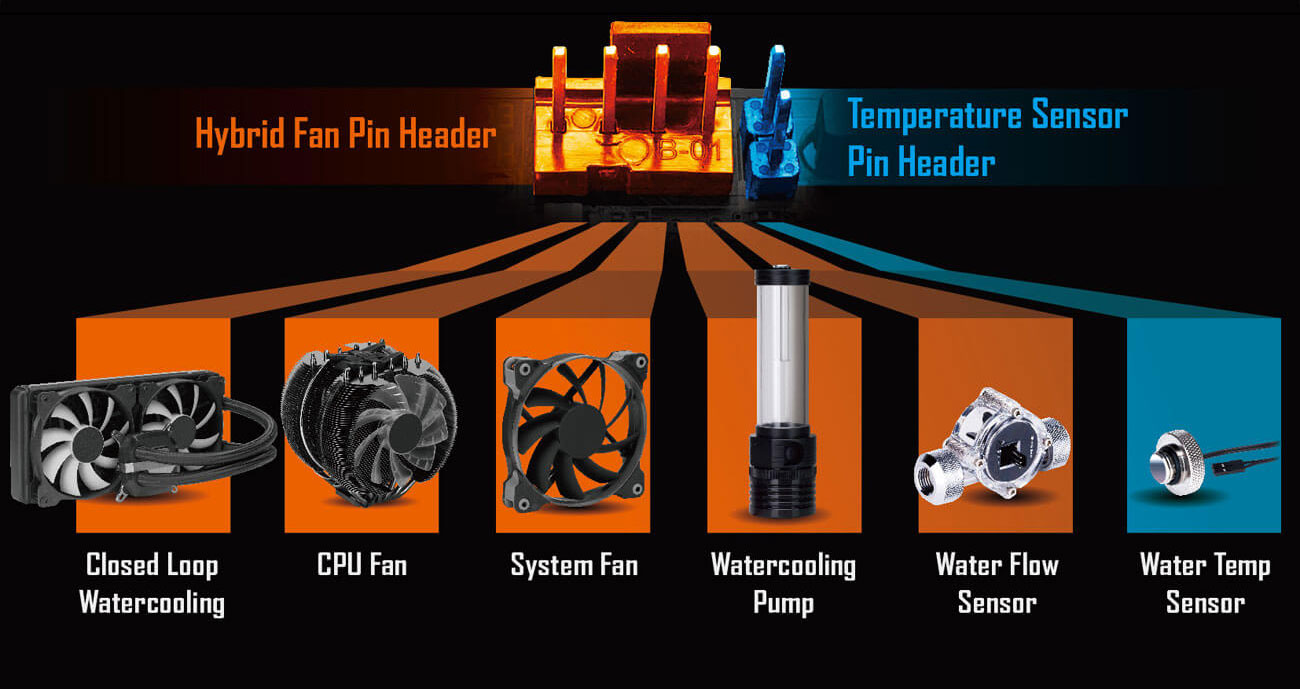

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
up-to-the-second information on flow-rate and water-temperature through the
Hybrid Fan Pin Headers or external thermistor sensorsgiving you absolute mastery
over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or pump with different PWM or Voltage mode.

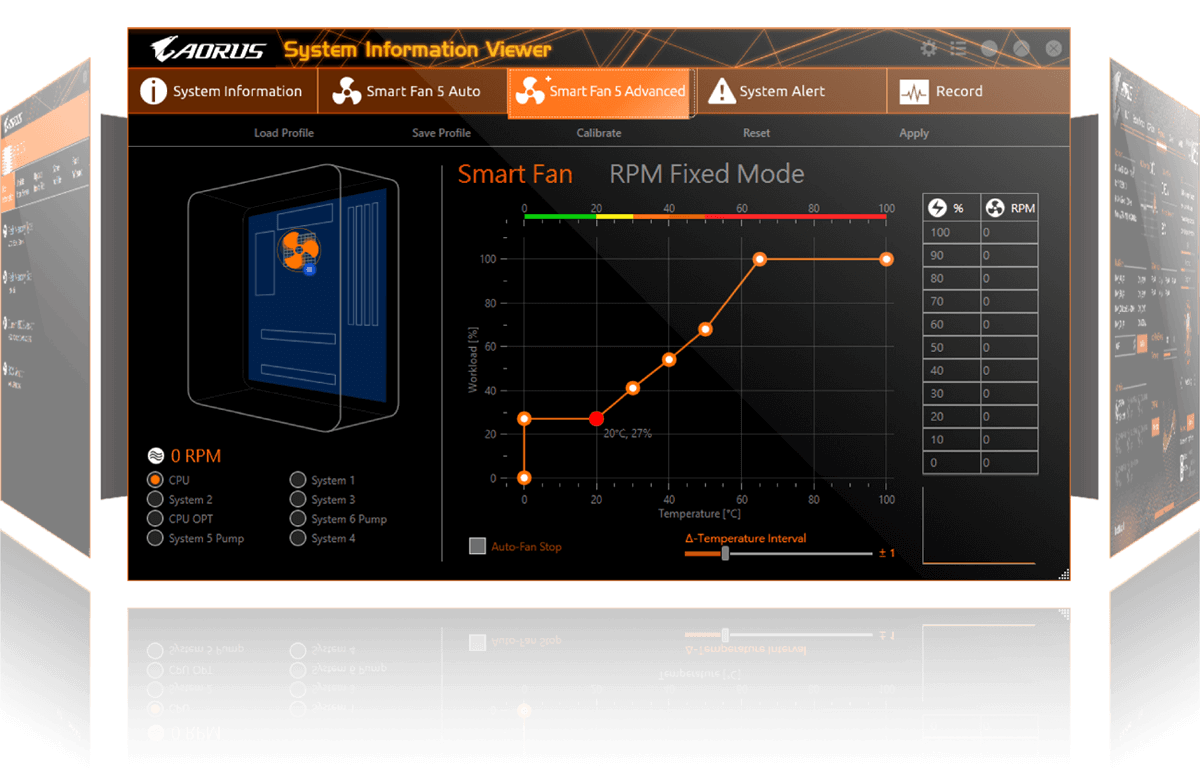

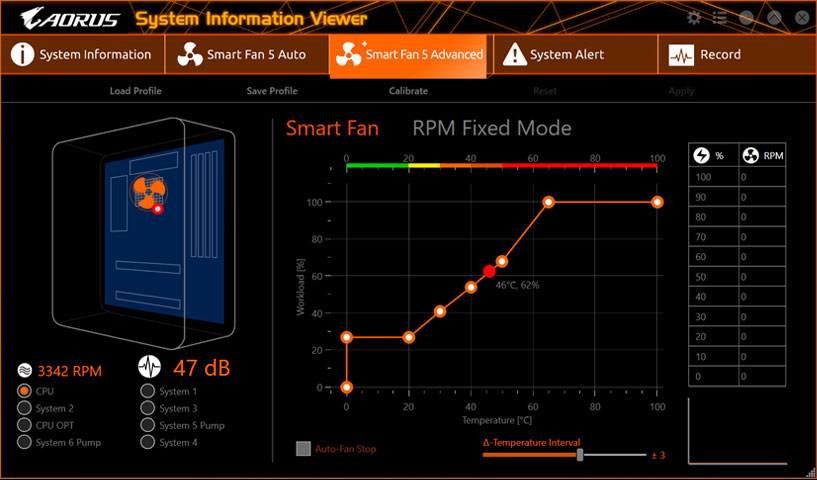

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger
thresholds and corresponding fan speeds.

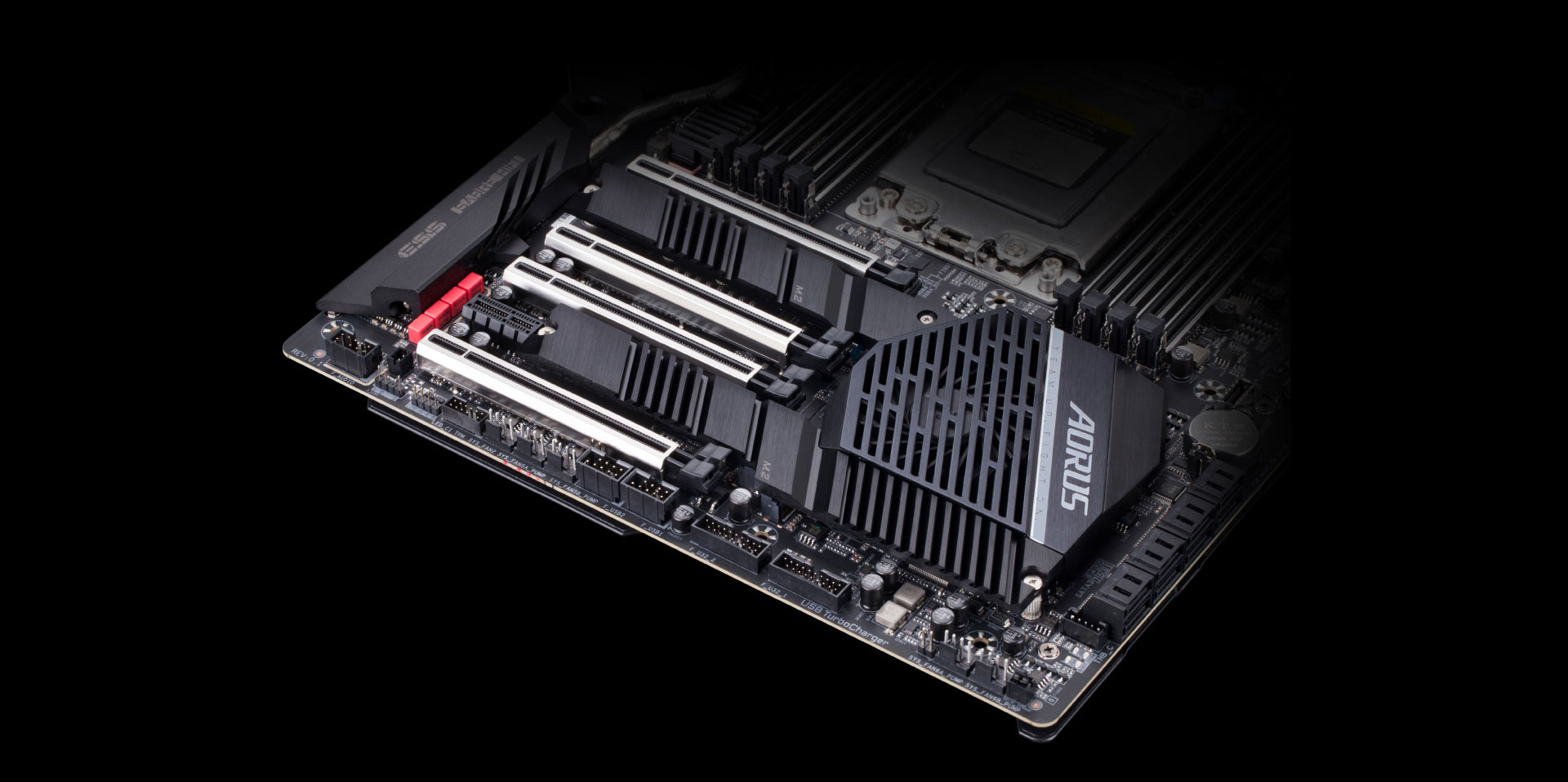

ULTIMATE PERFORMANCE
TRX40 AORUS MASTER pushes the envelope once again by featuring Full PCIe 4.0
Design, delivering highly optimized performance and flexibility demanded for
power users and extreme gaming enthusiasts.

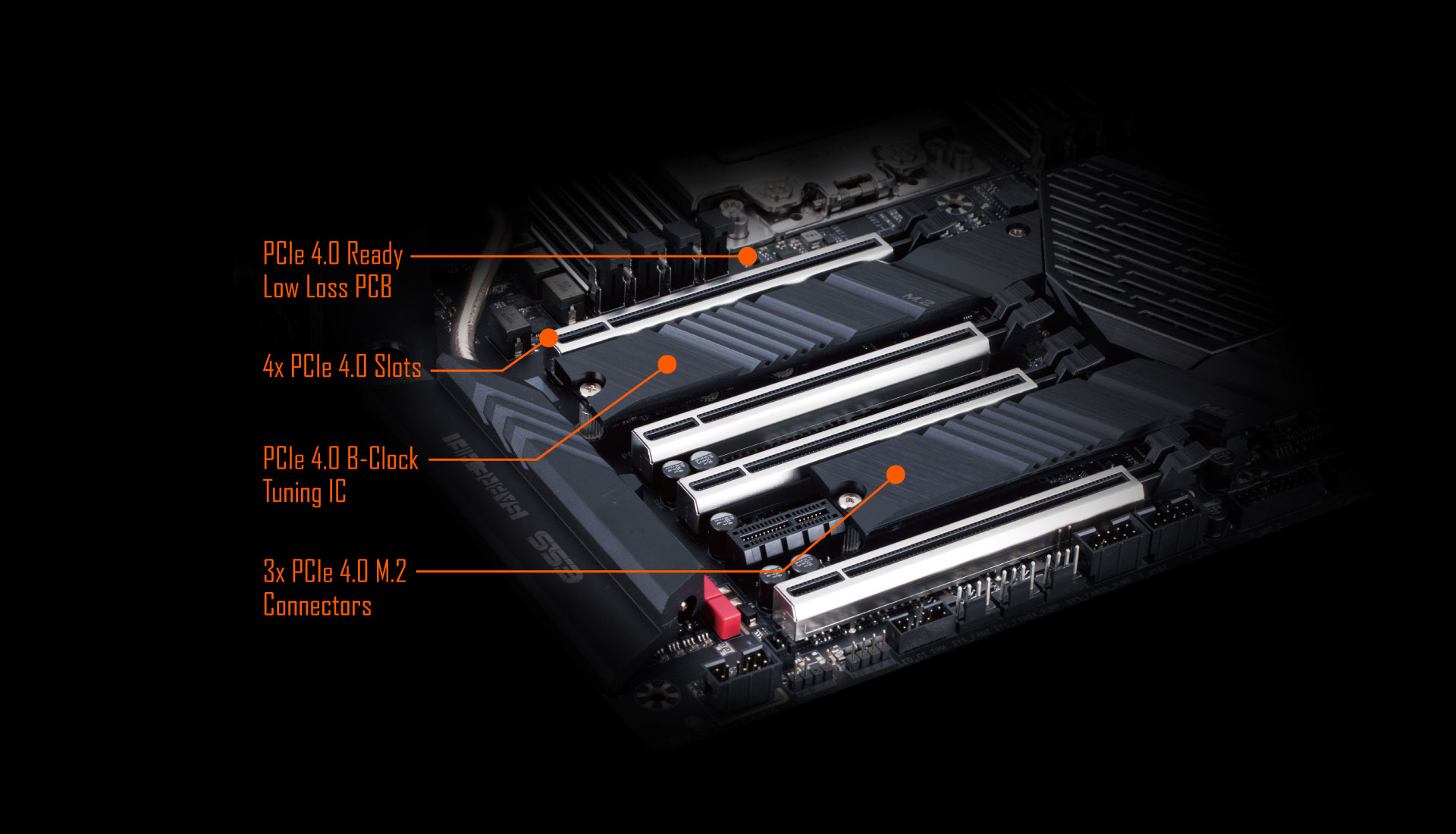

PCIe 4.0 Design
TRX40 AORUS MASTER equips several new components to ensure the best PCIe 4.0
signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches
that are specifically designed for PCIe 4.0. There will be no compromised on
PCIe 4.0 performance.

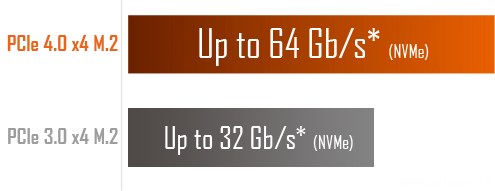

- 2X Theoretic Bandwidth vs. PCIe 3.0
- PCIe 4.0 Switch and Re-driver IC
- New Low Impedance PCIe and M.2 Slot PCIe 4.0 Ready 2X Copper
PCB

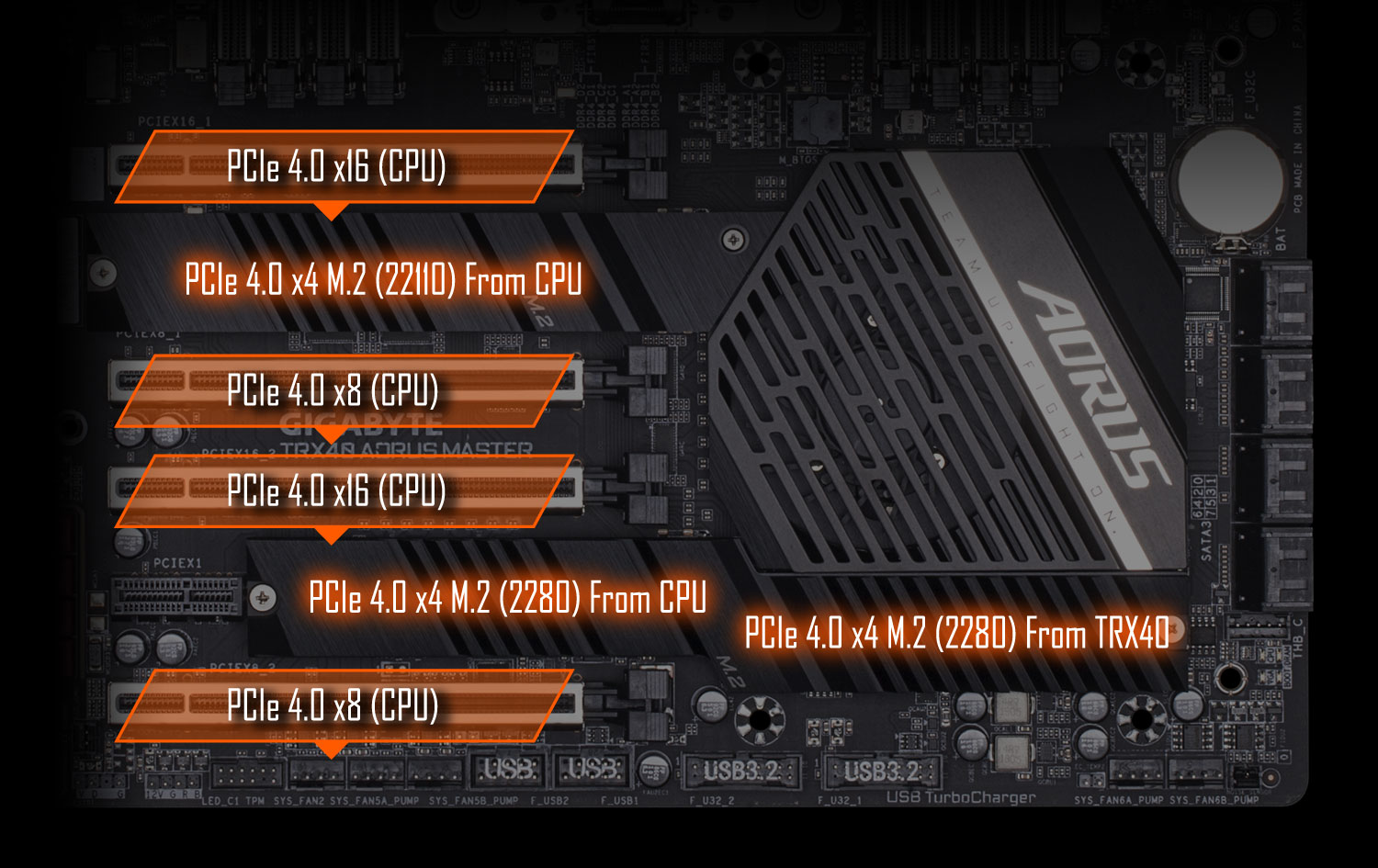

- The Best PCIe 4.0 Signal Quality 4X PCIe 4.0 Slot
(x16/x8/x16/x8)
- 3X PCIe 4.0 M.2 Connectors (Type 22110 & 2280)
Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper
compatibility with profiles up to 4400MHz and beyond. All users need to do to
attain this performance boost is to ensure that their memory module is XMP
capable and that the XMP function is activated and enabled on their AORUS
motherboard.
Broad DDR4 Compatibility with Support List of 1000+ DDR4
Validated
AORUS partners very closely with memory vendors from around the world to
ensure that modules offered by popular memory brands are compatible with AORUS
Motherboards. AORUS has verified over 1000+ different modules to ensure
performance in a AORUS built system.

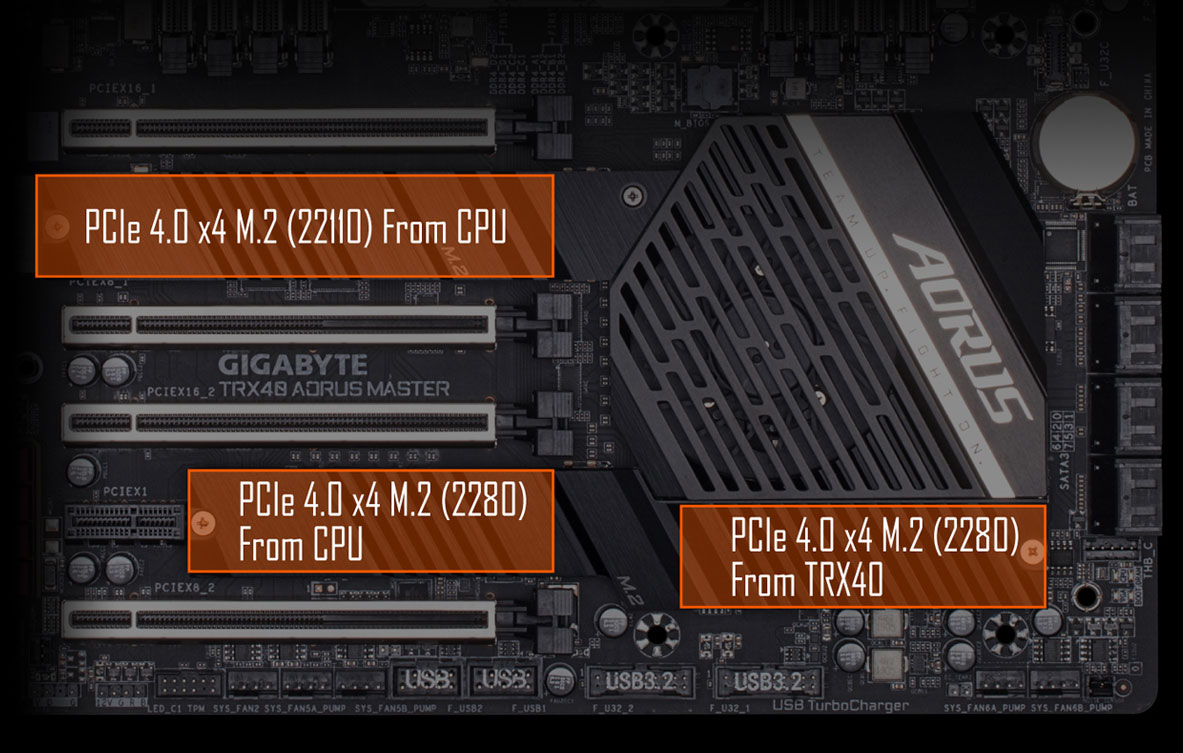

3X M.2 PCIe 4.0x4
Triple PCIe 4.0 M.2 Connectors with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to
enthusiasts who want to maximize their systems’ potential.
Triple PCIe 4.0 SSD in RAID 0
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
AORUS TRX40 motherboards offer the industrys best compatibility in terms of
NVMe storage for users who demand high capacity and seek the best performance.
AORUS' unique design can be configured in RAID for record speeds of up to 12460
MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date
with the latest technology. TRX40 AORUS MASTER provides all next generation
network, storage, and WIFI connectivity to keep you up to speed.

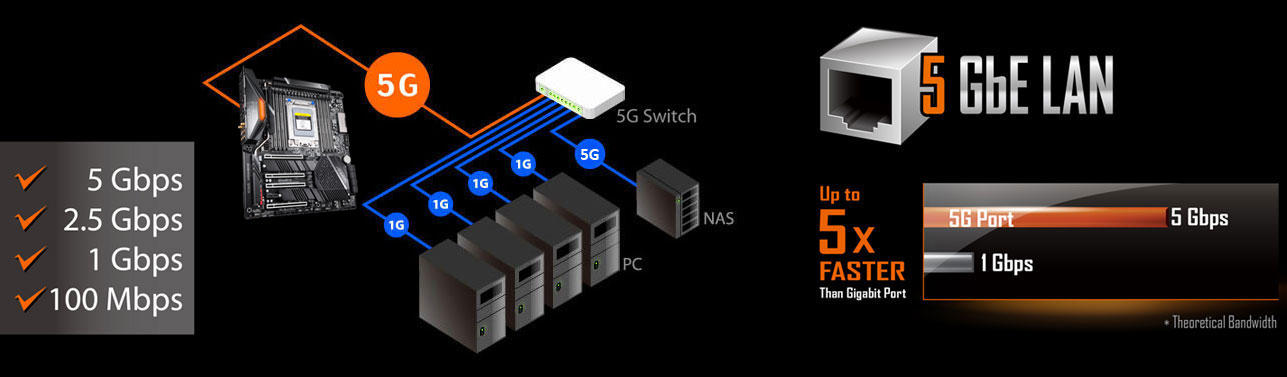

AQUANTIA 5GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA AQC111C is a high-performance, backward compatible with
5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able
to provide up to 5 GbE network connectivity, with 5 times faster transfer speeds
compared to general 1GbE networking and is perfectly designed for media centers,
workstations and gamers.

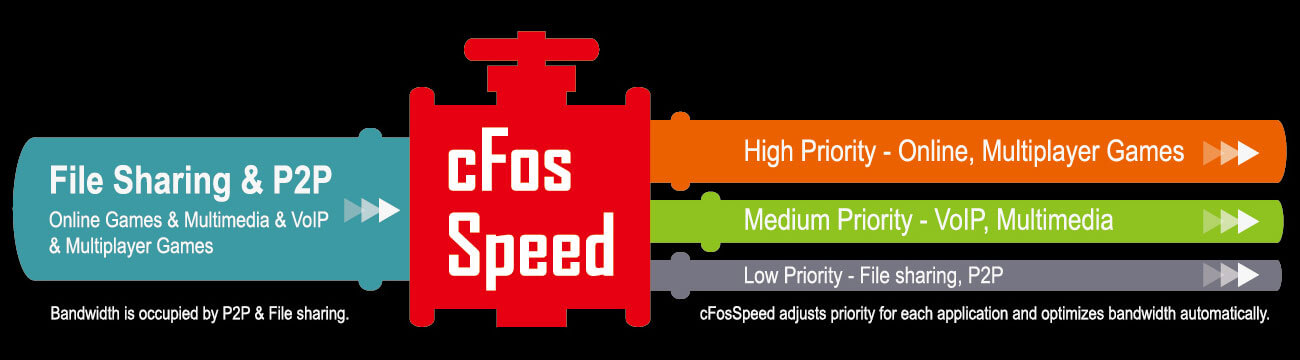

Intel GbE LAN with cFosSpeed Internet Accelerator
Networking
Intel GbE LAN features cFosSpeed, a network traffic management application
which helps to improve network latency and maintain low ping times to deliver
better responsiveness in crowded LAN environments.

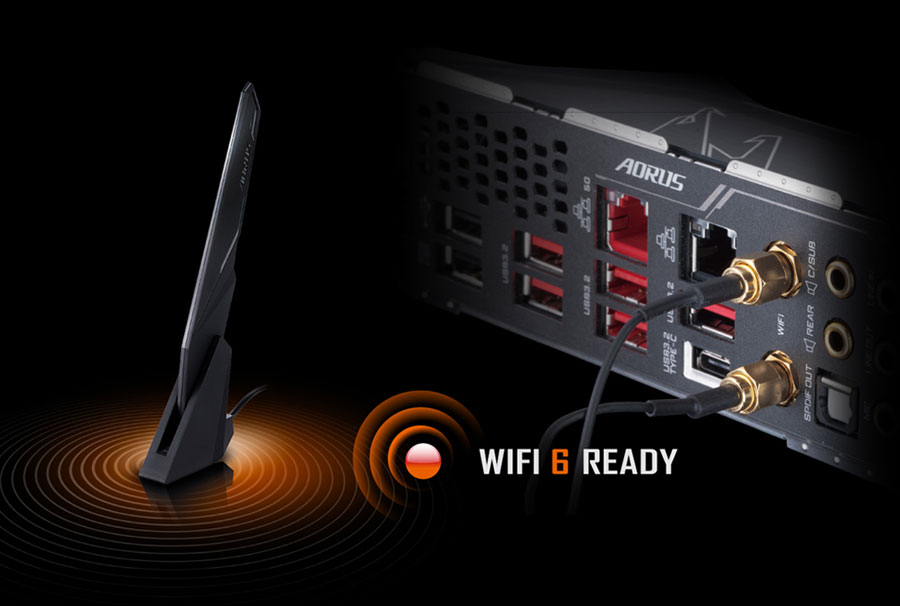

New Introduce Intel WiFi 6 802.11ax + BT 5
Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless
performance, provides smooth video streaming, better gaming experience, few
dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X
range over BT 4.2 and with faster transmission.
Benefit of WiFi 6:
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area
with lots of devices
- Network efficiency increase for better user experience

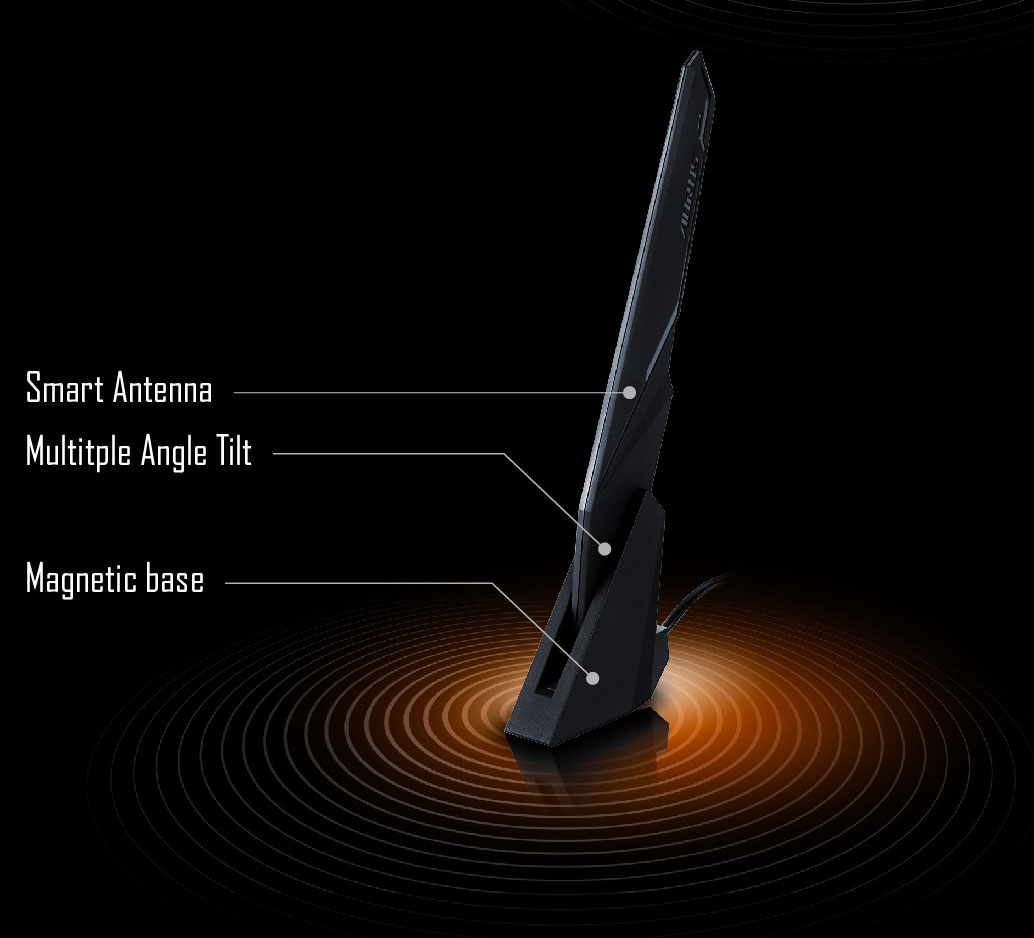

AORUS Antenna Supports Dual Band with Better WIFI
Signal
- All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz. better
signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal
transmitting
- Multiple angle tilt and magnetic base for the best signal strength
direction and location

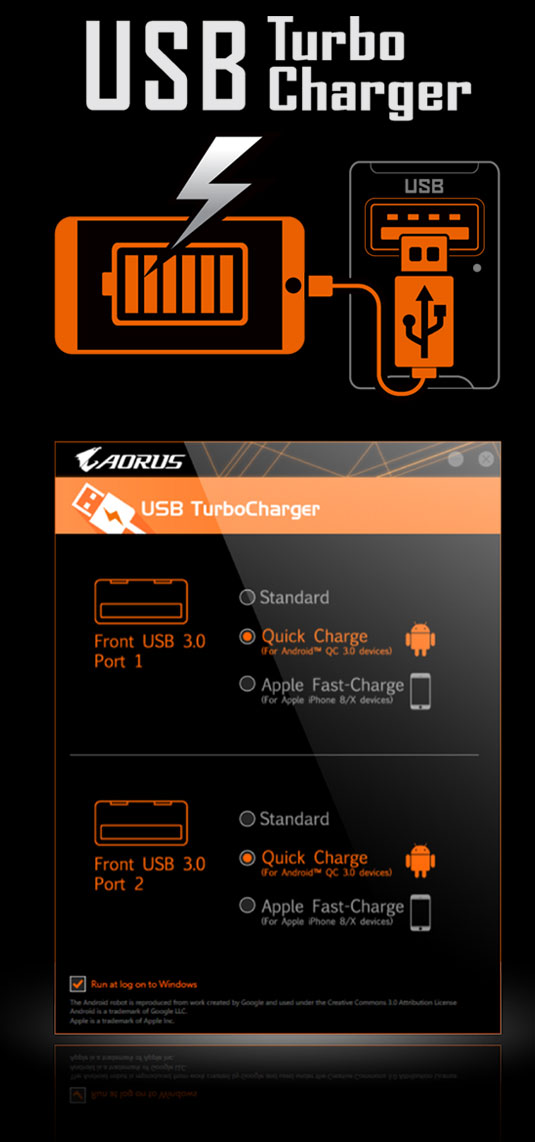

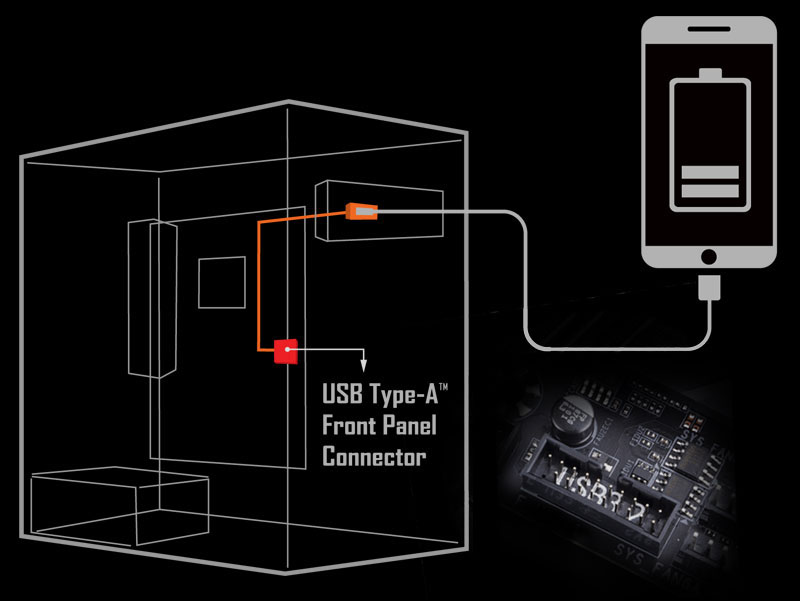

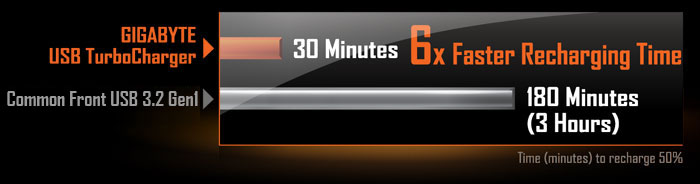

USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge
their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By
connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard, USB
TurboCharger can recharge both Android devices with QC 3.0 and Apple devices
with Apple Fast-Charge function.
AORUS AESTHETICS

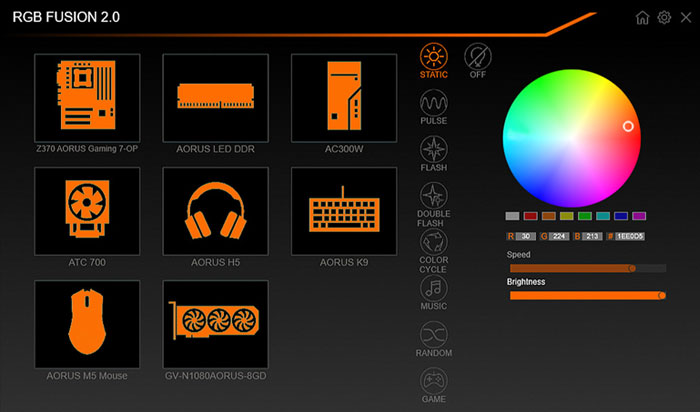

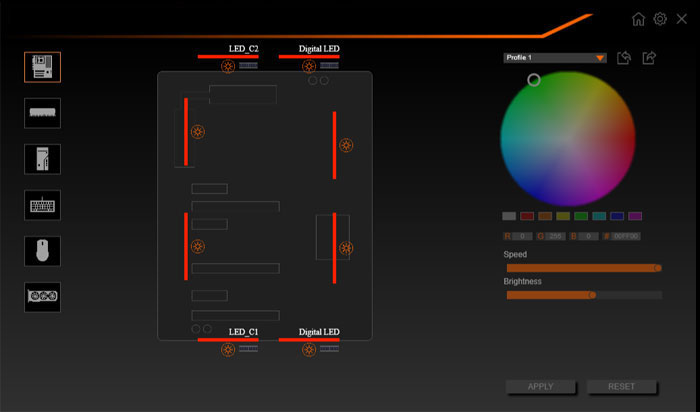

TRX40 AORUS MASTER features RGB FUSION 2.0 and offers users the option to
control onboard, external light strips, and/or AORUS devices with RGB/
Addressable RGB LEDs to make their PC more unique and stylish.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their
PC to represent their lifestyle. With full RGB support and a redesigned RGB
Fusion 2.0 application, the user has complete control over the LEDs which
surround the motherboard.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you
a better solution for customizing the lighting effects across all supported
devices. From motherboards, graphics cards to the peripheral products, you can
personalize your gaming rig with your own style and show off your build by
sharing the profiles. In addition, the new gaming mode makes the lighting
effects interactive with selected games to bring you the most immersive gaming
experience.
Sync with one click
Individual control as you wish
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy.
With the GIGABYTE RGB Fusion mobile app users can watch as they control the
lighting within their gaming PC. This gives users ease of access as they try and
adjust colors and speeds for different modes, all this can be achieved away from
the keyboard and monitor of their PC.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience.
TRX40 AORUS MASTER is equipped with several audiophile level components such as
ESS SABRE DAC and WIMA capacitors to provide a superb audio
experience.
Recreates an authentic, spatially accurate 3D audio experience for gaming
over any headphones or speakers. Supports channel-based, scene based and
object-based audio. Provides out-of-the-box calibration for a range of
headphones and speakers. Provides post-processing enhancements and device level
tuning for DTScodecs.
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most
believable, 3D audio experience for games. Immersion through DTS Headphone:X
means in the sonic landscape, stationary and moving sounds can be heard from
above, below or around the listener. Sounds pass around the listener with
amazing externalization and accurate localization.
ULTRA DURABLE
GIGABYTE is reputable for its durability and high quality manufacturing
process. Needless to say, we use the best components we can find on TRX40 AORUS
MASTER and reinforce every slot to make each of them solid and durable.
Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE
reinforces the PCIe connectors to provide the extra strength required to support
heavy graphics cards.
Ultra Durable Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against
PCB distortion/twisting and plate bending, in addition to preventing any
possible ESD interference.
Solid Pin Power Connectors
TRX40 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin +
8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics
card.
With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory and
graphics card nor enter the BIOS menu to flash the BIOS. Just download and save
a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the
dedicated Q-Flash Plus button and youre good to go!
GIGABYTE Patented Double Locking
Bracket
GIGABYTE Patented DualBIOS Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive
technology from GIGABYTE that protects arguably one of your PC's most crucial
components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a
'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to
virus, hardware malfunction, improper OC settings or power failure during the
update process.
Diagnostic LEDs Hardware Troubleshooting at a
Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is
occurring, allowing users to quickly diagnose which major component
(CPU/DDR/VGA/HDD) is malfunctioning so they may take action
promptly.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as
space is restricted and indicators are tiny. With the G Connector, you can
connect all the FP cables at once, simplifying the process of building your next
PC and saving you frustration.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. TRX40 AORUS MASTER
bundled several useful and intuitive software to help users to control every
aspect of motherboard.
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including
CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick
access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2
interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall
settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve
graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and
drivers, you can choose any utility you want to install from APP CENTER and keep
updated with the latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users
to fine-tune their system settings or adjust system and memory clocks and
voltages in a Windows environment. With Smart Quick Boost, one click is all it
takes to automatically overclock your system, giving an added performance boost
when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you
access to your current system status. Monitor components such as the clocks and
processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your system's behavior; these are the possibilities of
the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
Specifications
|
CPU |
AMD Socket
sTRX4: |
|
1. Support 3rd
Generation AMD Ryzen Threadripper processors |
|
(Please refer "CPU
Support List" for more information.) |
|
Chipset |
1. AMD
TRX40 |
|
Memory |
1. 8 x DDR4 DIMM
sockets supporting up to 256 GB (32 GB single DIMM capacity) of system
memory |
|
2. Quad Channel memory
architecture |
|
3. Support for DDR4
4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /
3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory
modules |
|
4. Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules |
|
5. Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
6. Support for Extreme
Memory Profile (XMP) memory modules |
|
(Please refer "Memory
Support List" for more information.) |
|
Audio |
1. 1 x
Realtek ALC4050H codec+1 x Realtek ALC1220-VB codec (Rear
audio) |
|
2. 1 x
Realtek ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front
audio) |
|
3. Support for
DTS:X Ultra |
|
4. High Definition
Audio |
|
5.
2/4/5.1/7.1-channel |
|
6. Support for S/PDIF
Out |
|
LAN |
1. 1 x Aquantia 5GbE
LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN) |
|
2. 1 x Intel GbE
LAN chip (10/100/1000 Mbit) (LAN) |
|
Wireless
Communication module |
Intel Wi-Fi 6
AX200 |
|
1. Wi-Fi
802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
|
2. BLUETOOTH
5.0 |
|
3. Support for 11ax
160MHz wireless standard and up to 2.4 Gbps data rate |
|
* Actual data rate may
vary depending on environment and equipment. |
|
Expansion
Slots |
1. 2 x PCI Express x16
slots, running at x16 (PCIEX16_1, PCIEX16_2) |
|
2. 2 x PCI Express x16
slots, running at x8 (PCIEX8_1, PCIEX8_2) |
|
3. 1 x PCI Express x1
slot |
|
(All of the PCI Express
slots conform to PCI Express 4.0 standard.) |
|
Multi-Graphics
Technology |
1. Support for
NVIDIA Quad-GPU SLI and 3-Way/2-Way NVIDIA SLI
technologies |
|
2. Support for AMD
Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire
technologies |
|
Storage
Interface |
Integrated in the
CPU: |
|
1. 1 x M.2 connector
(Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD
support) (M2M) |
|
2. 1 x M.2 connector
(Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support)
(M2Q) |
|
Integrated in the
Chipset: |
|
1. 1 x M.2 connector
(Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support)
(M2P) |
|
2. 8 x SATA 6Gb/s
connectors |
|
Support for RAID 0,
RAID 1, and RAID 10 |
|
USB |
Integrated in the
CPU: |
|
1. 4 x USB 3.2 Gen 2
Type-A ports (red) on the back panel |
|
Integrated in the
Chipset: |
|
1. 1 x USB Type-C port
on the back panel, with USB 3.2 Gen 2 support |
|
2. 1 x USB 3.2 Gen 2
Type-A port (red) on the back panel |
|
3. 1 x USB Type-C port
with USB 3.2 Gen 2 support, available through the internal USB
header |
|
4. 4 x USB 3.2 Gen 1
ports available through the internal USB headers |
|
Chipset+2 USB 2.0
Hubs: |
|
1. 6 x USB 2.0/1.1
ports (2 ports on the back panel, 4 ports available through the internal
USB headers) |
|
Internal I/O
Connectors |
1. 1 x 24-pin ATX main
power connector |
|
2. 2 x 8-pin ATX 12V
power connectors |
|
3. 1 x CPU fan
header |
|
4. 1 x water cooling
CPU fan header |
|
5. 2 x system fan
headers |
|
6. 4 x system fan/water
cooling pump headers |
|
7. 2 x addressable LED
strip headers |
|
8. 2 x RGB LED strip
headers |
|
9. 3 x M.2 Socket 3
connectors |
|
10. 8 x SATA 6Gb/s
connectors |
|
11. 1 x front panel
header |
|
12. 1 x front panel
audio header |
|
13. 1 x USB Type-C
port, with USB 3.2 Gen 2 support |
|
14. 2 x USB 3.2 Gen 1
headers |
|
15. 2 x USB 2.0/1.1
headers |
|
16. 1 x noise detection
header |
|
17. 1 x GIGABYTE add-in
card connector |
|
18. 1 x Trusted
Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module
only) |
|
19. 1 x power
button |
|
20. 1 x reset
button |
|
21. 2 x BIOS
switches |
|
22. 2 x temperature
sensor headers |
|
23. 1 x Clear CMOS
jumper |
|
24. Voltage Measurement
Points |
|
Back Panel
Connectors |
1. 1 x Q-Flash Plus
button |
|
2. 1 x Clear CMOS
button |
|
3. 2 x SMA antenna
connectors (2T2R) |
|
4. 1 x USB Type-C port,
with USB 3.1 Gen 2 support |
|
5. 5 x USB 3.2 Gen 2
Type-A ports (red) |
|
6. 2 x USB 2.0/1.1
ports |
|
7. 2 x RJ-45
ports |
|
8. 1 x optical S/PDIF
Out connector |
|
9. 5 x audio
jacks |
|
I/O
Controller |
1. iTE I/O
Controller Chip |
|
H/W
Monitoring |
1. Voltage
detection |
|
2. Temperature
detection |
|
3. Fan speed
detection |
|
4. Water cooling flow
rate detection |
|
5. Overheating
warning |
|
6. Fan fail
warning |
|
7. Fan speed
control |
|
* Whether the fan
(pump) speed control function is supported will depend on the fan (pump)
you install. |
|
8. Noise
detection |
|
BIOS |
1. 2 x 128 Mbit
flash |
|
2. Use of licensed AMI
UEFI BIOS |
|
3. Support for
DualBIOS |
|
4. PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique
Features |
1. Support for APP
Center |
|
* Available
applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard
specifications. |
|
@BIOS |
|
AutoGreen |
|
Cloud Station
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
RGB
Fusion |
|
Smart
Backup |
|
Smart
Keyboard |
|
Smart
Survey |
|
System Information
Viewer |
|
USB
Blocker |
|
USB
TurboCharger |
|
2. Support for Q-Flash
Plus |
|
3. Support for
Q-Flash |
|
4. Support for Xpress
Install |
|
Bundled
Software |
1. Norton Internet
Security (OEM version) |
|
2.
cFosSpeed |
|
3. XSplit Gamecaster +
Broadcaster (12 months license) |
|
Operating
System |
1. Support for Windows
10 64-bit |
|
Form
Factor |
1. E-ATX Form Factor;
30.5cm x 26.9cm |
|
Remark |
1. Due to different
Linux support condition provided by chipset vendors, please download Linux
driver from chipset vendors' website or 3rd party
website. |
|
2. Most
hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE website. |
