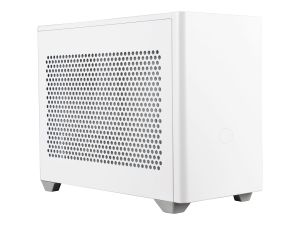

Coolermaster Masterbox NR200 Case - White



Overview

BIG FEATURES, SMALL SIZE

  • Unrestricted Cooling Potential
  • Triple-slot GPU support
  • Easy, Tool-free access
  • 360 Degree Accessibility
  • Multiple motherboard support options
  • Out-of-the-box Custom Cooling Support
  • High quality materials

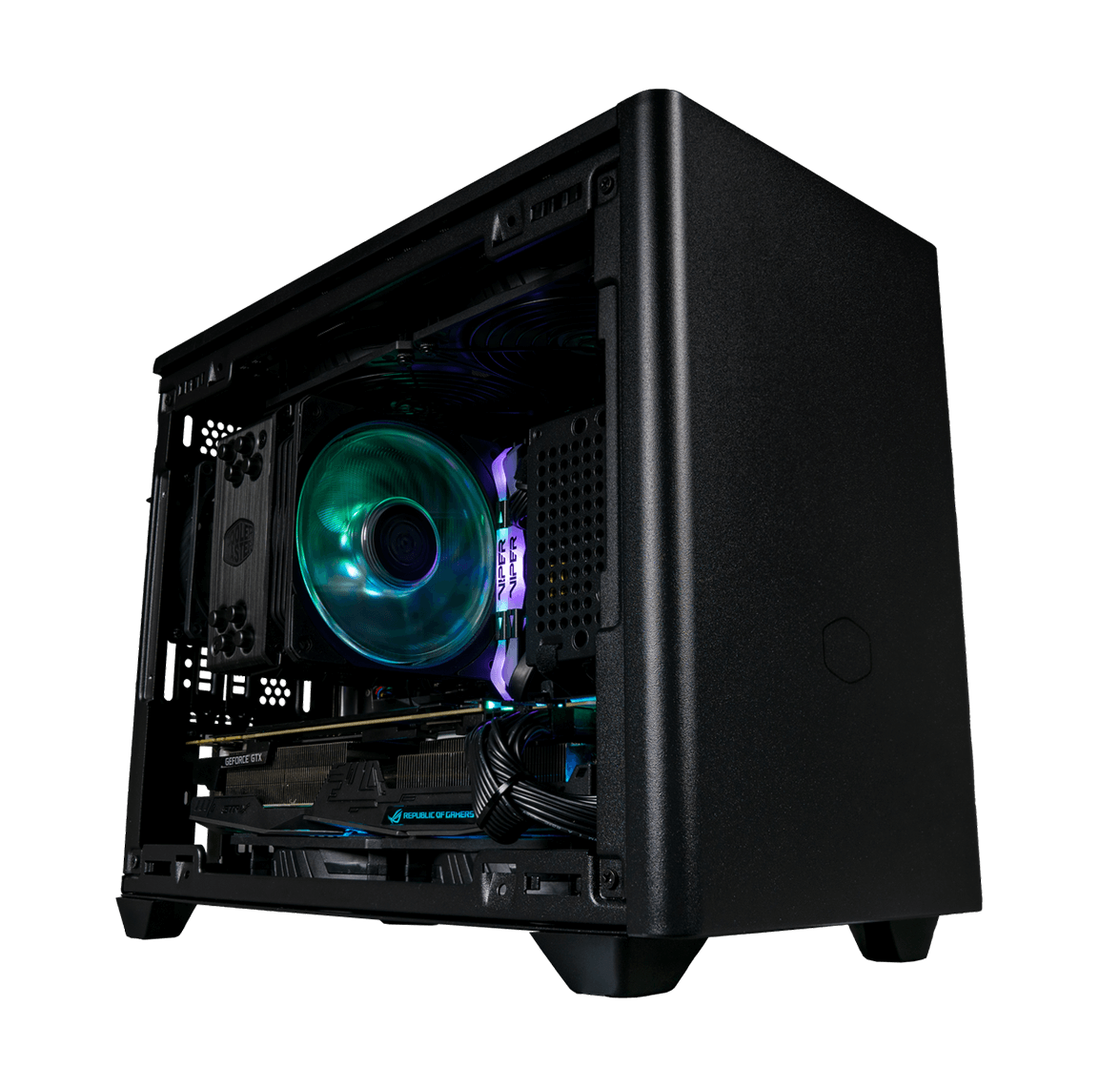

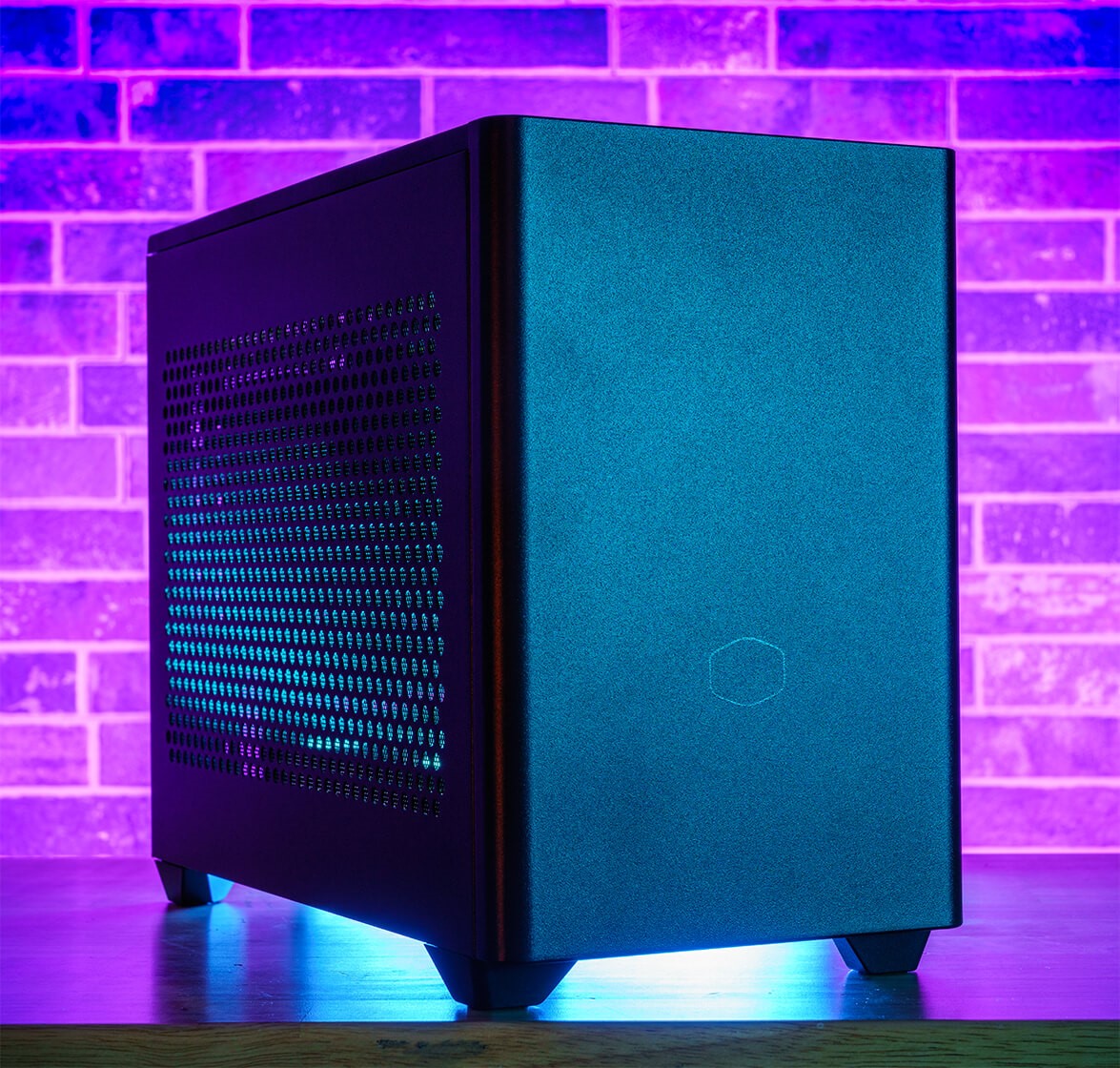

A core case taking less space

A CORE CASE TAKING LESS SPACE

The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency.

Open ventilation and multiple fan mounts bring airflow where its needed, while generous watercooling and aircooling clearances allow the fitment of coolers that can take advantage of all the airflow. Ample clearance for long, triple-slot graphics cards means no sacrifices are needed in GPU power to take advantage of small form factor sizing. The frame is wrapped in a sleek and tasteful steel chassis that blends in perfectly on top of desk.

Unrestricted Cooling Potential

UNRESTRICTED COOLING POTENTIAL

The NR200 can house up to 7 fans in total for every cooling configuration imaginable. Five panels are flanked with ventilation for unrestricted airflow. One 92mm and one 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware cant be held back.

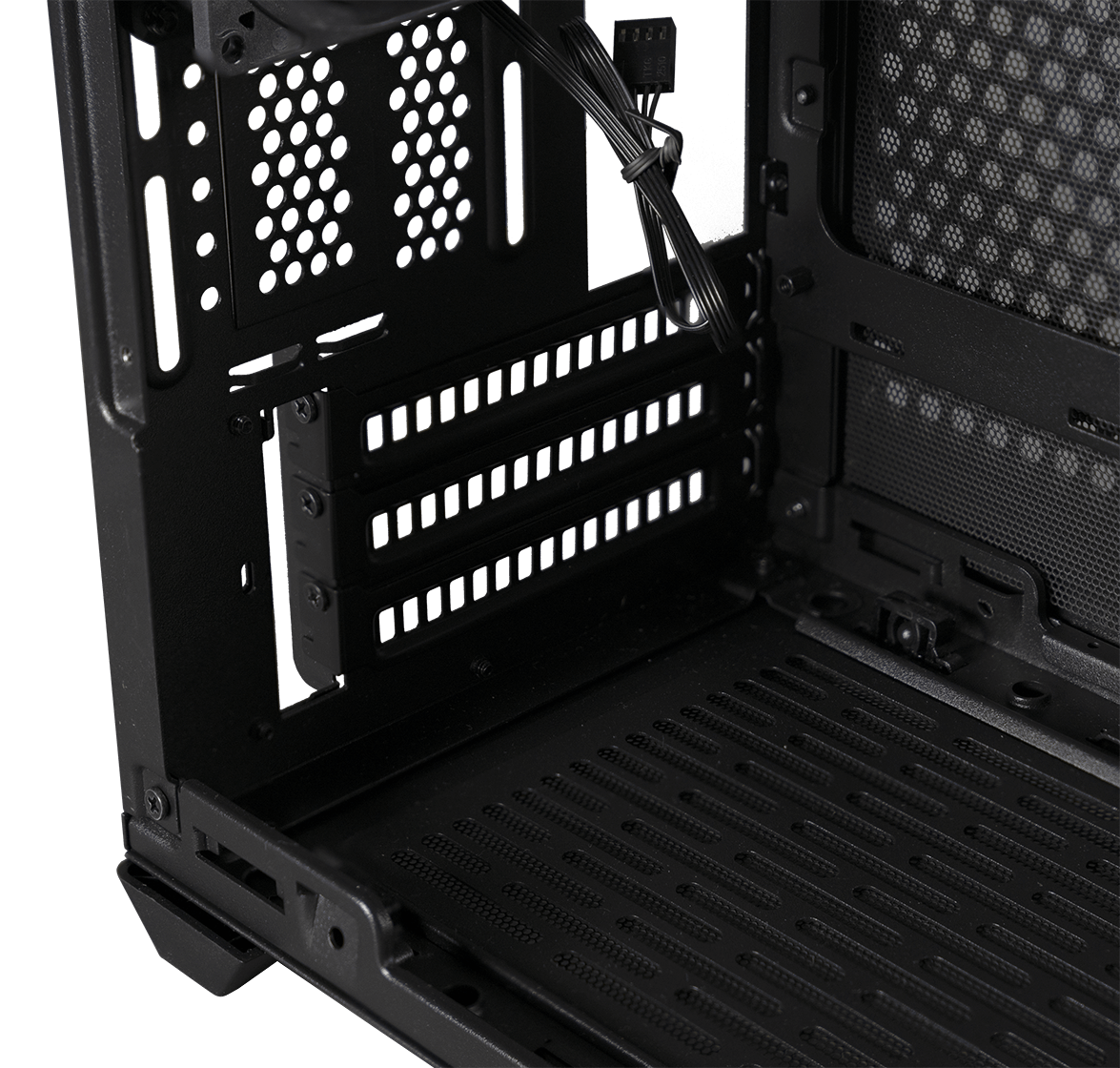

Triple-slot GPU support

TRIPLE-SLOT GPU SUPPORT

Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of high-end graphics cards. The rear ventilation contains PCI slots to allow for vertical GPU mounting to better showcase the graphics card (PCI riser cable sold separately).

Easy, Tool-free access

EASY, TOOL-FREE ACCESS

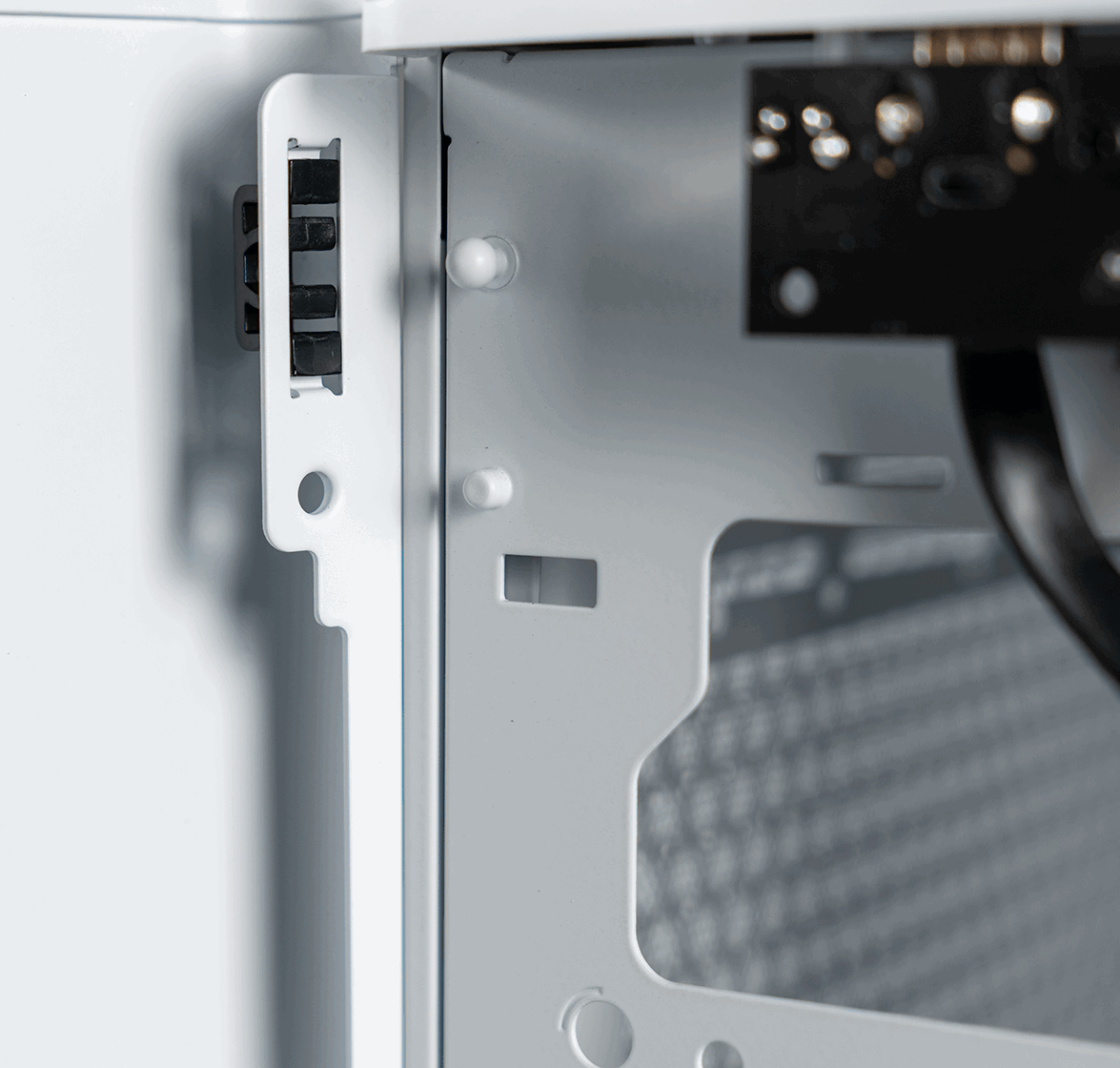

All external panels and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

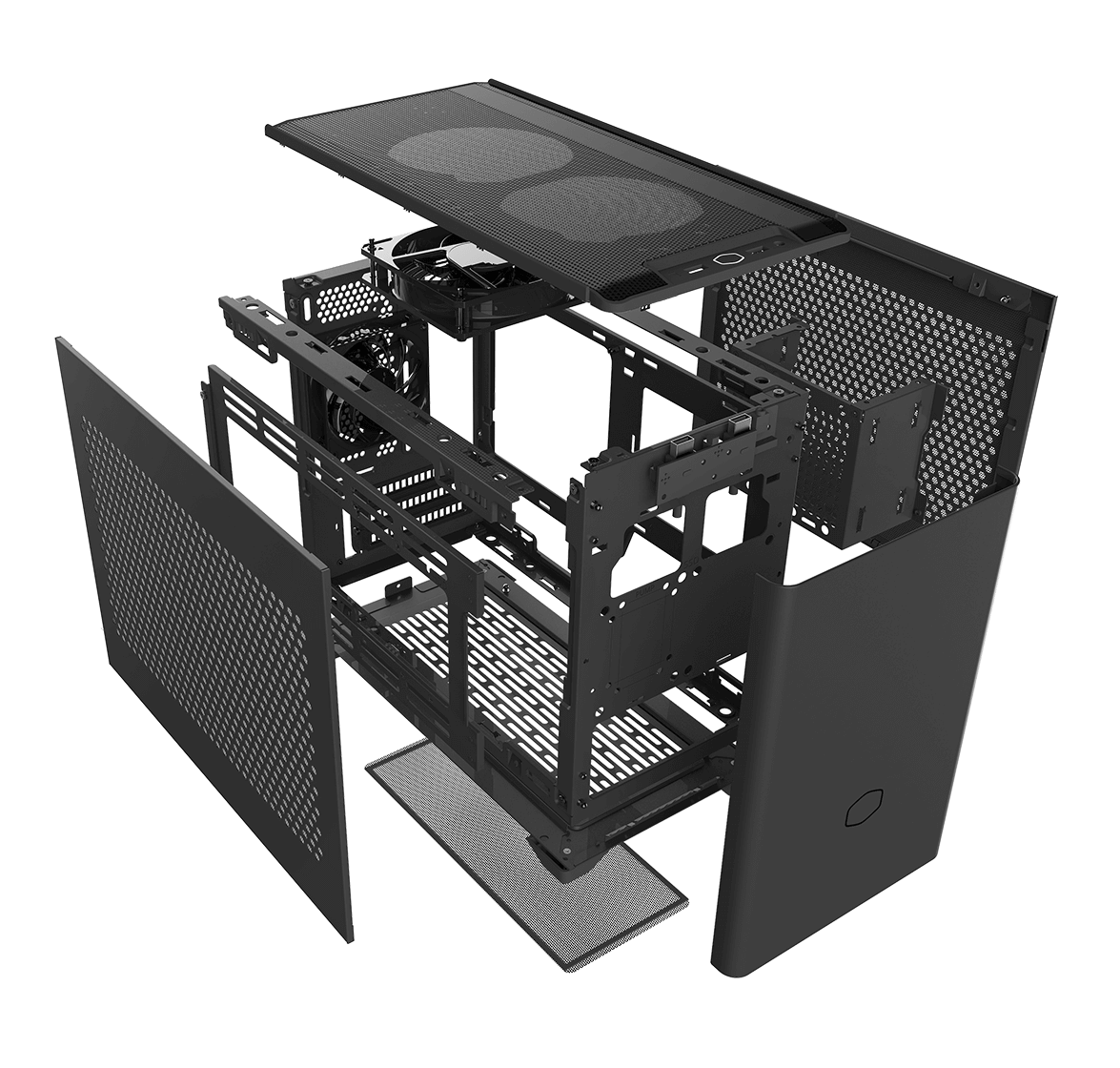

360 Degree Accessibility

360 DEGREE ACCESSIBILITY

Every panel and frame part of the NR200 frame can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

High quality materials

HIGH QUALITY MATERIALS

Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions.

Out-of-the-box Custom Cooling Support

OUT-OF-THE-BOX CUSTOM COOLING SUPPORT

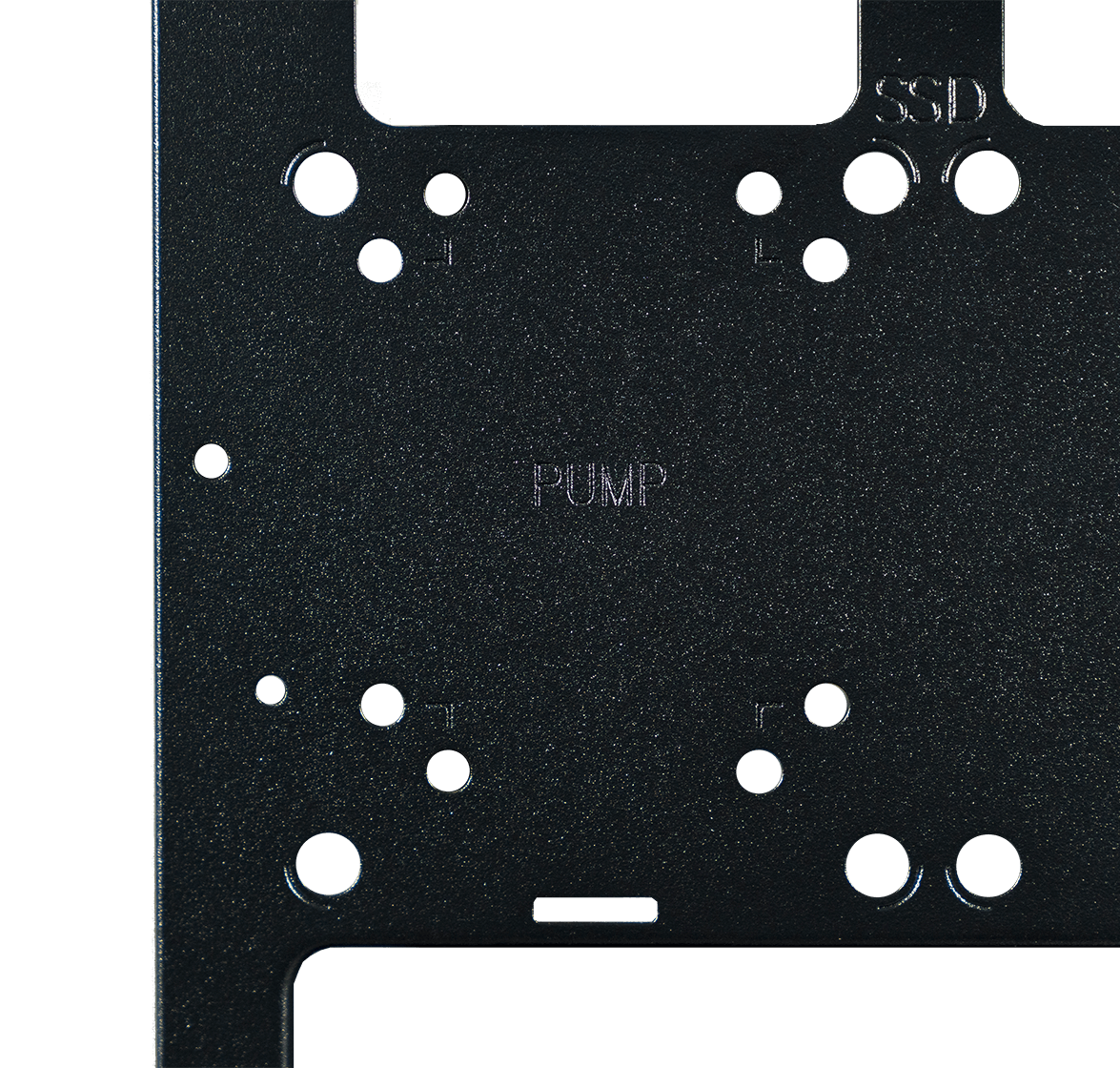

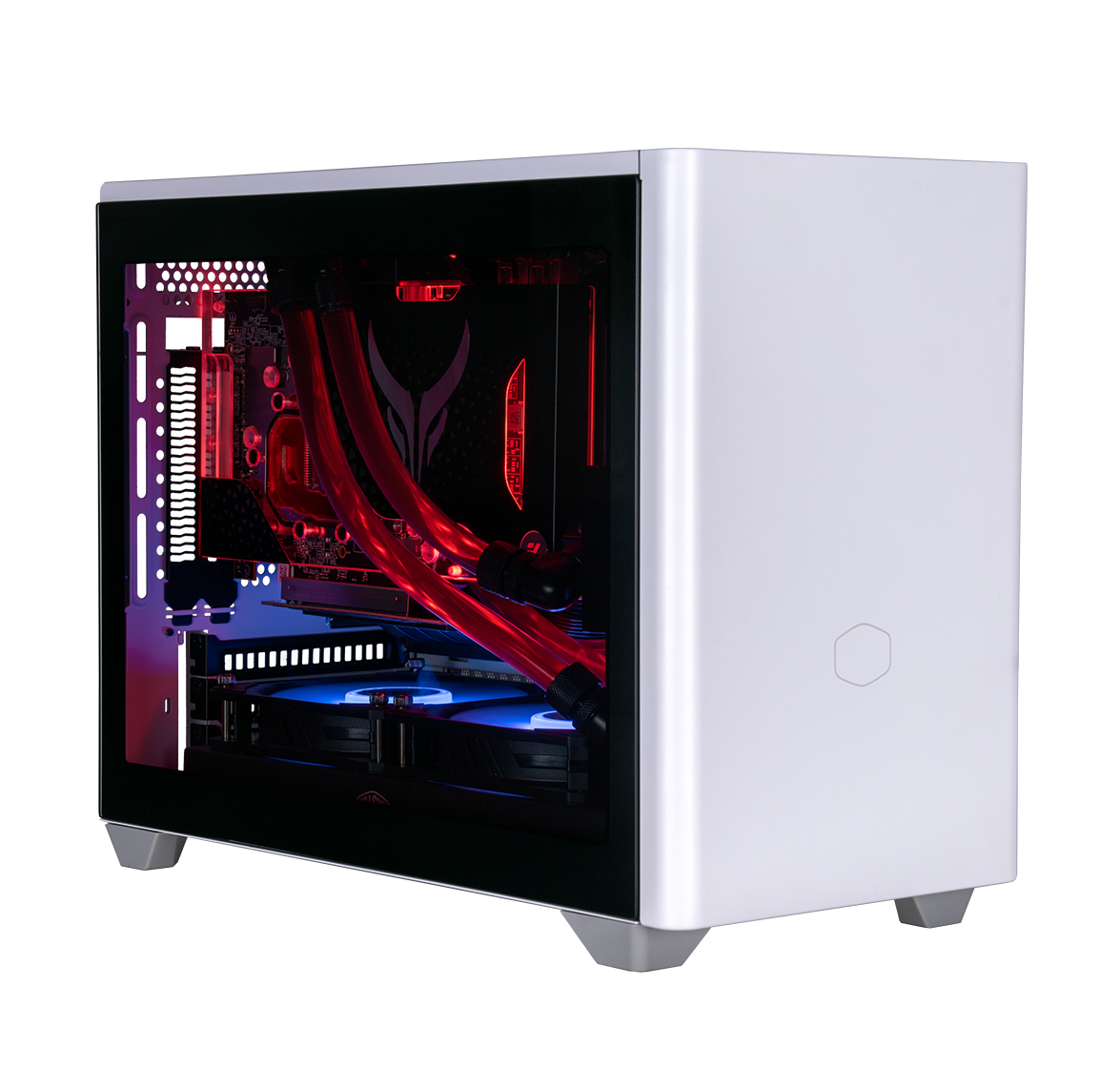

Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful custom water-cooled builds inside a compact enclosure.

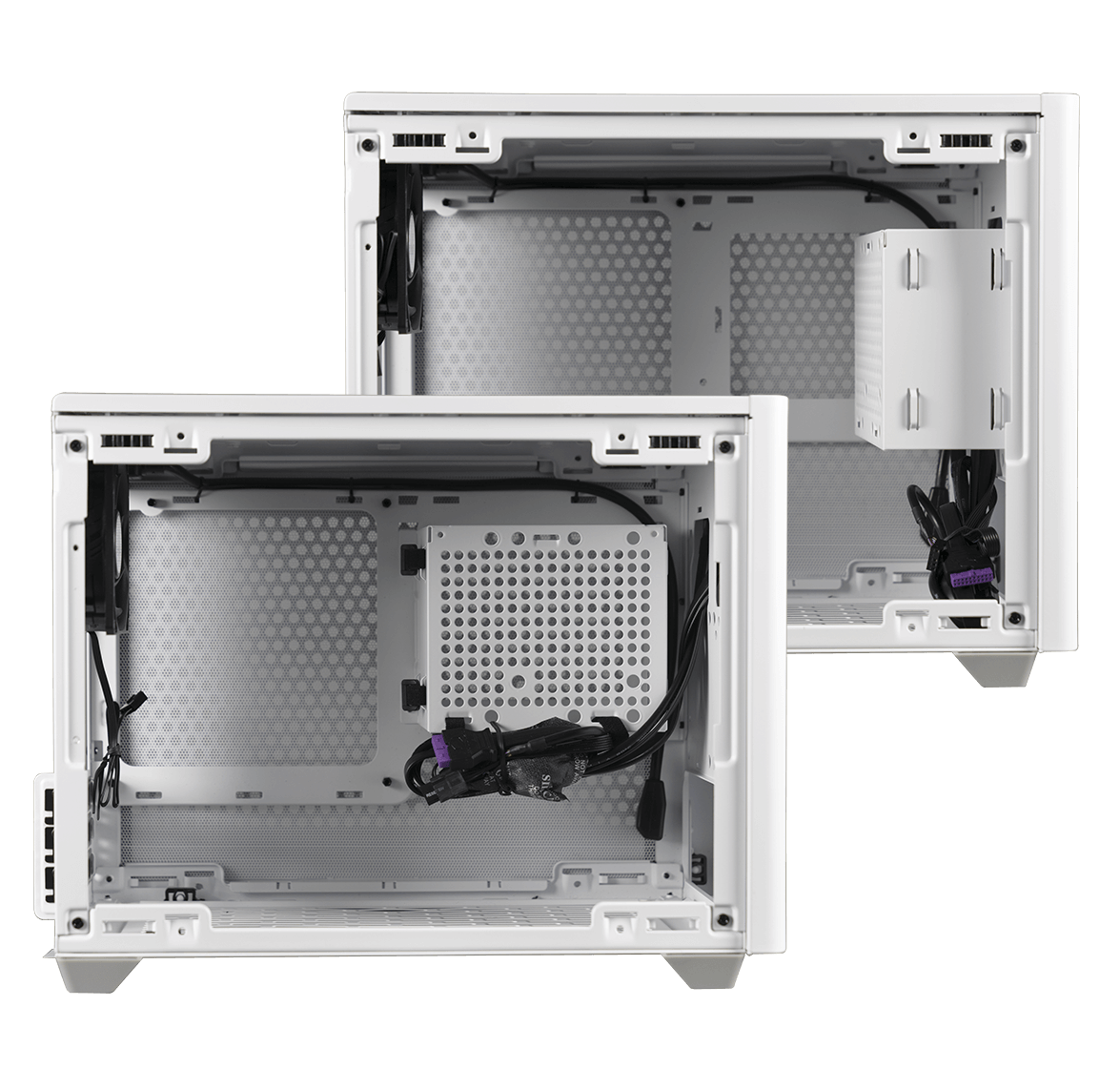

Multiple motherboard support options

MULTIPLE MOTHERBOARD SUPPORT OPTIONS

Compatible with Mini-ITX and Mini DTX. The PSU can be front mounted for extra motherboard clearance with a maximum size of 244 x 226 mm.

Looking to show off more?

LOOKING TO SHOW OFF MORE?

  • Added tempered glass panel
  • Custom length riser cable
  • 2x 120mm SickleFlow fans instead of 1x 92mm + 1x 120mm fan

Customization

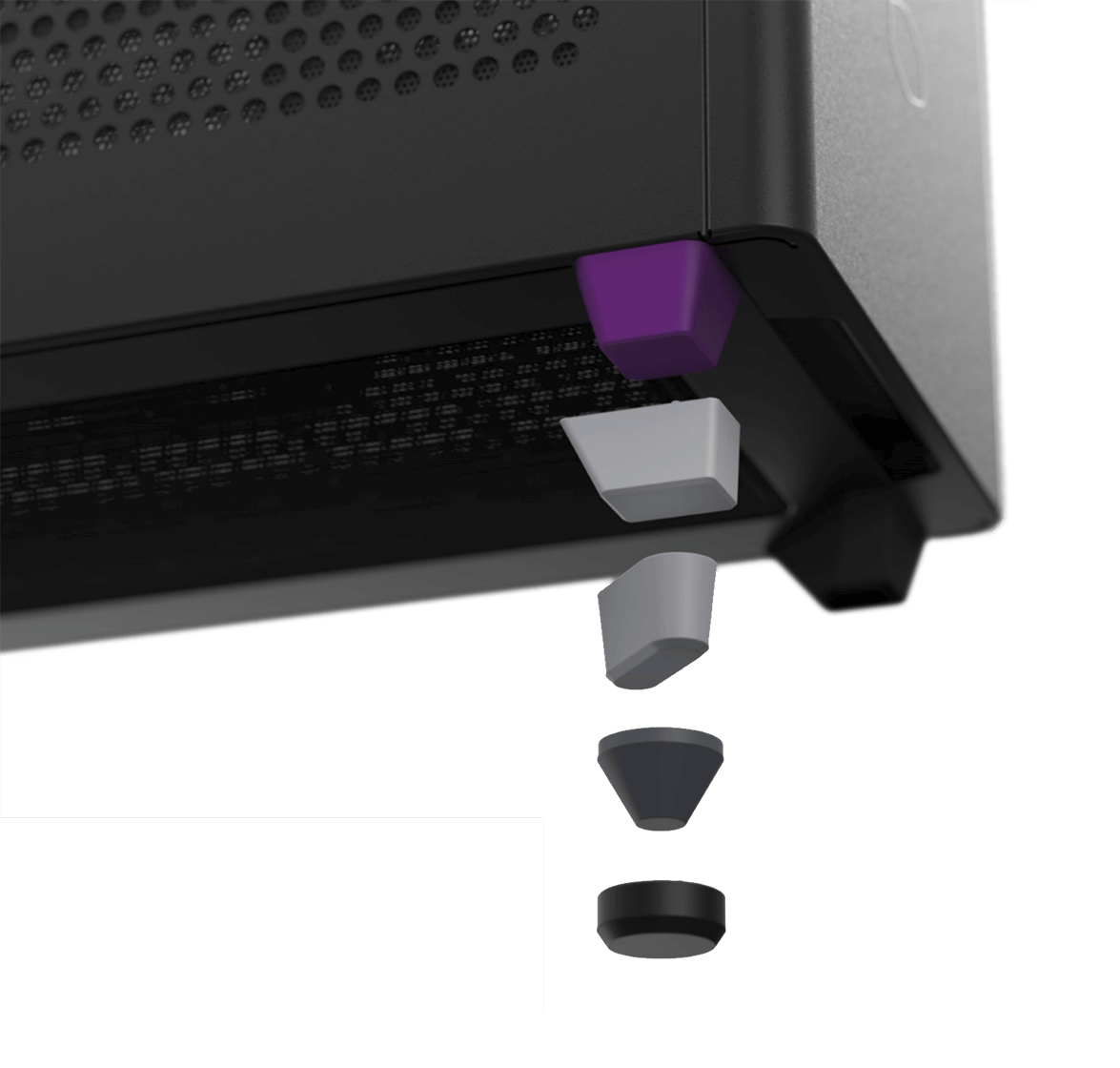

CUSTOMIZATION | 3D PRINTABLE FEET

During the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought "why not share the iterations with our users?" The team unanimously agreed with this direction.

As a result, end users can 3D print a selection of different shapes and sizes, and even choose the color based on the filament they print with.

Specifications

MODEL NUMBER

MCB-NR200-WNNN-S00

SERIES

MasterBox Series

SIZE

Mini ITX

AVAILABLE COLOR(S)

White

MATERIALS

Steel, Plastic, Mesh

DIMENSIONS (L X W X H)

376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions

VOLUME (EXLC. PROTRUSIONS)

18.25L

MOTHERBOARD SUPPORT

Mini DTX, Mini ITX, Max. size: 244 x 226mm

EXPANSION SLOTS

3

5.25" DRIVE BAYS

0

3.5" DRIVE BAYS

1 (Max. 2)

2.5" / 3.5" DRIVE BAYS (COMBO)

1

2.5" DRIVE BAYS

2 (Max. 3)

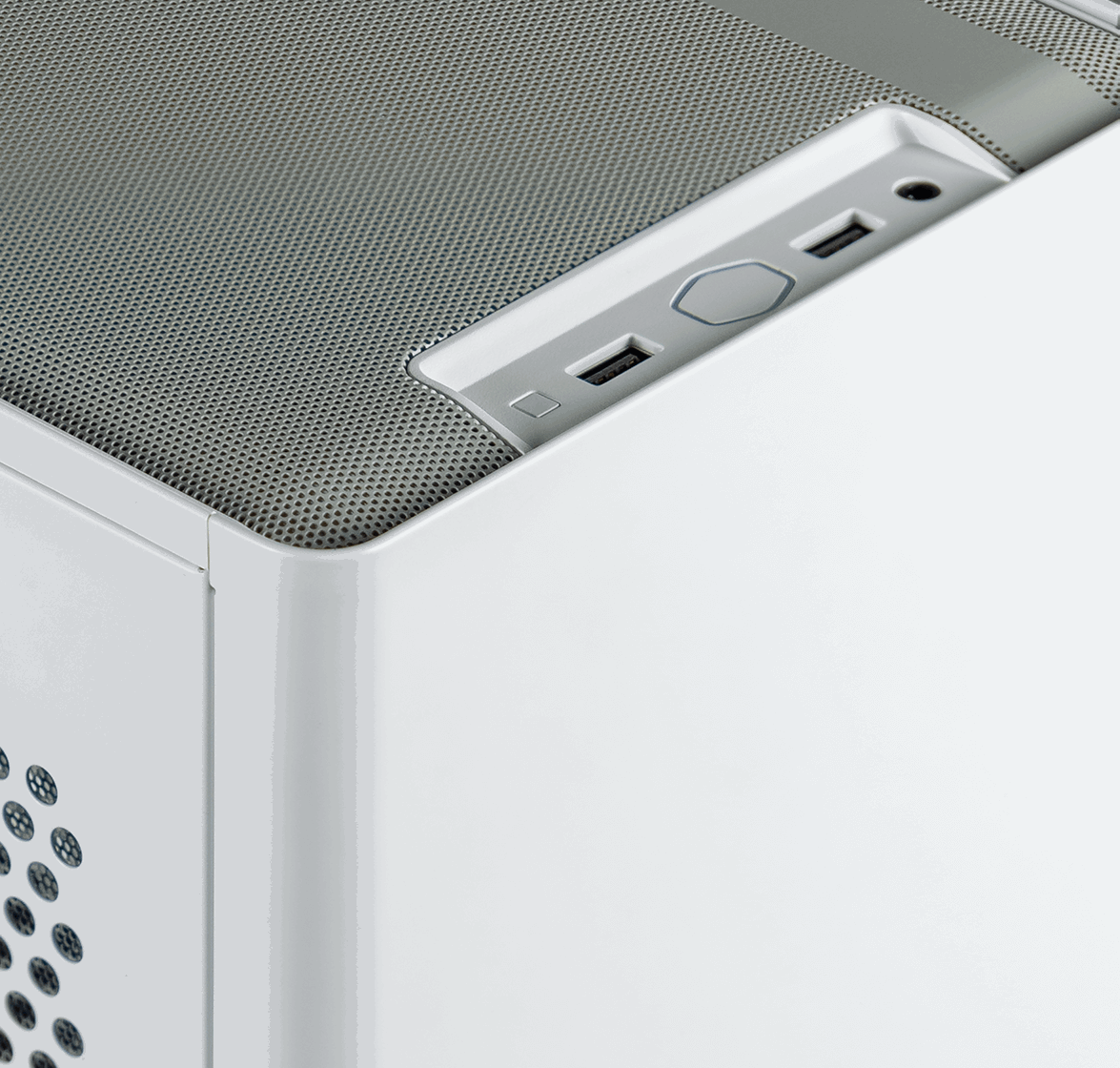

I/O PANEL

2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS - TOP

1x 120mm 650-1800RPM PWM (SickleFlow)

PRE-INSTALLED FANS - FRONT

N/A

PRE-INSTALLED FANS - REAR

1x 92mm 650-2300RPM PWM (SickleFlow)

PRE-INSTALLED FANS - BOTTOM

N/A

FAN SUPPORT - TOP

2x 120mm

FAN SUPPORT - REAR

1x 92mm

FAN SUPPORT - BOTTOM

2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

FAN SUPPORT - SIDE

2x 120/140mm

RADIATOR SUPPORT - TOP

N/A

RADIATOR SUPPORT - REAR

92mm (not compatible with vertical GPU installation)

RADIATOR SUPPORT - BOTTOM

120mm, 140mm, (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)

RADIATOR SUPPORT - SIDE

120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)

CLEARANCE - CPU COOLER

155mm, 76mm (GPU in vertical position)

CLEARANCE - PSU

130mm

CLEARANCE - GFX

L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

DUST FILTERS

Top, Bottom, Left side, Right side

POWER SUPPLY SUPPORT

SFX, SFX-L

WARRANTY

2 years

EAN CODE

4719512106754

UPC CODE

884102079061

WEIGHT

4.6 kg / 10.1 lbs
