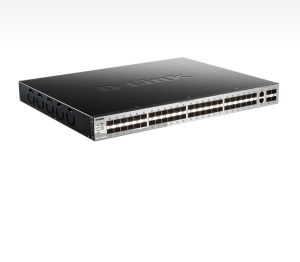

D-Link DGS-3130-54S 54 port Stackable Gigabit SFP Switch with 6 10GbE ports



  • 48 SFP ports with 2 10GBASE-T and 4 10G SFP+ ports
  • Six 10Gb ports: 2 copper and 4 SFP+ for stacking and uplinks
  • 216 Gbps switching capacity
  • Stackable up to 9 switches with 80Gb stacking bandwidth
  • Layer 3 switch with essential Layer 3 features included
  • Comprehensive security features
  • Redundant Power Supply support

Adaptable, Bottleneck-Free 10G Business Connectivity

The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.

With network bottlenecks on the rise, the DGS-3130 Series six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.

Why You Want It

Highly Reliable

with Redundant power supply (RPS) support and 6 kV surge protection on all Gigabit Ethernet ports

Feature-Rich Unified Image

Powerful L2 and L3 features such as Static Route, RIP/RIPng and OSPFv2/v3

Scalable and Highly Available

with physical stacking and fault tolerant topologies

Easy Access Control

with support for 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC)

Weather the Storm

The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.

Highly Available. Highly Flexible.

The D-Link DGS-3130 Lite Layer 3 Stackable Managed Switches are a Gigabit access layer solution specifically designed to connect end-users in a secure enterprise or metro Ethernet access network.

The switches support high bandwidth, long distance stacking, with physical stacking of up to 9 units over fiber, increasing available Gigabit ports on demand. This makes them ideal for network administrators who demand agile expansion functionality without having to sacrifice network reliability.

Slash Your Network Downtime

The DGS-3130 Series gives enterprises and organisations a highly reliable network, allowing for maximum business continuity. It has built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms.

Along with a host of essential network reliability features, all switches in the series support an external redundant power supply to ensure your operations continue unimpeded.

Comprehensive Security

The DGS-3130 Series gives your network the protection it deserves with leading-edge security features that handle threats effectively. With built-in IP-MAC-Port Binding, the switches allow administrators to enhance user access control.

Other advanced features like DHCP Snooping let the switches automatically learn and save IP/MAC pairs to the IMPB white list.

Powerful and Unified

Powerful L2 and L3 features come together in an integrated software image. This allows the switches to satisfy a wide range of requirements for different applications perfect for building the most solid and robust networks.

Manage Network Traffic in a Whole New Way

The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to prioritise critical network services such as VoIP, video conferences, IPTV, and IP surveillance. With robust features including Traffic Shaping, L2 Multicast, Host-based IGMP/MLD Snooping and ISM VLAN, administrators get a whole new way to manage their traffic that fits their needs.

Flexible Access Control Policies

Strict access control and deployment are made easy with the DGS-3130 switches. All support authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC), and allow individual policies to be assigned to each host after authentication. In addition, the switch also supports Microsoft NAP (Network Access Protection).


Dimensions (Size)

440 x 350 x 44 mm

Web-based GUI



Layer 3

10 Gig ports


SFP+ ports


10GBase-T ports



Limited Lifetime

SFP ports

48 Ports



Guest VLAN


Layer 3 Switching


IP Interfaces


Routing Table Size


Redundant PSU



Physical and Virtual

Stacking Capacity

Physical (9), Virtual (32)

Switch Type

Layer 3 Lite

Type of Port Required

Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre

IGMP Snooping


Number of Ports

48 - 52

PoE Type Required


Stacking Bandwidth

80 Gbps

Redundant Power Supply Option


Command Line Interface


Switch Series

DGS-3130 Series

802.1X Access Control


Switching Capacity

216 Gbps



Spanning Tree Protocol


Link Aggregation



4K Groups

Jumbo Frame


DHCP Server Screening




Cable Diagnostics


Voice VLAN


Energy Saving Technology

EEE Compliant|D-Link Green

19" Rack Mountable


No additional files, specification sheets, guides or documentation found for product.

Warranty: Lifetime Manufacturers Warranty (Return To Base)

Full manufacturers warranty details are available at the manufacturers (D-Link) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
