Asus TUF 3-RX5700XT-O8G-EVO-Gaming Video Card



Overview

The ASUS TUF Gaming X3 Radeon RX 5700 XT EVO powers through 1080p gaming

  • OC Edition: Boost Clock ~1980 MHz (OC Mode)/ ~1905 MHz (Gaming Mode)
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • 0dB technology lets you enjoy light gaming in relative silence.
  • 2.7-slot design expands cooling surface area to make the most of the three powerful fans.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • Auto-Extreme Technology uses automation to enhance reliability.
  • A protective backplate secures components during transportation and installation.
  • TUF compatibility testing ensures TUF Gaming and TUF alliance products work together flawlessly.
  • A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

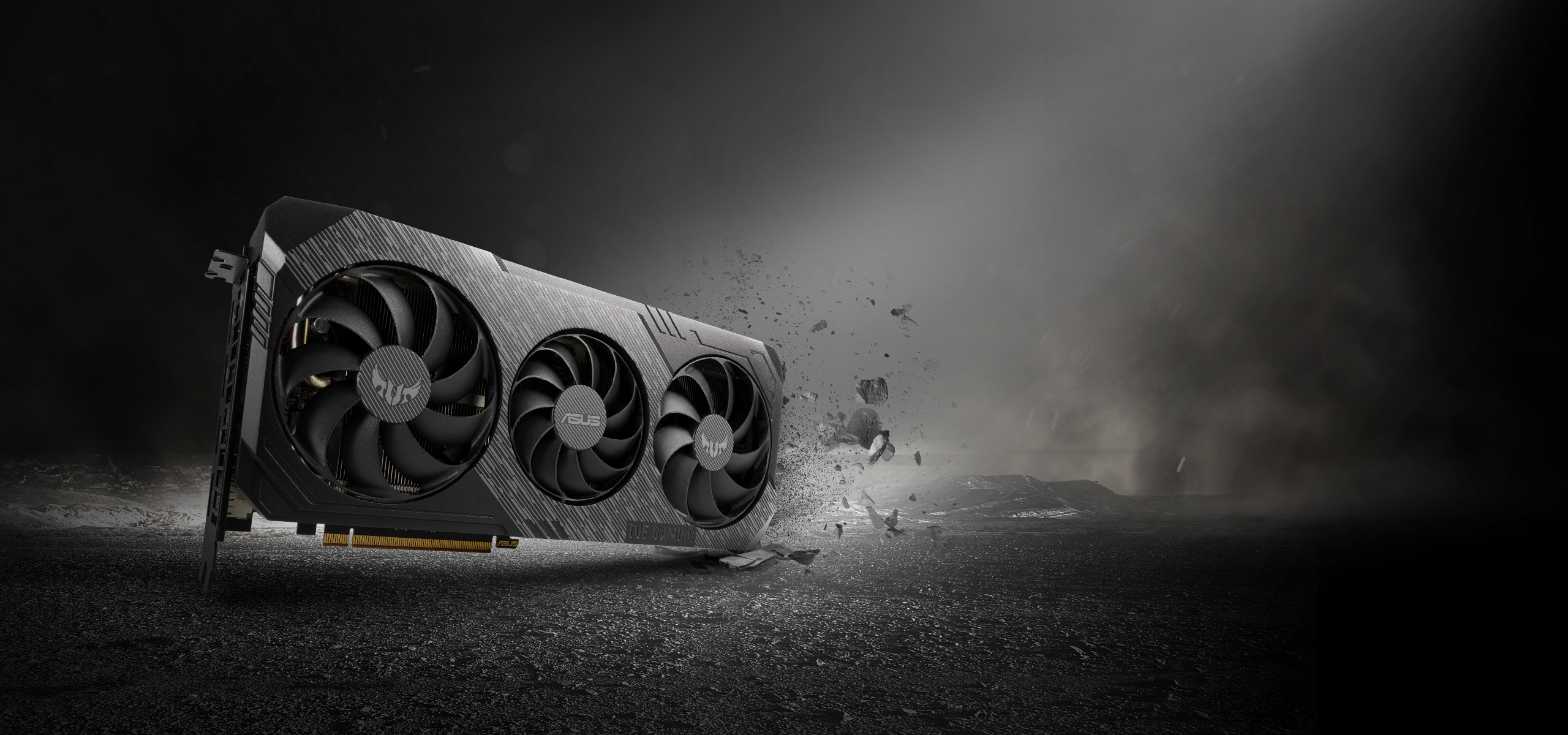

Built TUF

The TUF Gaming X3 Radeon RX 5700 XT EVO equips 3 powerful fans to up the ante for cooling, without sacrificing the durability that makes it TUF. Each card is built using Auto-Extreme manufacturing, protected by a rigid backplate that prevents PCB flex, and utilizes durable dual ball fan bearings. And, it's all backed by a rigorous battery of validation tests to ensure compatibility with the latest TUF products. If you're looking for the super-cooled tank of graphics cards, lock and load your rig with the TUF Gaming X3 EVO.

Axialtech Fan Design | Better, faster, stronger

Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

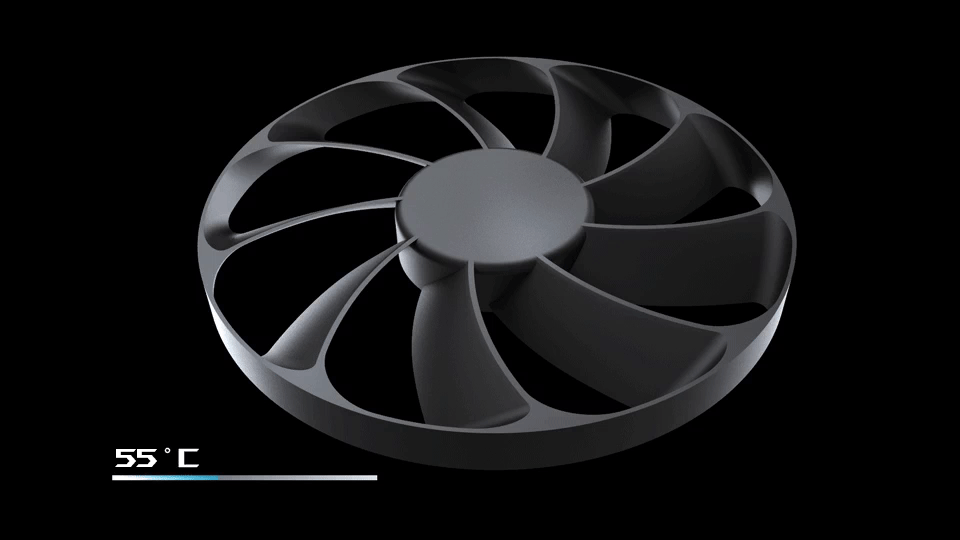

0dB Technology | Quiet intelligence

An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise, the fans automatically start up again.

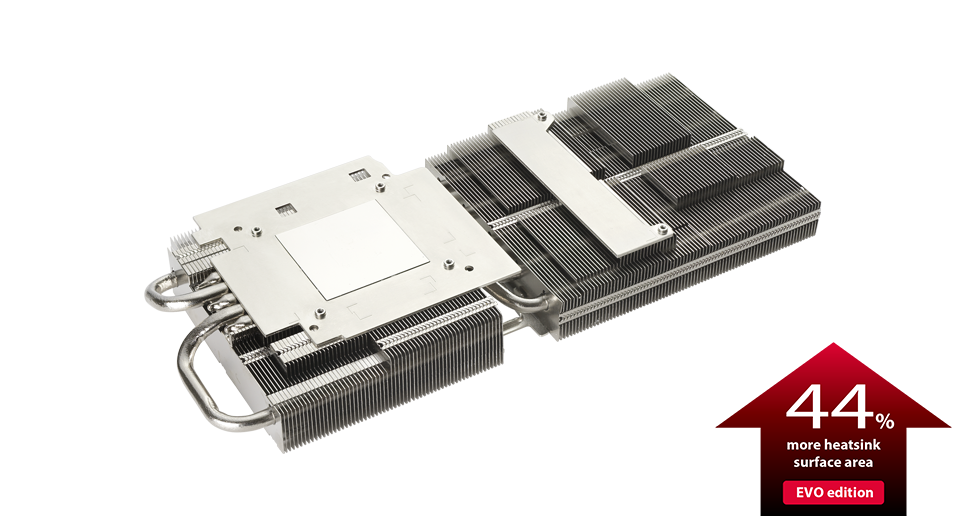

2.7slot Design | Sink your heat into this

The TUF Gaming X3 EVO leverages a 2.7-slot design to gain more heatsink surface area. The extra thermal headroom increases overclocking potential and allows fans to run at even lower speeds in light scenarios.

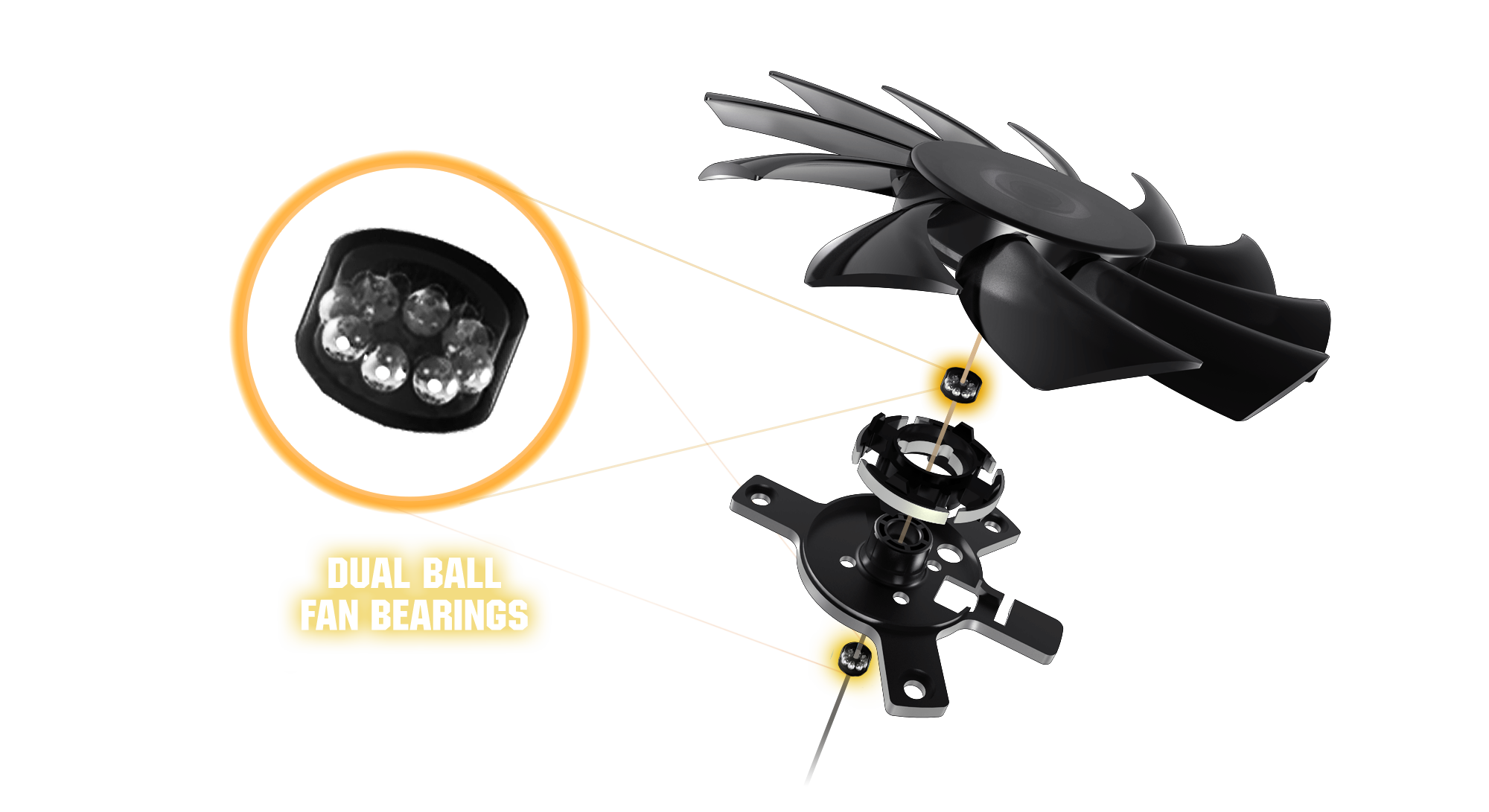

Dual Ball Fan Bearings | 2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

AutoExtreme Technology | Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

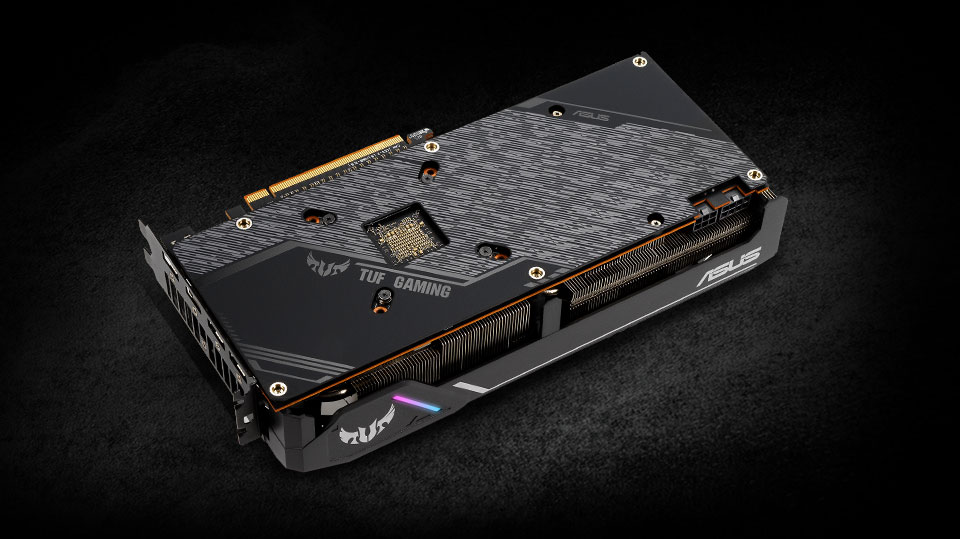

Protective Backplate | That's so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

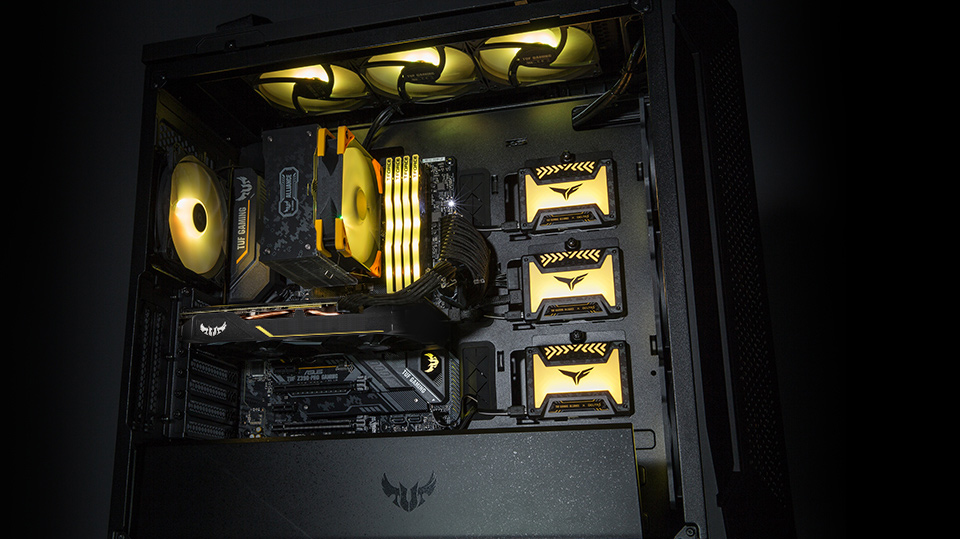

TUF Compatibility Testing | Better together

ASUS TUF Gaming and TUF Gaming Alliance products from our partners are subjected to a rigorous battery of validation tests to ensure a seamless plug-and-play experience. All products also share a common design language, making it easier to build an entire battlestation that has a unified aesthetic.

144Hour Validation Program | Extensive may be an understatement

Each card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and PlayerUnknown's Battlegrounds. We also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.

AMD Radeon FreeSync | Immersive Gaming Dynamics

Experience stutter-free, tear-free gaming with AMD Radeon FreeSync Premium Pro technology, available on many ASUS monitors.

Subtle Lighting | A bit lit

The shroud features a subtle illuminated strip that creates a stylish accent for your build.

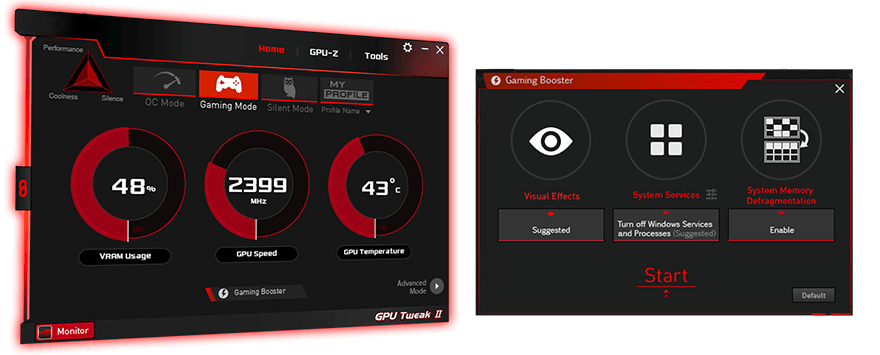

GPU Tweak II | Monitor, tweak, and tune

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

wtfast | Play lag-free

We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting!

XSplit | Premium streaming

XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!

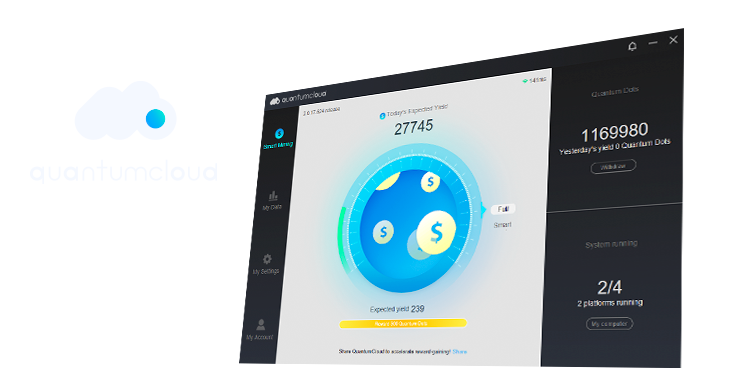

Quantumcloud | Profit from GPU power

Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Through an easy-to-use app, your computer can help run cloud-based applications, making you money in the process. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn't collect your personal data. Get started making money today!

AMD Radeon Software Adrenalin 2020 Edition | Hardcore software

The latest Radeon Software Adrenalin 2020 Edition unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

AMD Radeon Anti-Lag

AMD Radeon Anti-Lag minimizes the amount of time between a key press or mouse movement and having that response show up on the screen. For competitive gamers, this feature is a must-have.

Intelligent Sharpening Technology

Radeon Image Sharpening (RIS) is a contrast-adaptive sharpening algorithm designed to intelligently enhance details to deliver crisp-looking visuals with minimal performance impact.

FidelityFX

FidelityFX is a collection of high-quality post-process effects that automatically collapse multiple effects into fewer shader passes to reduce GPU overhead.

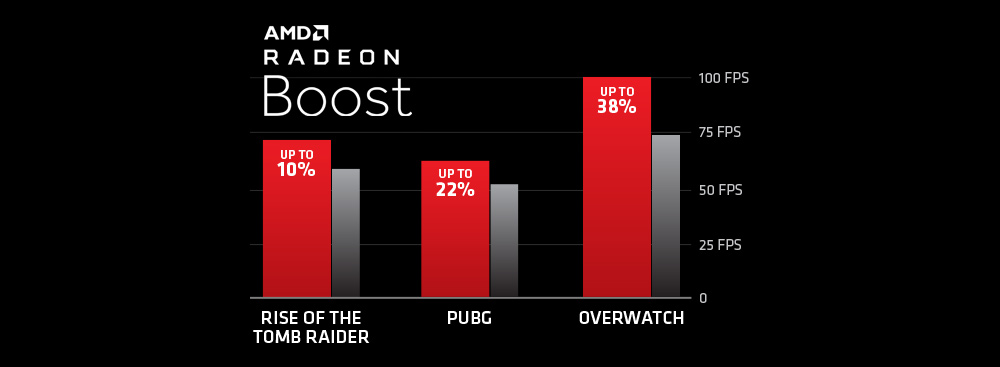

Radeon Boost

Give your games a boost of performance by dynamically lowering resolution to allow higher FPS with no perceived impact to quality.

Integer Display Scaling

Relive the nostalgia of classic games on modern high-resolution displays with Integer Display Scaling. IDS upscales each pixel by a factor of four (or more) to provide a crisp visual experience.

Specifications

Graphics Engine

AMD Radeon RX 5700 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

GDDR6 8GB

Engine Clock OC Mode

up to 1870 MHz (Game clock**) / ~ 1980 MHz (Boost clock*)

Engine Clock Gaming Mode

up to 1795 MHz (Game clock**) / ~ 1905 MHz (Boost clock*)

Stream Processors

2560

Memory Speed

14Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution:7680x4320

Interface

HDMI Output : Yes x 1 (Native) (HDMI 2.0b)

Display Port : Yes x 3 (Native) (DisplayPort 1.4)

HDCP Support : Yes (2.3)

Maximum Display Support

6

NVlink/ Crossfire Support

Yes ***

Recommended PSU

600W

Power Connectors

1 x 6-pin, 1 x 8-pin

Accessories

1 x Thank you card

1 x Speedsetup manual

Software

ASUS GPU Tweak II & Drivers (please download all software from the support site.)

Dimensions

11.13 " x 5.06 " x 2.12 " Inch

28.26 x 12.85 x5.38 Centimeter

Slot

2.7 slot

Note

*Boost frequency is the maximum expected GPU clock when lighter workloads are run under ideal thermal and electrical condition, set to typical TGP(Total Graphics Power). Actual individual boost clock results may vary.

**Game Frequency is the expected GPU clock when running typical gaming applications. Actual individual game clock results may vary.

***Crossfire support with DX12 and Vulkan only.
