Thermaltake Smart BM2 550W - TT Premium Edition
Overview
80 PLUS Bronze certified semi modular PSU with Rifle Bearing fan.
Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart
BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle
bearing fan, Japanese main capacitors and other premium components, the Smart
BM2 550W delivers a continuous and stable power output at 40, allowing near
silent operation and reliable performance. With an ample 5-year warranty, the
Smart BM2 550W is able to satisfy the market, where value-oriented users are
looking for a new power supply with all the latest features.
Ultra Quiet 140mm Rifle Bearing Fan
The Smart BM2 550W adopts a 140mm silent Rifle Bearing fan with intelligent
preset RPM control guarantying cooling performance and silent operation.
Semi Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable
installation an easy task while fully powering the system at optimal
voltages.

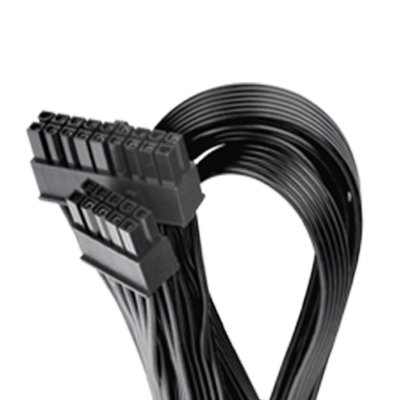

Main Power Connector (24pin)
- 24pin Main connector (600mm) x 1
ATX 12V (4+4pin)
- ATX 12V 8pin connector (600mm) x 1
- 4+4pin connector (150mm) x 1

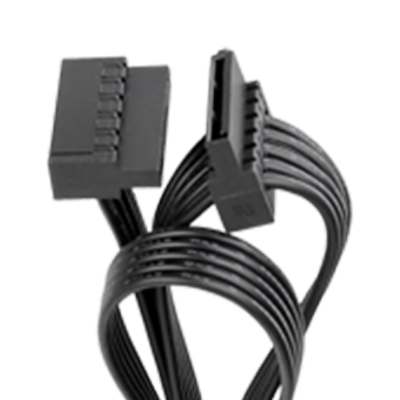

SATA (5pin) SATA connectors
- SATA connectors (500mm + 150mm + 150mm) x 3
- SATA connectors (500mm + 150mm + 150mm) x 3

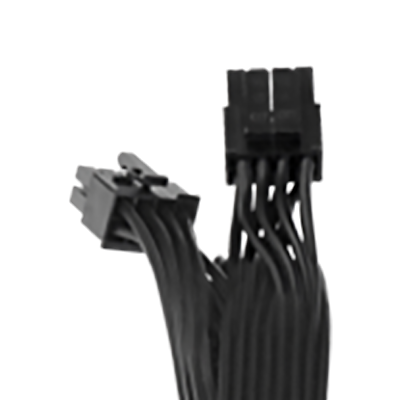

PCI-E (6+2pin)
- PCI-E 6+2pin connectors (500mm + 150mm) x 2

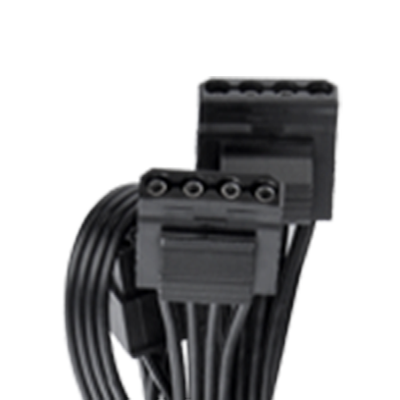

Peripheral
- Peripheral connectors (500mm + 150mm + 150mm+ 150mm) x 4

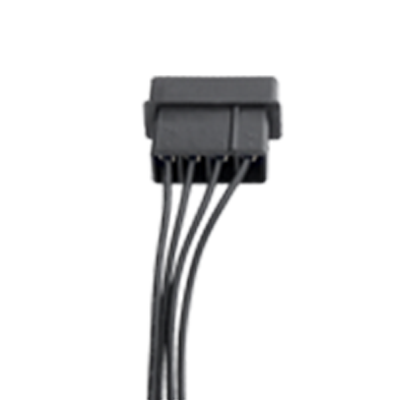

Floppy Adapter
- Peripheral to FDD adapter cable (150mm) x 1
Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies
durability and ensures the Smart BM2 550W to have highest stability and
reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your
system. Such as efficiently change voltage level for 12V, 5V, and 3V and to
match the loads to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC
components.
80 PLUS Bronze Certified and Intel C6/C7 States
Ready
Smart BM2 550W saves energy through its high energy efficiency up to 85%. It
has been optimized to work with all generations of Intels processors to achieve
maximum energy savings.

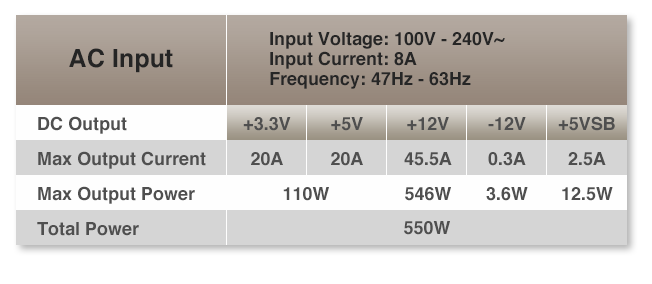

Specifications
|
P/N |
PS-SPD-0550MNFABx-1 |
|
WATTS |
550W |
|
RGB
FAN |
No |
|
MODEL |
SP-550AH3CCB-B |
|
TYPE |
ATX
12V v2.4 and EPS v2.92 |
|
MAX.
OUTPUT CAPACITY |
550W |
|
PEAK
OUTPUT CAPACITY |
660W |
|
COLOR |
Black |
|
DIMENSION
( W / H / D ) |
150mm(W)
x 86mm(H) x 160mm(D) |
|
PFC
(POWER FACTOR CORRECTION) |
Active
PFC |
|
POWER
GOOD SIGNAL |
100-500
msec |
|
HOLD
UP TIME |
>
12msec at 80% of full load at 230Vac input |
|
INPUT
CURRENT |
8A
max. |
|
INPUT
FREQUENCY RANGE |
47Hz
-63Hz |
|
INPUT
VOLTAGE |
100V-240V~ |
|
OPERATING
TEMPERATURE |
0C
to +40C |
|
OPERATING
HUMIDITY |
20%
to 90%,non-condensing |
|
STORAGE
TEMPERATURE |
-20
C to +70 C |
|
STORAGE
HUMIDITY |
5%
to 95%, non-condensing |
|
COOLING
SYSTEM |
140mm
Fan: 2300 R.P.M. 10% |
|
EFFICIENCY |
Meet
80 PLUSBronze at 115Vac input. |
|
MTBF |
100,000
hrs minimum |
|
SAFETY
APPROVAL |
OVP/OCP/cTUVus/TUV/CE/FCC/S-mark/EAC/BSMI/C-TICK/CCC |
|
PCI-E
6+2PIN |
2 |
