All stock codes associated to this product
P11CX, P11C-X, 4405897, 90SB06Q0M0UAY0, 90SB06Q0-M0UAY0, MBAP11CX, MBA-P11C-X, 4712900951868
Asus P11C-X Intel Xeon E ATX Server Motherboard with dual M.2 and USB
3.1 connections
Overview
- Powered by the Intel Xeon E platform
- 95W CPU and up to 128GB memory support (4 DIMMs)
- Rack-optimized design maximizes cooling for excellent thermal
efficiency
- Flexible expandability with 6 native SATA 6G ports , two PCIe Gen3 slots
and two PCI legacy slots
- Dual IntelGigabit Ethernet with teaming support
- Dual M.2 for independent OS drives with RAID 0/1
- Supports the latest 10Gb/s USB 3.1 onboard for high transfer
speed
- TPM2.0 Ready secures store keys, digital certificates, passwords and
data
- Complete server management with ASUS Control Center
Industry-standard ATX server board with multiple expandability
options
P11C-X is a server motherboard based on the Intel Xeon E platform and Intel
C242 chipset offering dual Intel Ethernet and flexible expandability with dual
M.2, six native SATA 6G, two PCIe, and two PCI slot for legacy devices. The
layout is rack-optimized placement where the CPU and memory are placed in a
parallel arrangement directly behind the fan inlet to promote maximum cooling
for excellent thermal efficiency.
Dual M.2 for internal and independent OS drives with RAID 0/1 (by
SATA mode)
P11C-X comes with dual M.2 support up to 22110-length M.2 drives via PCIe or
SATA with auto-switch signal function. In performance-maximizing RAID 0
configurations with dual M.2 SSDs, write speeds are up to 40% faster than a
single M.2 SSD drive setup and read operations are an astonishing 84% faster.
Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for
instant data redundancy.
High-speed SAS storage solutions
P11C-X supports ASUS PIKE II 3000 series, the latest enterprise storage
solution, featuring support for 12Gb/s SAS storage and integrated RAID data
protection. With ASUS PIKE cards, you can immediately improve the storage
capacity and performance of P11C-X, making it a great upgrade option.
Dual Intel Gigabit Ethernet
With dual Intel Gigabit Ethernet connectors, P11C-X keeps your data moving
swiftly and efficiently. With both LAN ports teamed you'll benefit from
increased bandwidth for more speed, automated load balancing for smoother data
flows, and instant failover if anything goes wrong so access to your files is
always fast, efficient and uninterrupted.
TPM-M 2.0 ready
P11C-X supports TPM-M 2.0 with a 14-1 TPM header to securely store keys,
digital certificates, passwords and data. It helps to enhance network security,
protect digital identities, and ensure platform integrity.

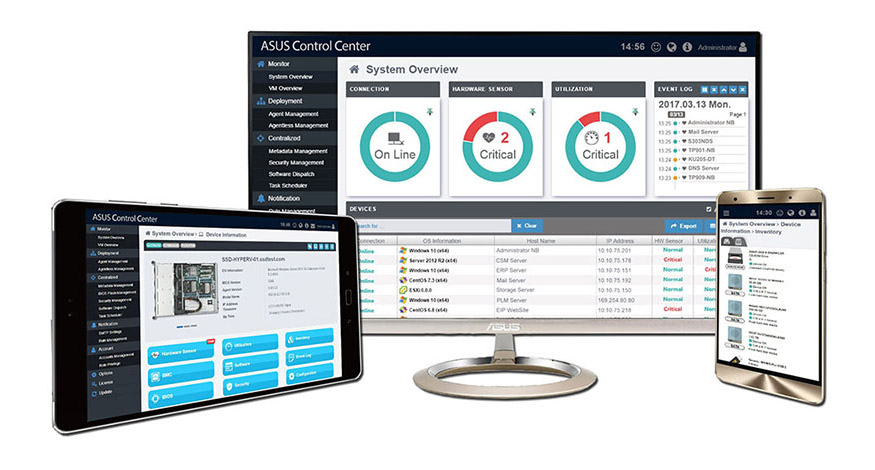

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT Management
platform for monitoring and controlling ASUS commercial products, including
servers, workstations and digital signage. ACC enables Remote BIOS updates,
monitoring of multiple Systems via mobile devices, and one-click software
updates and dispatching, allowing easier server Management for any IT
infrastructure.
Enhanced serviceability
With its power button located on the front I/O panel, P11C-X is designed to
provide easier maintenance and deployment for diverse applications.
Quick initialization guidance
P11C-X provides instant system information during initialization as well as
any unusual diagnostic results for more efficient IT operation and easy
troubleshooting.
ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance,
facilitates faster heat dissipation, resulting in cooler operating temperature.
Reduces power loss and increases cost savings.
Specifications
|
Processor
/ System Bus |
1
x Socket LGA1151 |
|
Intel Xeon processor
E-2100 family(95W) |
|
Intel Xeon processor
E-2200 family(95W) |
|
The
8th/9th generation Intel Core i3/Pentium/Celeron
Processor |
|
*Refer
to support page for more information |
|
Core
Logic |
Intel
C242 Chipset |
|
Memory
|
Total
Slots : 4 (2-channel) |
|
Capacity
: Maximum up to 128GB UDIMM |
|
Memory
Type : |
|
DDR4
2666/2400 UDIMM non ECC and with ECC |
|
Memory
Size : |
|
32GB,
16GB, 8GB, 4GB |
|
*
Refer to support page for more information |
|
Expansion
Slots |
Total
Slot : 4 |
|
Slot
Location 3 : PCI-E x8 (Gen3 X4 Link) |
|
Slot
Location 4 : PCI 32bit/33MHz |
|
Slot
Location 5 : PCI 32bit/33MHz |
|
Slot
Location 6 : PCI-E x16 (Gen3 X16 Link) |
|
Follow
SSI Location# |
|
Form
Factor |
ATX
(12"x9.6", 305mm x 244mm) |
|
Storage
|
SATA
Controller : |
|
Intel
C242 Chipset |
|
6
x SATA 6Gb/s ports + 2 x M.2 connector *1 |
|
Intel
Rapid Storage Technology Enterprise(RSTe) (For
Linux/Windows) |
|
(Support
Software RAID 0, 1, 5, 10 ) |
|
SAS
Controller : |
|
ASUS
PIKE II 3008-8i 8-port SAS 12G RAID card |
|
ASUS
PIKE II 3108-8i 8-port SAS 12G HW RAID card |
|
Networking
|
1
x Intel I210AT |
|
1
x i219-LM |
|
Graphic
|
Aspeed
AST2510 with 64MB VRAM |
|
On
Board I/O |
1
x TPM header |
|
1
x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power
connector) |
|
1
x USB 3.0 pin header , Up to 2 Devices |
|
2
x USB 2.0 pin header , Up to 3 Devices |
|
6
x Fan Header , 4pin |
|
1
x Chassis Intruder |
|
2
x Front LAN LED |
|
1
x Serial Port Header |
|
1
x LPT |
|
2
x M.2 Connector , NGFF Type :
22110/2280/2260/2242 |
|
Back
I/O Ports |
1
x PS/2 Keyboard/ Mouse Port |
|
2
x USB 3.1 |
|
2
x USB 3.0 |
|
2
x USB 2.0 |
|
1
x VGA Port (onboard Aspeed AST2510) |
|
2
x RJ45 LAN Ports |
|
Management
Solution |
ASUS
Control Center Enterprise (Optional) |
|
Accessories
|
Gift
Box (1-in-1) |
|
1
x Support DVD |
|
1
x I/O shield |
|
6
x SATA 6G cables |
|
1
x Plate for LGA1151 |
|
1
x ASUS Control Center Quick Guide |
|
Bulk
Pack (10-in-1) |
|
1
x Support DVD |
|
1
x I/O shield |
|
1
x Plate for LGA1151 |
|
1
x ASUS Control Center Quick Guide |
|
Note
|
*1 |
|
Intel
C242: |
|
6
* SATA 6Gb/s ports with 2 * M.2 (NGFF 22110/2280/2260/2242, gray SATA port
will disable when M.2 is SATA signal)** |
|
**
One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA
6Gb/s only. |
