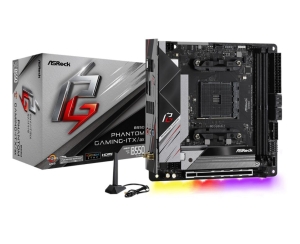

Asrock B550 Phantom Gaming-ITX/ax Motherboard

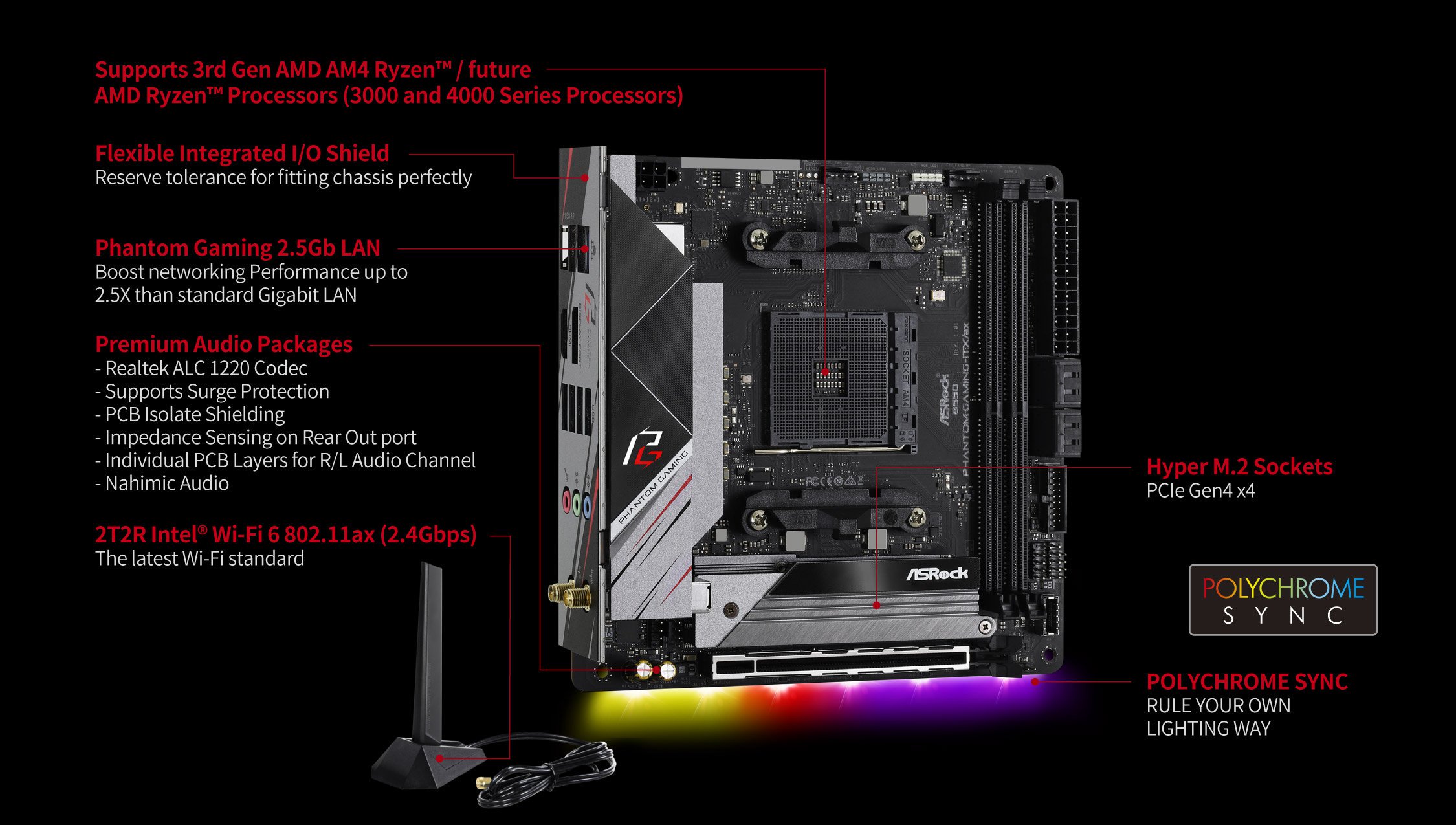

Overview
- Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
- 8 Power Phase Design, Digi Power, 90A Dr.MOS
- Supports DDR4 5400+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 &
SATA3)
- 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4
Rear)
- Intel 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1
PG Velocita is a brand new high end product line under the Phantom Gaming
family, the PG Velocita motherboard series packed full with uncompromised
performance as well as relentless appearance. Velocit is Italian for Velocity,
destined to give a fast and unbeatable gaming experience to the gamers!
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers,
via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most
engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from
which predominant sounds are coming. Each sound is properly positioned in 360 on
a radar for a full immersion during the game.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for
synchronous buck-set down voltage applications! Compared to traditional discrete
MOSFETs, it intelligently delivers higher current for each phase, thus providing
improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRocks premium 60A power chokes effectively
make the saturation current up to three times better, thus providing enhanced
and improved Vcore voltage to the motherboard.
8LAYER & 2OZ COPPER PCB
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing
stable signal traces and power shapes and delivering lower temperature and
higher energy efficiency for overclocking! Thus, it's able to support the latest
DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to
rule your own colorful lighting way! ASRock offers a very comprehensive control
to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers,
chassis and any RGB devices smoothly. Devices can be synchronized across the
Polychrome RGB Sync-certified accessories as well.
Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRocks motherboard equipped with next
generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to
2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz
simultaneously. Significant improvement in bi-directional MU-MIMO support is
another attractive feature as well.
Intel 2.5G LAN
The 2.5G Ethernet configuration were introduced to support higher bandwidth
on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks.
The industry's leading Intel LAN always provides the best throughput
performance, lower CPU utilization, enhanced stability and is able to deliver
ultimate network experience to users!

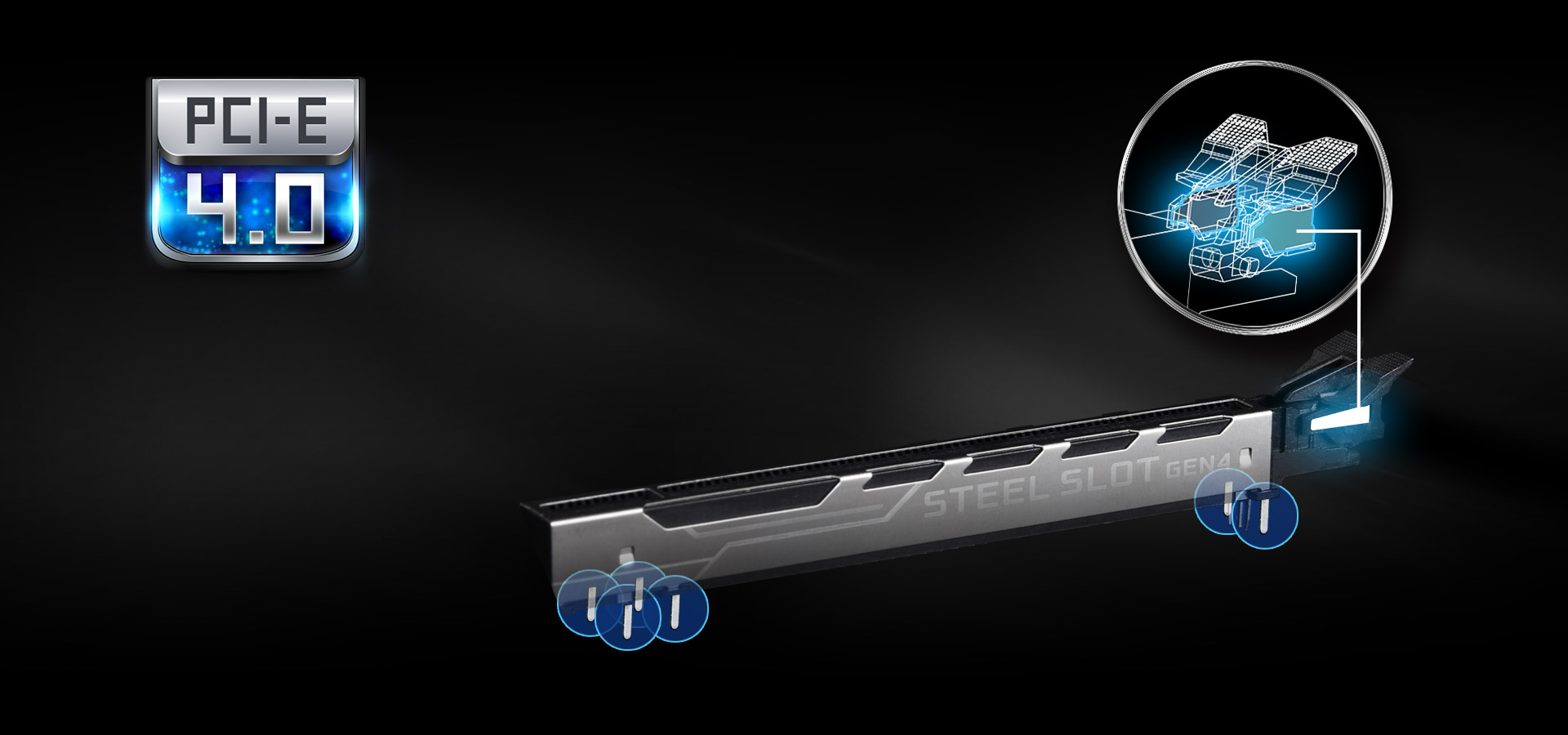

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0
standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill
the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra
M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock
provides a completed M.2 armor solution that makes SSDs to run in a certain low
temperature.
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate
and next generation reversible USB design to the front panel of computer
case.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports
built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to
deliver up to 10 Gbps data transfer rates.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your
hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology
combines these two types of storage into a single drive and automatically moves
the data you access the most to the SSD, so you get the best of both worlds.

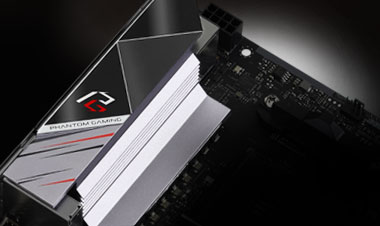

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from
the MOSFET and chipset so that your whole system may perform more stable.

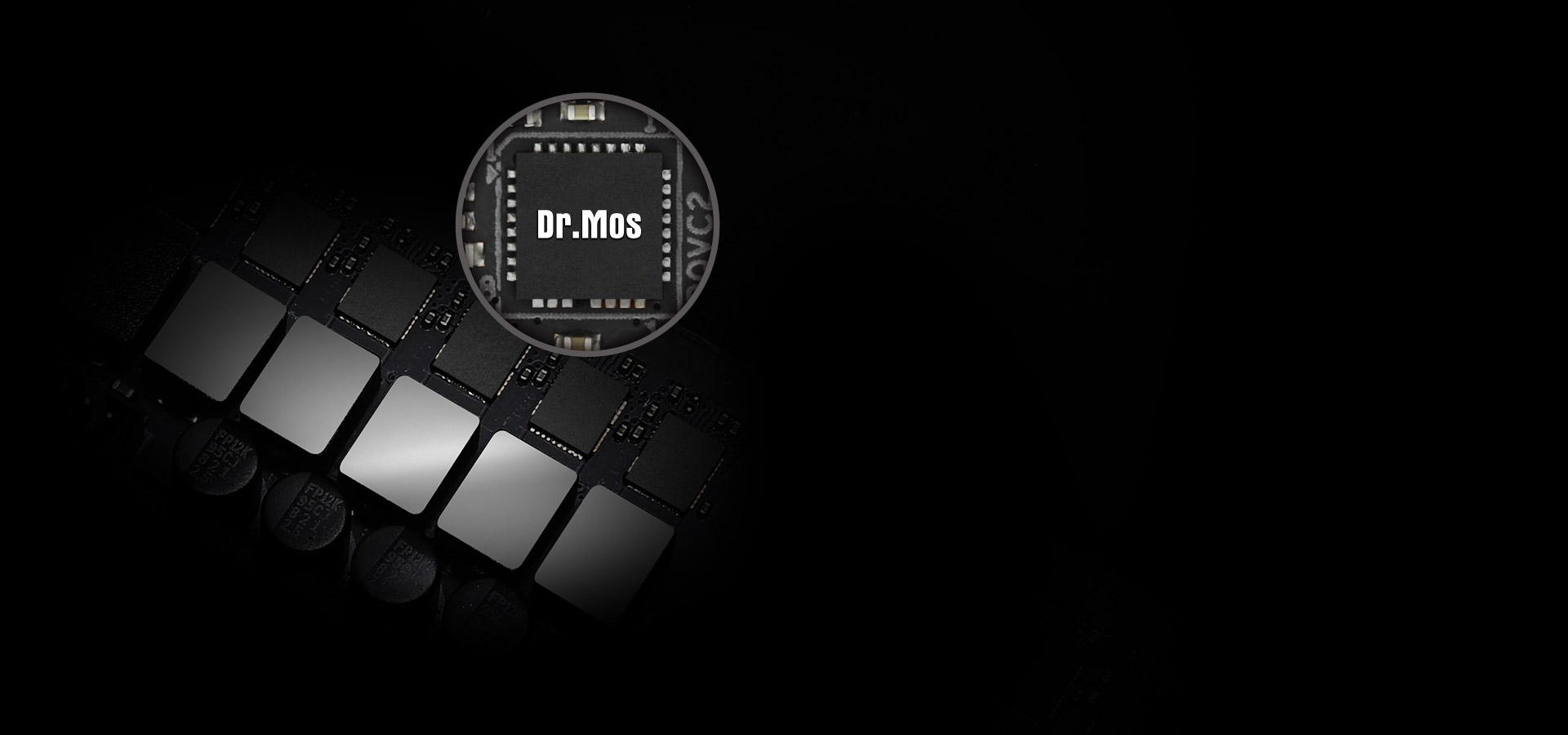

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for
synchronous buck-set down voltage applications! Intelligently delivering higher
current and driving up to 50A continuous current for each phase, thus providing
improved thermal result and superior performance.

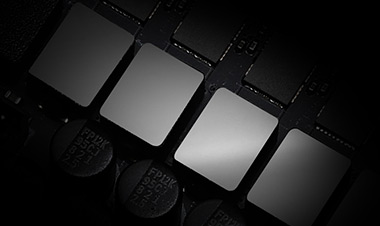

Premium 90A Power Choke
Compared to traditional chokes, ASRocks premium 90A power chokes effectively
make the saturation current up to three times better, thus providing enhanced
and improved Vcore voltage to the motherboard.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious
components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB
layers to protect the motherboard against electrical shorts caused by
humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB
delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power
surges, the excessive current may cause your system to malfunction immediately.
ASRock Full Spike Protection includes various technologies to prevent your
motherboards components from being damaged by these unexpected voltage
spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We
provide various apps and support software for users to download. You can also
easily optimize your system and keep your motherboard up to date with ASRock
Live Update & APP Shop.
Specifications
|
Gaming
Armor |
Power |
|
-

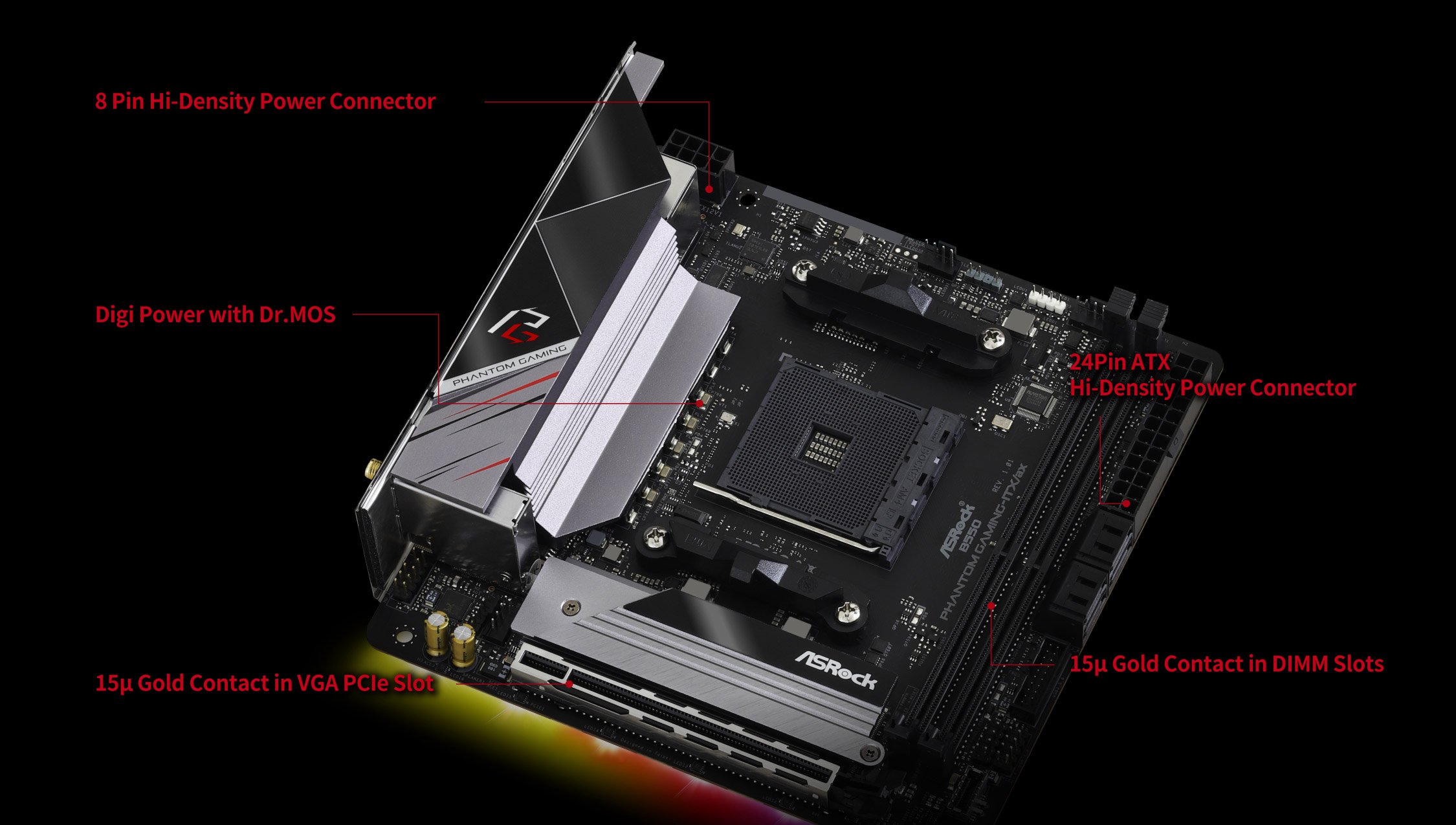

Hi-Density Power Connectors (24 pin and 8 pin) |
|
Memory |
|
-
15 Gold Contact in DIMM Slots |
|
VGA
Card |
|
-
15 Gold Contact in VGA PCIe Slot (PCIE1) |
|
Internet |
|
-
Intel 2.5G LAN |
|
Audio |
|
-
Nahimic Audio |
|
Unique
Feature |
ASRock
USB 3.2 Gen2 |
|
-
ASRock Front Panel USB 3.2 Gen2 Type-C Header (10
Gb/s) |
|
-
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
-
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
|
ASRock
Super Alloy |
|
-
Premium 90A Power Choke |
|
-
90A Dr.MOS |
|
-
Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder
choke) |
|
-
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer
capacitors) |
|
-
I/O Armor |
|
-
Matte Black PCB |
|
-
High Density Glass Fabric PCB |
|
-
8 Layer PCB |
|
-
2oz Copper PCB |
|
Intel 2.5G
LAN |
|
Intel 802.11ax
WiFi |
|
ASRock
Steel Slot Gen4 |
|
ASRock
Full Coverage M.2 Heatsink |
|
ASRock
Hyper M.2 (PCIe Gen4x4) |
|
ASRock
Full Spike Protection (for all USB, Audio, LAN
Ports) |
|
ASRock
Live Update & APP Shop |
|
CPU |
-
Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen
Processors* |
|
-
Digi Power design |
|
-
8 Power Phase design |
|
*Not
compatible with AMD Ryzen 5 3400G and Ryzen 3
3200G. |
|
Chipset |
-
AMD B550 |
|
-
Dual Channel DDR4 Memory Technology |
|
Memory |
-
2 x DDR4 DIMM Slots |
|
-
AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) /
4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC)
/ 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) /
4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 /
2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered
memory* |
|
-
AMD Ryzen series APUs (Renoir) support DDR4 5400+(OC) / 5300(OC) /
5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC)
/ 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) /
4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC)
/ 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC &
non-ECC, un-buffered memory |
|
-
Max. capacity of system memory: 64GB** |
|
-
Supports Extreme Memory Profile (XMP) memory
modules |
|
-
15 Gold Contact in DIMM Slots |
|
BIOS |
-
256Mb AMI UEFI Legal BIOS with GUI support |
|
-
Supports "Plug and Play" |
|
-
ACPI 5.1 compliance wake up events |
|
-
Supports jumperfree |
|
-
SMBIOS 2.3 support |
|
-
CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, +1.8V, VDDP Voltage
Multi-adjustment |
|
Graphics |
-
Integrated AMD Radeon Vega Series Graphics in Ryzen Series
APU* |
|
-
DirectX 12, Pixel Shader 5.0 |
|
-
Shared memory default 2GB. Max Shared memory supports up to
16GB.** |
|
-
Dual graphics output: support HDMI and DisplayPort 1.4 ports by
independent display controllers |
|
-
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @
60Hz |
|
-
Supports DisplayPort 1.4 with max. resolution up to 5K
(5120x2880)@120Hz |
|
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI 2.1 Port (Compliant HDMI monitor is
required) |
|
-
Supports HDR (High Dynamic Range) with HDMI
2.1 |
|
-
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4
Ports |
|
-
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4
Ports |
|
-
Supports Microsoft PlayReady |
|
*Actual
support may vary by CPU |
|
**The
Max shared memory 16GB requires 32GB system memory
installed. |
|
Audio |
-
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio
Codec) |
|
-
Premium Blu-ray Audio support |
|
-
Supports Surge Protection |
|
-
120dB SNR DAC with Differential Amplifier |
|
-
Pure Power-In |
|
-
Direct Drive Technology |
|
-
PCB Isolate Shielding |
|
-
Impedance Sensing on Rear Out port |
|
-
Individual PCB Layers for R/L Audio Channel |
|
-
15 Gold Audio Connector |
|
-
Nahimic Audio |
|
LAN |
-
2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
-
GigaLAN Intel I225V |
|
-
Supports Wake-On-LAN |
|
-
Supports Lightning/ESD Protection |
|
-
Supports Energy Efficient Ethernet 802.3az |
|
-
Supports PXE |
|
Wireless
LAN |
-
Intel 802.11ax WiFi Module |
|
-
Supports IEEE 802.11a/b/g/n/ax |
|
-
Supports Dual-Band (2.4/5 GHz) |
|
-
Supports WiFi6 802.11ax (2.4Gbps) |
|
-
2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology |
|
-
Supports Bluetooth 5.1 + High speed class II |
|
-
Supports MU-MIMO |
|
Slots |
AMD
Ryzen series CPUs (Matisse) |
|
-
1 x PCI Express x16 Slot (PCIE1: Gen4x16
mode)* |
|
AMD
Ryzen series APUs (Renoir) |
|
-
1 x PCI Express x16 Slot (PCIE1: Gen3x16
mode)* |
|
-
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on
the rear I/O) |
|
-
15 Gold Contact in VGA PCIe Slot (PCIE1) |
|
*Supports
NVMe SSD as boot disks |
|
Storage |
-
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10),
NCQ, AHCI and Hot Plug |
|
-
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express
module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with
Renoir)* |
|
-
1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32
Gb/s)* |
|
*Supports
NVMe SSD as boot disks |
|
Supports
ASRock U.2 Kit (M2_1) |
|
Connector |
-
1 x RGB LED Header* |
|
-
1 x Addressable LED Header** |
|
-
1 x CPU Fan Connector (4-pin)*** |
|
-
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)**** |
|
-
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)***** |
|
-
1 x 24 pin ATX Power Connector (Hi-Density Power
Connector) |
|
-
1 x 8 pin 12V Power Connector (Hi-Density Power
Connector) |
|
-
1 x Front Panel Audio Connector (15 Gold Audio
Connector) |
|
-
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD
Protection) |
|
-
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD
Protection) |
|
-
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD
Protection) |
|
*Supports
in total up to 12V/3A, 36W LED Strip |
|
**Supports
in total up to 5V/3A, 15W LED Strip |
|
***The
CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan
power. |
|
****The
CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan
power. |
|
*****The
Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W)
fan power. |
|
CPU_FAN2/WP
and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in
use. |
|
Rear
Panel I/O |
-
2 x Antenna Ports |
|
-
1 x HDMI Port |
|
-
1 x DisplayPort 1.4 |
|
-
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection) |
|
-
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection) |
|
-
4 x USB 3.2 Gen1 Ports (Supports ESD
Protection) |
|
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) |
|
-
HD Audio Jacks: Line in / Front Speaker /
Microphone |
|
Software
and UEFI |
Software |
|
-
ASRock Motherboard Utility (Phantom Gaming
Tuning) |
|
-
ASRock Polychrome SYNC |
|
-
ASRock Key Master |
|
-
ASRock XFast LAN |
|
UEFI |
|
-
ASRock Full HD UEFI |
|
-
ASRock Instant Flash |
|
*These
utilities can be downloaded from ASRock Live Update & APP
Shop. |
|
Support
CD |
-
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar |
|
Accessories |
-
Quick Installation Guide, Support CD |
|
-
2 x SATA Data Cables |
|
-
1 x ASRock WiFi 2.4/5 GHz Antenna |
|
-
1 x Screw for M.2 Socket |
|
Hardware
Monitor |
-
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
CPU/Water Pump, Chassis/Water Pump Fans |
|
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
-
Voltage monitoring: +12V, +5V, +3.3V, CPU
Vcore |
|
Form
Factor |
-
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0
cm |
|
-
8 Layer PCB |
|
-
2oz Copper PCB |
|
OS |
-
Microsoft Windows 10
64-bit |
|
Certifications |
-
FCC, CE |
|
-
ErP/EuP ready (ErP/EuP ready power supply is
required) |
