All stock codes associated to this product
GVRX570GAMING8GDR2.0, GV-RX570GAMING-8GD-R2.0, GVRX570GAMING8GDR20, II40806
Gigabyte Radeon RX 570 GAMING 8G (rev. 2.0) rev. 1.0/1.1 Graphics
Card
Features
- Powered by Radeon RX 570
- WINDFORCE 2X with 90mm Blade Fan Design
- Ultra Durable Materials
- Intuitive AORUS Engine
Core Clock
- OC mode: up to 1255 MHz
- Gaming mode: up to 1244 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes,
heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan,
together delivering an effective heat dissipation capacity for higher
performance at lower temperatures.

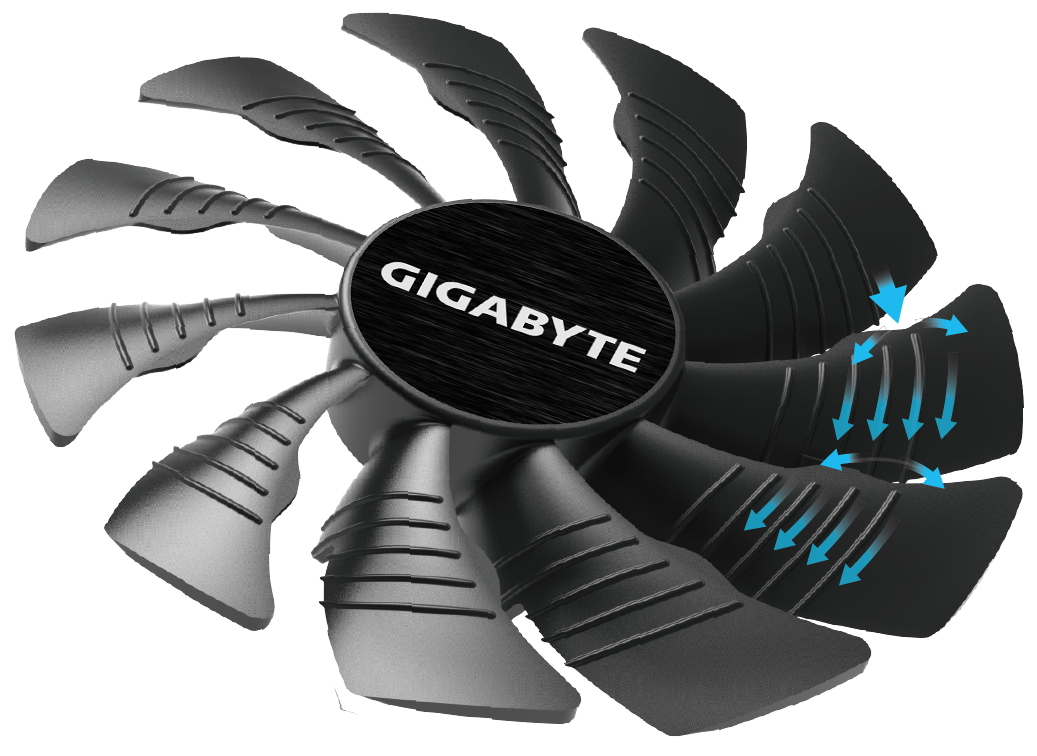

90MM UNIQUE BLADE FAN DESIGN
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow.

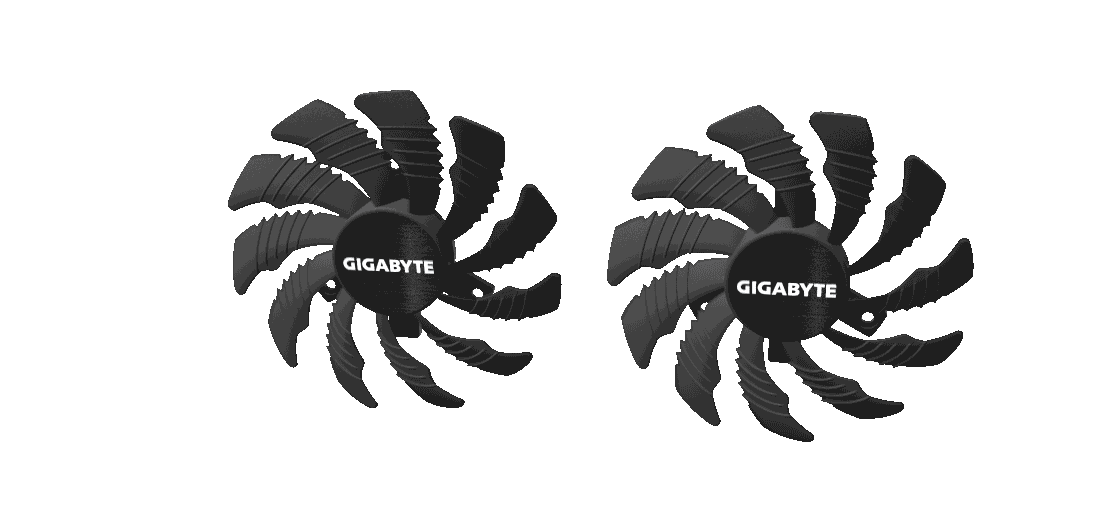

3D ACTIVE FAN
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming.

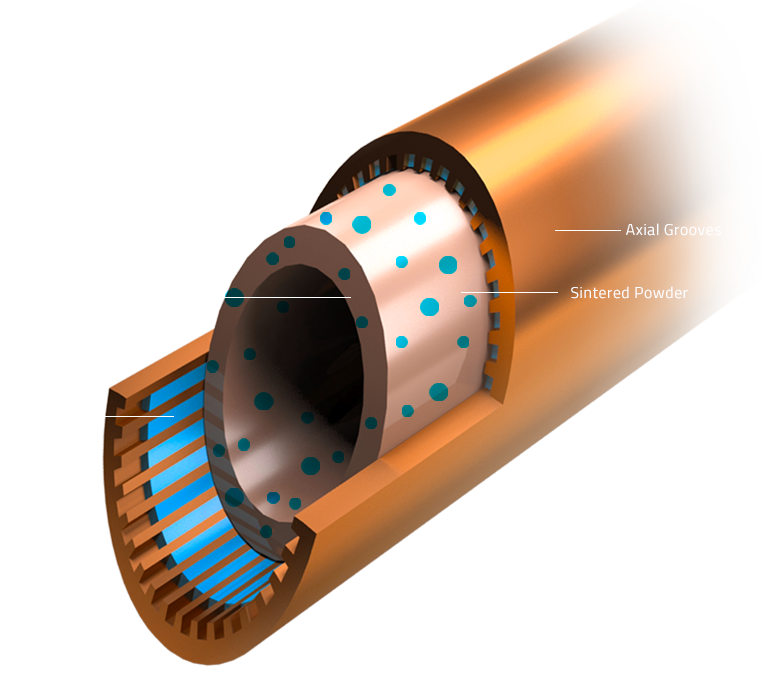

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to
efficiently manage the heat transfer between two solid interfaces which
increases cooling capacity.

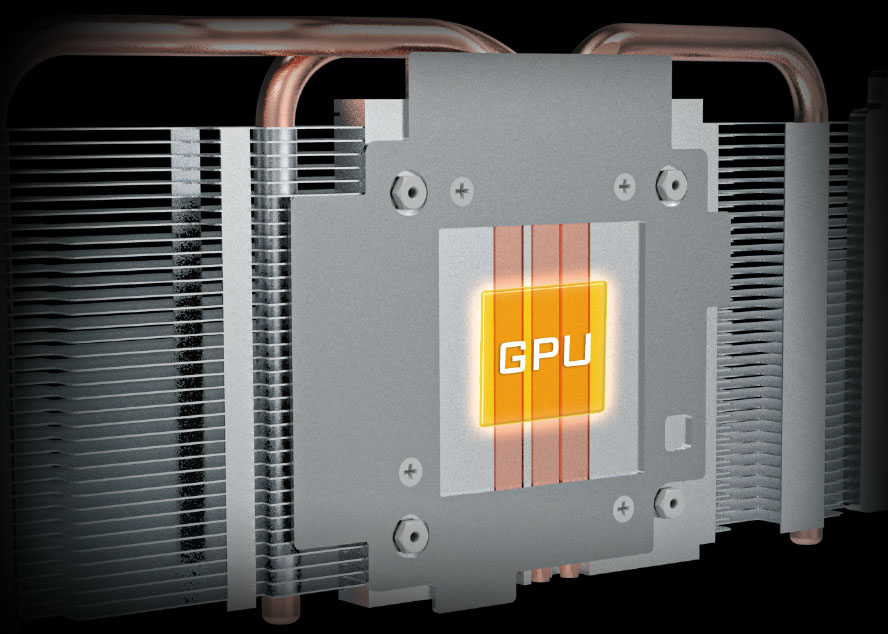

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with
the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a
large metal plate contact to ensure proper cooling.
BUILT FOR OVERCLOCKING WITH 6+1 POWER PHASES
6+1 power phases on the card make the MOSFET working at a lower temperature
and provide more stable voltage output.

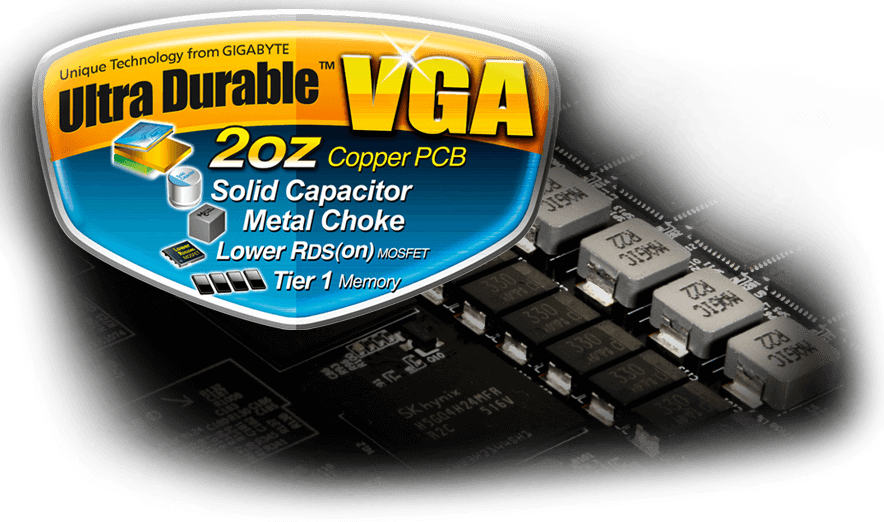

ULTRA DURABLE MATERIALS
Engineered with the highest-grade chokes and capacitors, this graphic card
delivers outstanding performance and durable system lifespan.
IN TOTAL COMMAND

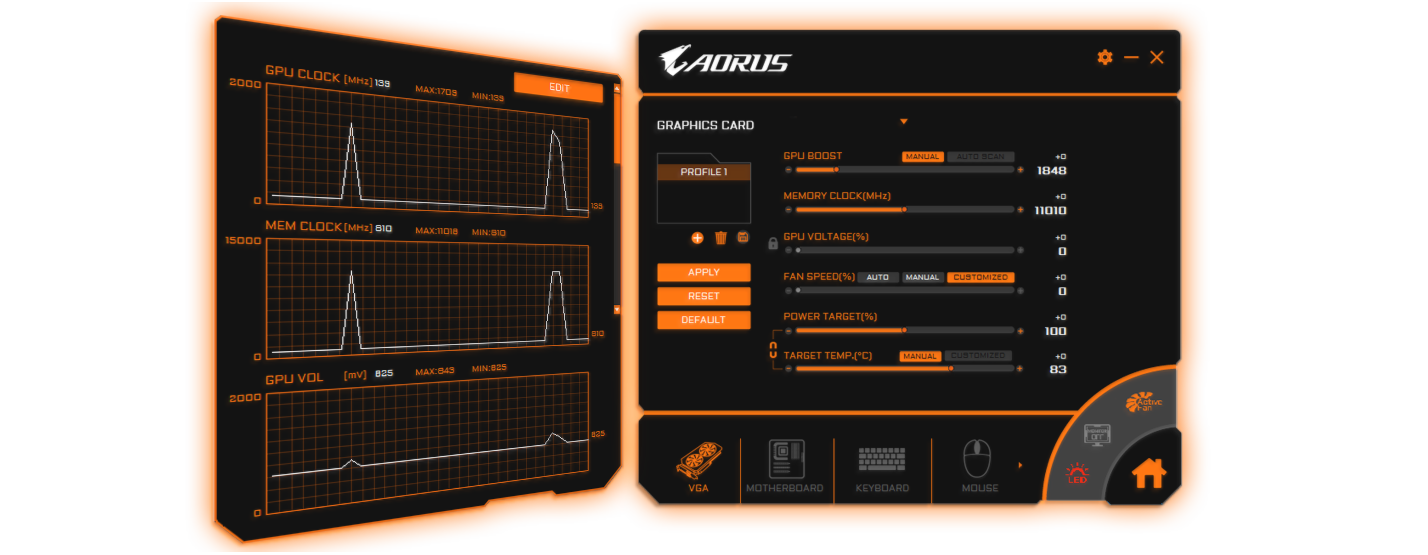

AORUS Engine
The cutting edge intuitive interface allows you to tune the clock speeds,
voltage, fan performance, and power target in real-time according to your own
gaming requirement.

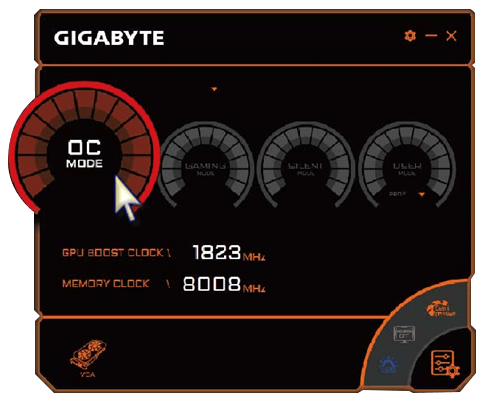

One-click Overclocking
With a simple click on AORUS engine utility, gamers can easily tune the card
to meet their various gaming requirements without any overclocking knowledge,
while saving the hassle of manual adjustment.
Radeon FreeSync Technology
No stuttering. No tearing. Just gaming. Radeon FreeSync technology puts an
end to choppy gameplay and broken frames with fluid, artifact-free performance
at virtually any framerate.
Radeon Software
- A seamless way to replay gameplay.
- Radeon Graphics sophisticated power management utility.
- Bringing cool and quiet frames on countless number of
games.
Specifications
|
Graphics
Processing |
Radeon
RX570 |
|
Core
Clock |
OC
mode: up to 1255 MHz |
|
Gaming
mode: up to 1244 MHz |
|
Stream
Processors |
2048 |
|
Process
Technology |
14
nm |
|
Memory
Clock |
7000
MHz |
|
Memory
Size |
8
GB |
|
Memory
Type |
GDDR5 |
|
Memory
Bus |
256
bit |
|
Card
Bus |
PCI-E
3.0 x 16 |
|
Digital
max resolution |
7680x4320 |
|
Multi-view |
5 |
|
Card
size |
H=36
L=232 W=116 mm |
|
PCB
Form |
ATX |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
Recommended
PSU |
450W |
|
Power
Connectors |
8
pin*1 |
|
Output |
HDMI
2.0b *1 |
|
Display
Port 1.4 *3 |
|
Package
Content |
1.
Graphics card quick guide |
|
2.
Driver
CD |
