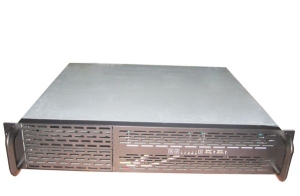

TGC-23400-2 400MM Depth Cheap 2U Rackmount Server Chassis



  • Security Server (DVR,VOD)
  • Web Servers(website/email/fire wall/VPN/storage)
  • Online game server(DB/Game/Gate/Log-in/web/SQL)
  • Server group
  • Storage NAS and SAN


  • 2U rackmount design,meets EIARS-310C standard.
  • 2 x 5.25" drive bay, 2 x 3.5 " drive bays (maxium 5)
  • Support Micro-ATX (9.6" X 9.6") motherboard
  • 3x50mm front ball bearing fans for better ventilation
  • Front accessible USB port
  • RoHS Compliant
  • Smooth border prevent lacerating your skin


Drive Bay

Supports up to two 3.5" drives and two 5.25" drive

Cooling Fan

3 x 50mm front ball bearing fans


Power ON/OFF x 1, System reset x 1


Power ON/OFF x 1, HDD x 1, NETWORK X 2


One front accessible USB port

Motherboard Compatibility

Support Micro-ATX (9.6" X 9.6"), ITX (6.7" X 6.7")

Power Supply Options

Standard ATX power supply

Dimensions ( W x D x H )

16.9" x 15.25" x 3.5" (430mm x 387.3mm x 88mm)


Single box


6.0 kg (NET)/ 6.5 kg (GROSS)

Environment Temperature

0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F


Relative Humidity

5% to 95%,non-condensing

Vibration ( 5-500 Hz )

1 Grms (Operating), 2 G (Non-Operating)


10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
