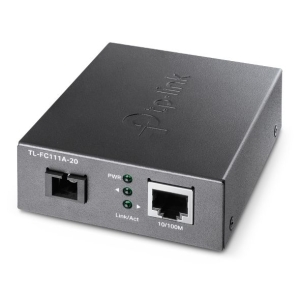

TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 m SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a
100M SC fiber port, which can convert between electrical and optical signals.
And long-distance data transmission through optical fiber can be applied to
commercial scenarios such as park security monitoring and wireless
networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology,
helping send and receive data at a distance of up to 20km (12.4 miles) over only
one fiber, which saves half of the cable deployment cost for customers.
TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm
wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair
by receiving data at wavelength 1550nm and sending data at wavelength
1310nm.
Specifications
|
NETWORK |
|
Standards
and Protocols |
IEEE802.3,
IEEE802.3i, IEEE802.3u |
|
ENVIRONMENT |
|
Operating
Temperature |
0C
to 50C (32F to 122F) |
|
Storage
Temperature |
-40C
to 70C (-40F to 158F) |
|
Operating
Humidity |
10%
to 90% RH non-condensing |
|
Storage
Humidity |
5%
to 90% RH non-condensing |
|
HARDWARE
FEATURES |
|
Network
Media |
100BASE-Tx:
2-pair UTP/STP of Cat. 5 or above (100 m) |
|
Power
Supply |
External
Power Adapter: 5 V/0.6 A |
|
LED |
PWR,
Link/Act |
|
Dimensions
( W x D x H ) |
94.5*73*27
mm |
|
Wave
Length |
1550
nm TX, 1310 nm RX |
|
ANTENNA |
|
Connector
Type |
1
SC fiber optic, 1 RJ45 jack |
|
MEDIA
CONVERTER & MODULE |
|
Standards
and Protocols |
IEEE
802.3, IEEE 802.3i, IEEE802.3u |
|
Basic
Function |
Auto-negotiation
of half-duplex / full-duplex transfer mode |
|
Full-duplex
flow control (IEEE 802.3x) |
|
Half-duplex
flow control (Backpressure) |
|
Extends
fiber distance up to 20km (12.4 miles) |
|
Ports |
1x
100M single SC/UPC port |
|
1x
10/100M RJ45 port (Auto MDI/MDIX) |
|
WDM
TX |
1550
nm |
|
WDM
RX |
1310
nm |
|
Network
Media 10BASE-T |
UTP
category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568
100 STP (maximum 100m) |
|
Network
Media 100BASE-T |
UTP
category 5, 5e cable (maximum 100m) |
|
EIA/TIA-568
100 STP (maximum 100m) |
|
Network
Media 100BASE-FX |
Single-mode
fiber |
|
LED
Indicators |
PWR,
Link/Act |
|
Dimensions
(W*D*H) |
3.7
2.9 1.1 in. |
|
(95
73 27 mm) |
|
Power
Supply |
External
Power Adapter: 5 V/0.6 A |
|
Safety
& Emission |
FCC,
CE, RoHS |
|
Fiber
Type |
9/125
m single-mode fber (20 km) |
|
Environment |
Operating
Temperature: 0~50 (32~122) |
|
Storage
Temperature: -40~70 (-40~158) |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90%
non-condensing |
