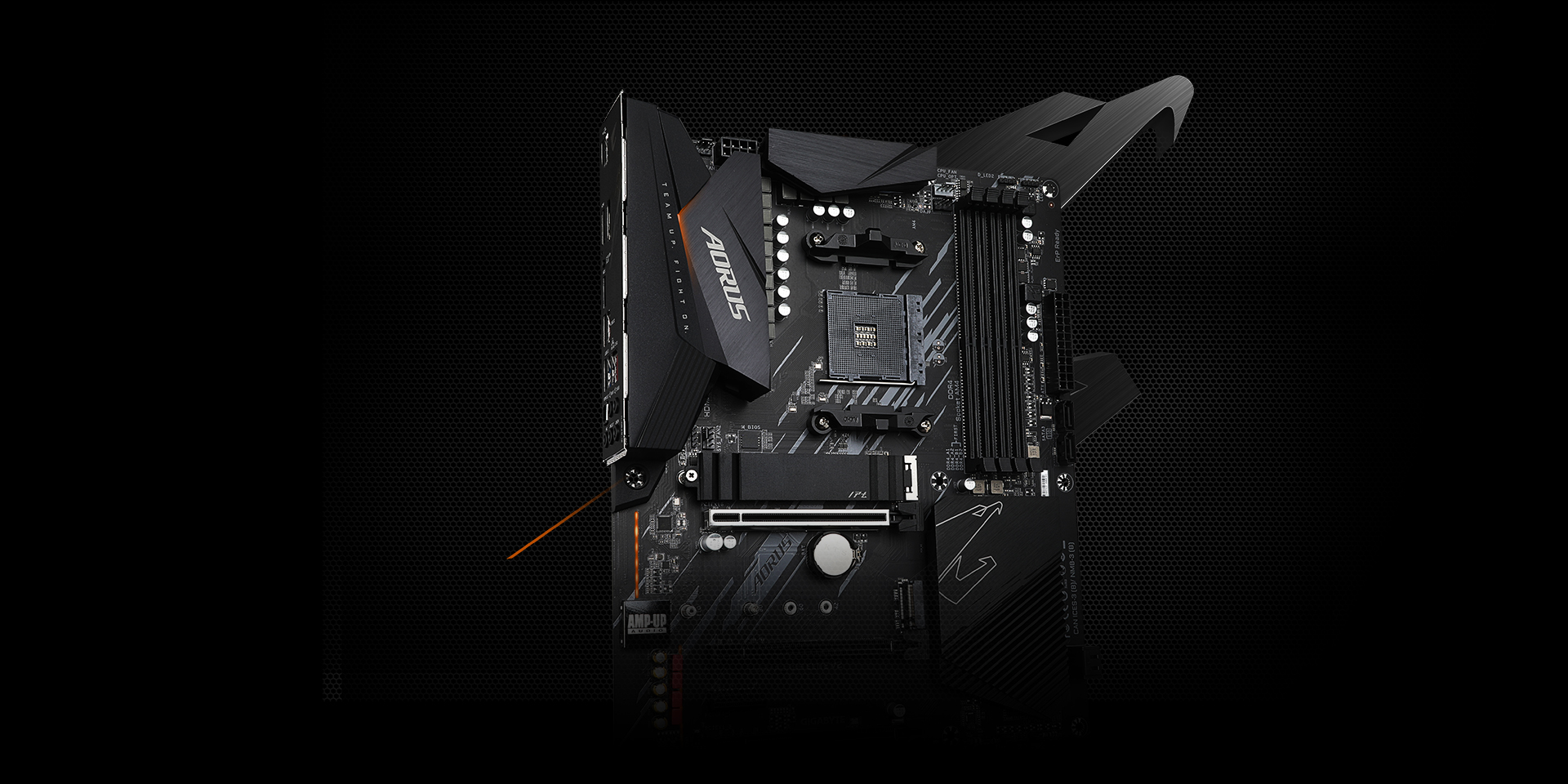

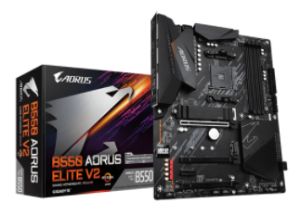

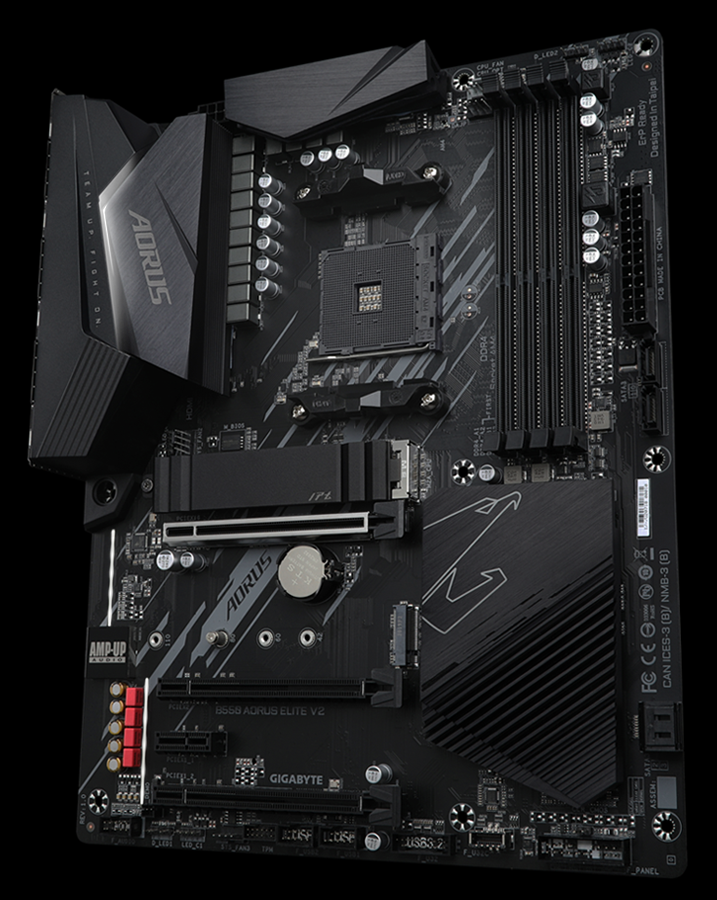

Gigabyte B550 AORUS ELITE V2 (rev. 1.0) Motherboard
Key Features
AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged
Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal
Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with
Radeon Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks

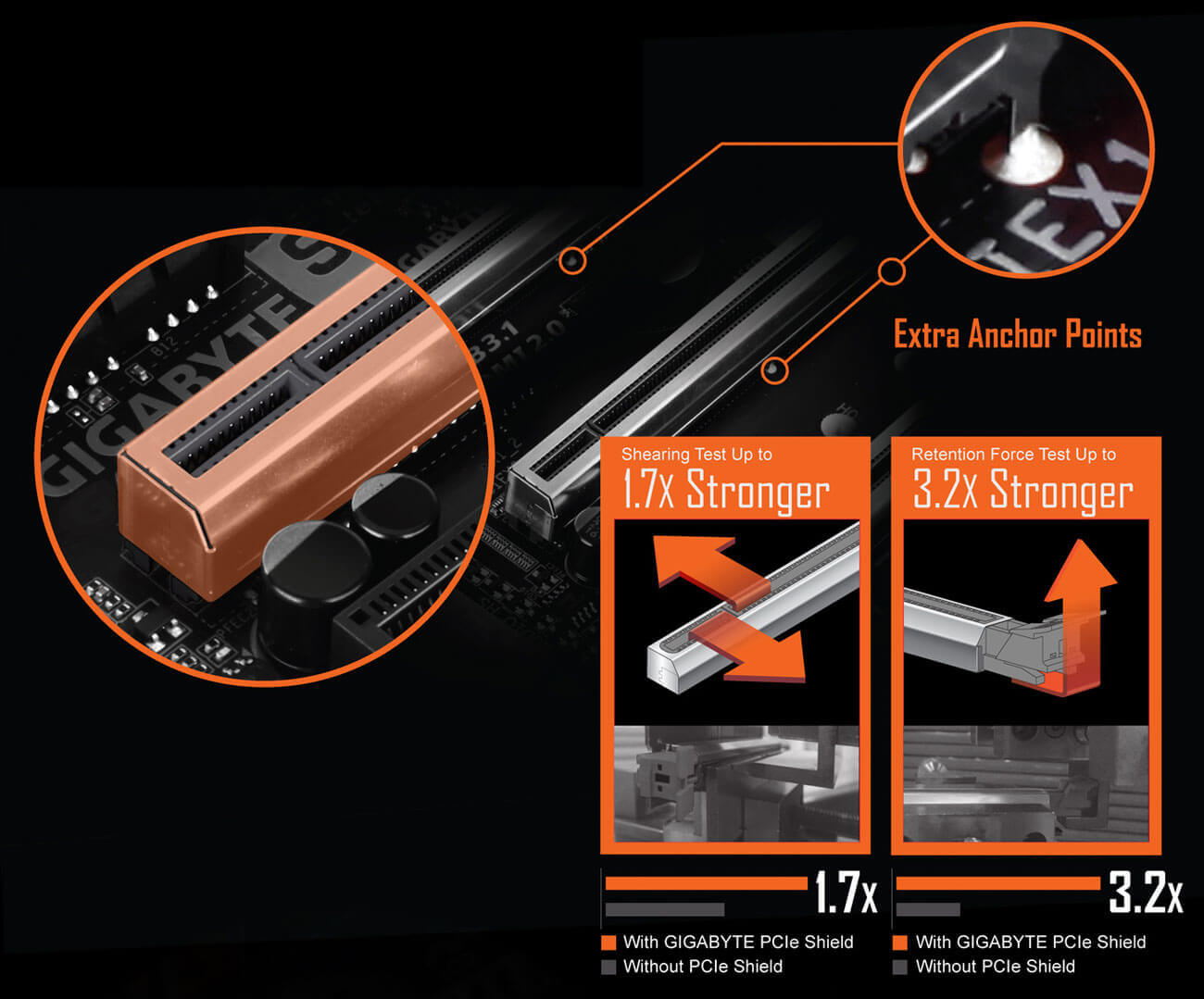

- Ultra Durable PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
- AMP-UP Audio with ALC1200 and WIMA Capacitors

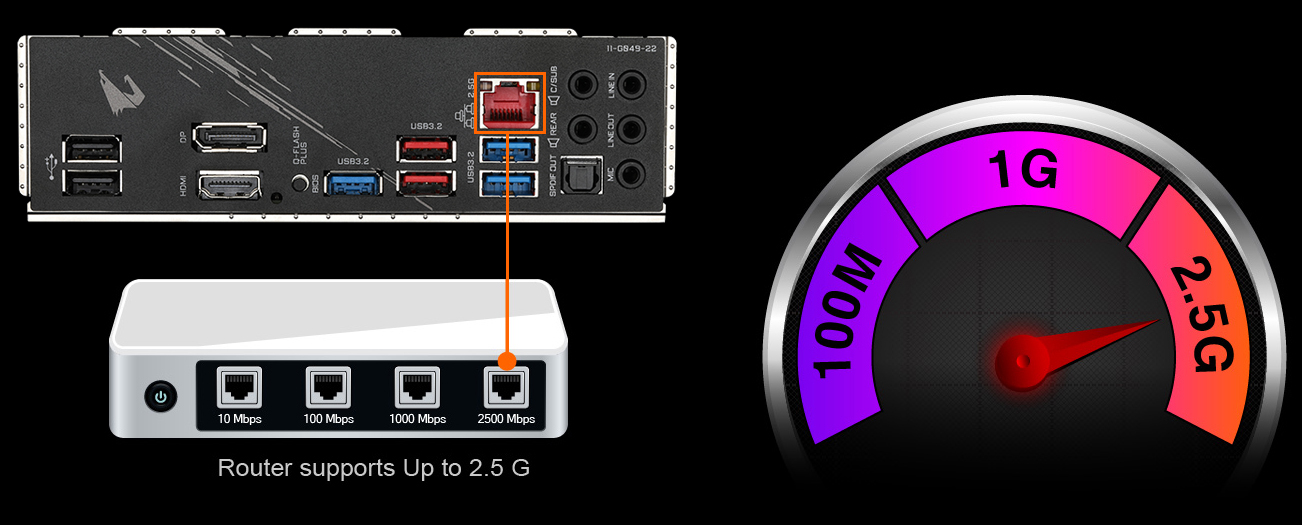

- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple
Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with
FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics
Card
- Pre-installed IO Shield for Easy and Quick Installation
In the dark, starless night, the falcon strikes fear into the heart of its
prey. Even with minimal visibility, the falcon pinpoints its prey and patiently
anticipates the perfect moment to swoop in for the kill. The falcon with its
laser sharp gaze dominates the darkness of night in the same manner that AORUS
Core Lighting illuminates the vast AORUS ecosystem.
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI
technology. StoreMI accelerates traditional storage devices to reduce boot times
and enhance the overall user experience. This easy-to-use utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the
read/write speeds of the device to match that of SSDs, bolsters data performance
for incredible value, and transforms the everyday PC to a performance driven
system.
ULTIMATE POWER DESIGN
To fully support the latest 3rd Gen AMD Ryzen processors, B550 AORUS
motherboards equip with the ultimate power solution which is power balanced,
digital and multiple phases. After countless experiments and testing, GIGABYTE
presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise
and never stop to achieve higher.

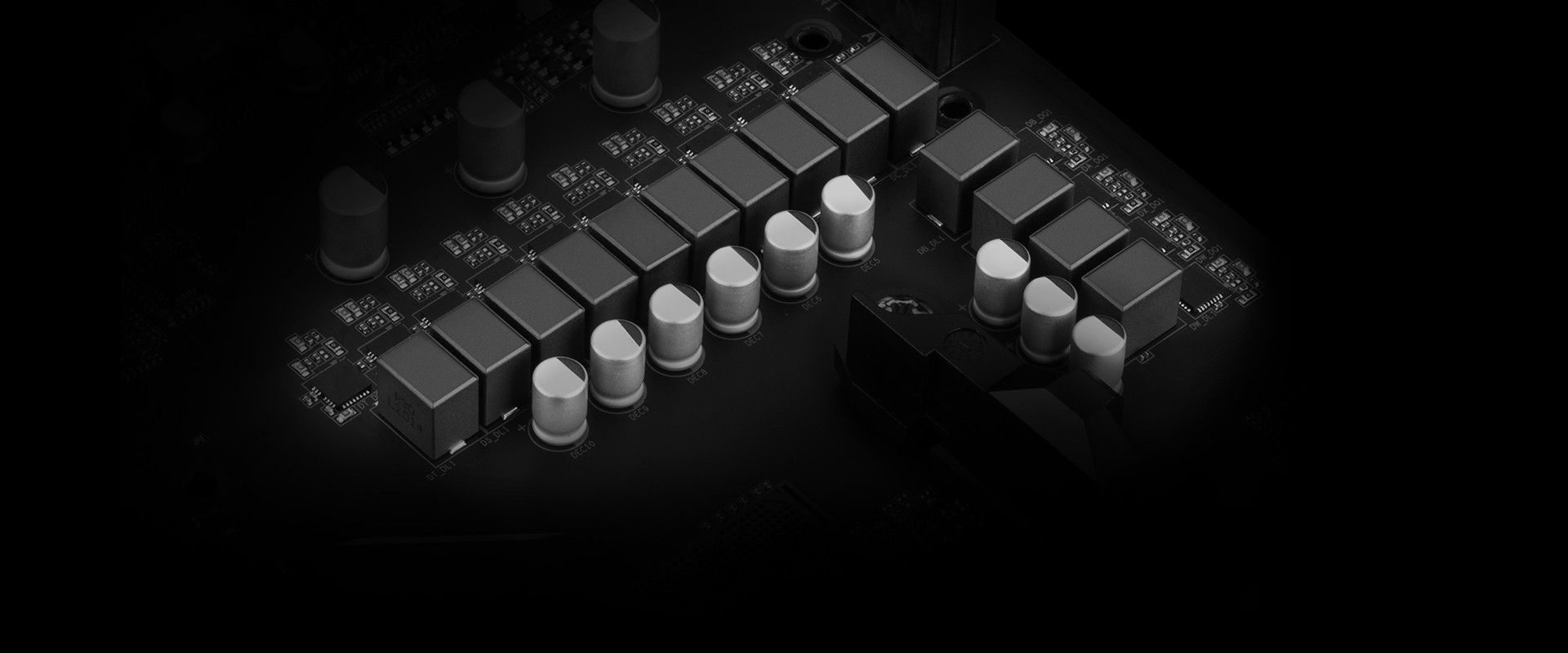

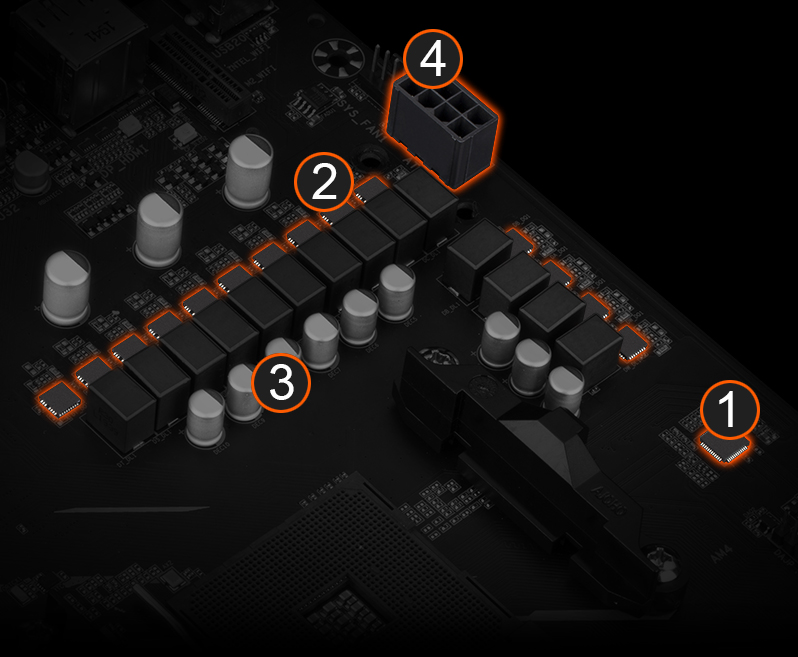

12*+2 Phases Digital Twin Power Design
- Digital PWM Controller delivers appropriate voltage to the CPU
- With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and
provides more balanced and efficient power delivery. With capability to handle
up to 700 Amps current in a total
- All-solid capacitors to improve Transient response and minimize
oscillation
- 24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE V2 motherboard uses a 12+2 phases Digital Twin Power Design
which includes PWM controller, DrMOS and Ferrite core choke as high quality
selected components. These 100% digital controller offer incredible precision in
delivering power to the motherboard's most power-hungry and energy-sensitive
components, allowing enthusiasts to get the absolute maximum performance from
3rd Gen AMD Ryzen processors.
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won't stop chasing a better computing
performance. We take care of it and implement on products. Protective and
optimized memory trace enhance the performance. Faster read and write are needed
to save time and improve efficiency. We offer plenty of M.2 storage with thermal
guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready
components get the B550 motherboards easier to upgrade.
ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the advanced thermal solution which
including Enlarged Heatsinks, High Quality Thermal Conductivity Pads and Thermal
Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading.
It provides lower temperatures for enthusiasts, overclockers and professional
gamers.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date
with the latest technology. B550 AORUS motherboards provide all next generation
network, storage, and WIFI connectivity to keep you up to speed.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience.
B550 motherboards are equipped with high quality audio components such as Hi-Fi
grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb
audio experience. The exclusive AORUS AMP-UP Audio technology makes for the
ideal onboard sound solution for the most demanding audiophiles.
DEFINITIVE AESTHETICS
B550 motherboards feature RGB FUSION 2.0 and offer the option to control
onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB
LEDs to make your PC unique and stylish.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high standard of
manufactured process. Needless to say, we use the best, high quality components
on B550 motherboards and reinforce each part of components to be solid and
durable.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. B550 motherboards
bundled several useful and intuitive software to help users to control every
aspect of motherboard.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
Specifications
|
CPU |
1.
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd
Gen Ryzen with Radeon Graphics Processors |
|
(Please
refer "CPU Support List" for more
information.) |
|
Chipset |
1.
AMD B550 |
|
Memory |
1.
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
of system memory |
|
2.
3rd Gen AMD Ryzen Processors: |
|
Support
for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200/2933/2667/2400/2133 MHz memory modules |
|
3.
3rd Gen AMD Ryzen with Radeon Graphics
processors: |
|
Support
for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) /3200/2933/2667/2400/2133 MHz memory
modules |
|
4.
Dual channel memory architecture |
|
5.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
modules |
|
6.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
7.
Support for Extreme Memory Profile (XMP) memory
modules |
|
(Please
refer "Memory Support List" for more
information.) |
|
Onboard
Graphics |
Integrated
in the 3rd Generation AMD Ryzen with Radeon Graphics
processors: |
|
1.
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60
Hz |
|
*
Support for DisplayPort 1.4 version, HDCP 2.3, and
HDR. |
|
2.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60
Hz |
|
*
Support for HDMI 2.1 version, HDCP 2.3, and
HDR. |
|
Maximum
shared memory of 16 GB |
|
Audio |
1.
Realtek ALC1200 codec |
|
2.
High Definition Audio |
|
3.
2/4/5.1/7.1-channel |
|
4.
Support for S/PDIF Out |
|
LAN |
1.
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100
Mbit) |
|
Expansion
Slots |
1.
1 x PCI Express x16 slot (PCIEX16), integrated in the
CPU: |
|
-
3rd Generation AMD Ryzen processors support PCIe 4.0 x16
mode |
|
-
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0
x16 mode |
|
*
For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16
slot. |
|
2.
1 x PCI Express x16 slot (PCIEX2), integrated in the
Chipset: |
|
-
Supporting PCIe 3.0 x2 mode |
|
3.
1 x PCI Express x16 slot (PCIEX1_2), integrated in the
Chipset: |
|
-
Supporting PCIe 3.0 x1 mode |
|
4.
1 x PCI Express x1 slot (PCIEX1_1), integrated in the
Chipset: |
|
-
Supporting PCIe 3.0 x1 mode |
|
Storage
Interface |
1.
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M
key, type 2242/2260/2280/22110 SSDs: |
|
-
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2
SSDs |
|
-
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and
PCIe 3.0 x4/x2 SSDs |
|
2.
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket
3, M key, type 2242/2260/2280/22110 SSDs: |
|
-
Supporting SATA and PCIe 3.0 x4/x2 SSDs |
|
3.
4 x SATA 6Gb/s connectors, integrated in the
Chipset: |
|
-
Support for RAID 0, RAID 1, and RAID 10 |
|
USB |
CPU: |
|
1.
2 x USB 3.2 Gen 2 Type-A ports (red) on the back
panel |
|
2.
2 x USB 3.2 Gen 1 ports on the back panel |
|
Chipset: |
|
1.
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the
internal USB header |
|
2.
1 x USB 3.2 Gen 1 port on the back panel |
|
3.
2 x USB 3.2 Gen 1 ports available through the internal USB
header |
|
4.
2 x USB 2.0/1.1 ports on the back panel |
|
Chipset+USB
2.0 Hub: |
|
1.
4 x USB 2.0/1.1 ports available through the internal USB
headers |
|
Internal
I/O Connectors |
1.
1 x 24-pin ATX main power connector |
|
2.
1 x 8-pin ATX 12V power connector |
|
3.
2 x M.2 Socket 3 connectors |
|
4.
4 x SATA 6Gb/s connectors |
|
5.
1 x CPU fan header |
|
6.
1 x water cooling CPU fan header |
|
7.
3 x system fan headers |
|
8.
1 x CPU cooler LED strip/RGB LED strip header |
|
9.
2 x addressable LED strip headers |
|
10.
2 x RGB LED strip headers |
|
11.
1 x front panel header |
|
12.
1 x front panel audio header |
|
13.
1 x USB Type-C port, with USB 3.2 Gen 1
support |
|
14.
1 x USB 3.2 Gen 1 header |
|
15.
2 x USB 2.0/1.1 headers |
|
16.
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S
module only) |
|
17.
1 x Clear CMOS jumper |
|

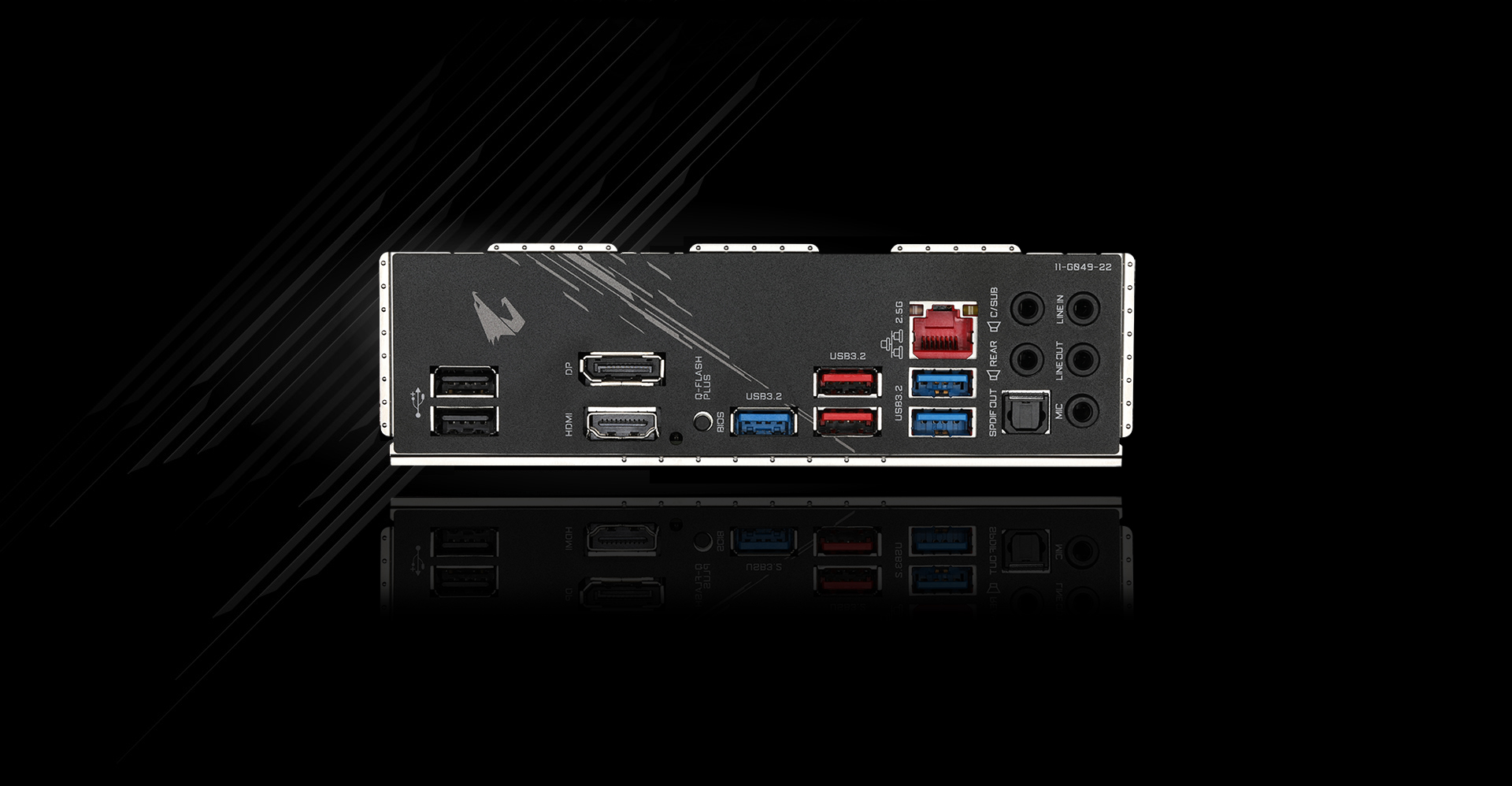

Back
Panel Connectors |
1.
1 x DisplayPort |
|
2.
1 x HDMI port |
|
3.
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
4.
3 x USB 3.2 Gen 1 ports |
|
5.
2 x USB 2.0/1.1 ports |
|
6.
1 x Q-Flash Plus button |
|
7.
1 x RJ-45 port |
|
8.
1 x optical S/PDIF Out connector |
|
9.
5 x audio jacks |
|
I/O
Controller |
1.
iTE I/O Controller Chip |
|
H/W
Monitoring |
1.
Voltage detection |
|
2.
Temperature detection |
|
3.
Fan speed detection |
|
4.
Water cooling flow rate detection |
|
5.
Overheating warning |
|
6.
Fan fail warning |
|
7.
Fan speed control |
|
*
Whether the fan speed control function is supported will depend on the fan
you install. |
|
BIOS |
1.
1 x 256 Mbit flash |
|
2.
Use of licensed AMI UEFI BIOS |
|
3.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 |
|
Unique
Features |
1.
Support for APP Center |
|
*
Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
@BIOS |
|
EasyTune |
|
Fast
Boot |
|
Game
Boost |
|
ON/OFF
Charge |
|
RGB
Fusion |
|
Smart
Backup |
|
System
Information Viewer |
|
2.
Support for Q-Flash Plus |
|
3.
Support for Q-Flash |
|
4.
Support for Xpress Install |
|
Bundled
Software |
1.
Norton Internet Security (OEM version) |
|
2.
Realtek 8125 Gaming LAN Bandwidth Control
Utility |
|
Operating
System |
1.
Support for Windows 10 64-bit |
|
Form
Factor |
1.
ATX Form Factor; 30.5cm x 24.4cm |
|
Remark |
1.
Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website. |
|
2.
Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will
update them on the GIGABYTE
website. |
