Gigabyte GeForce RTX 3060 Ti EAGLE OC 8G Video Card
Features
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX 3060 Ti
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 100mm unique blade fans
- RGB Fusion 2.0
- Protection back plate
CORE CLOCK
- 1695 MHz (Reference Card: 1665 MHz)

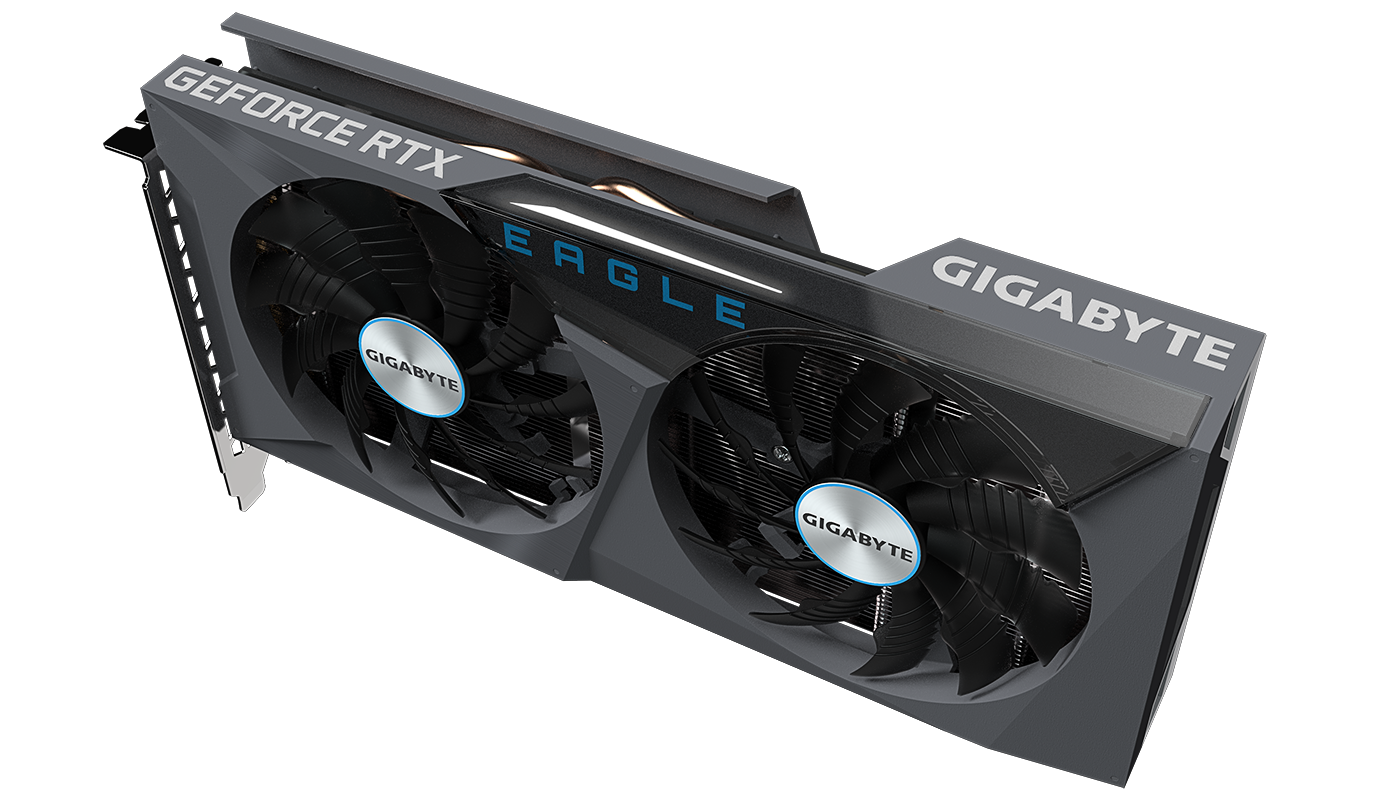

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate
spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and
Screen cooling, which together provide high efficiency heat
dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase
air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the
airflow direction between the two fans is the same, reducing the turbulence and
enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off
when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through
the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the
life of double ball bearing, and is quieter.

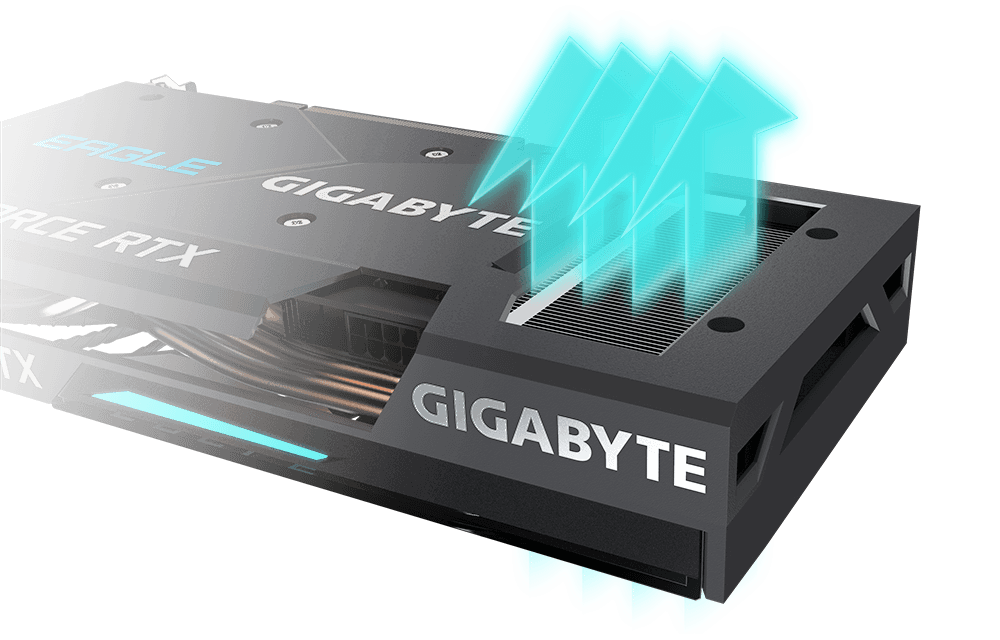

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better
heat dissipation.

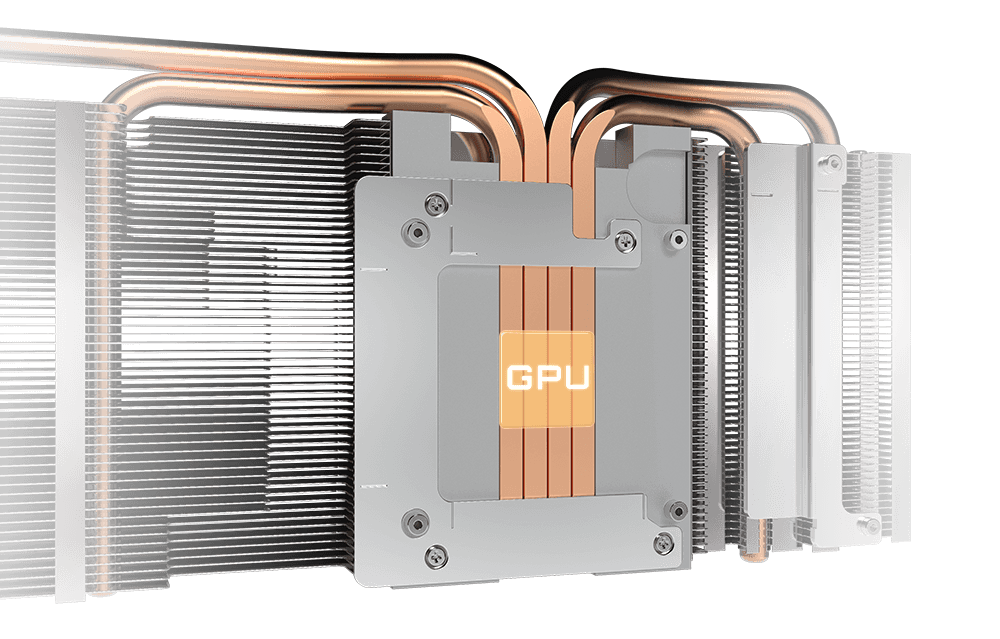

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with
the GPU. The heat pipe also covers the VRAM through a large metal plate contact
to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can
choose lighting effects or synchronize with other AORUS devices.

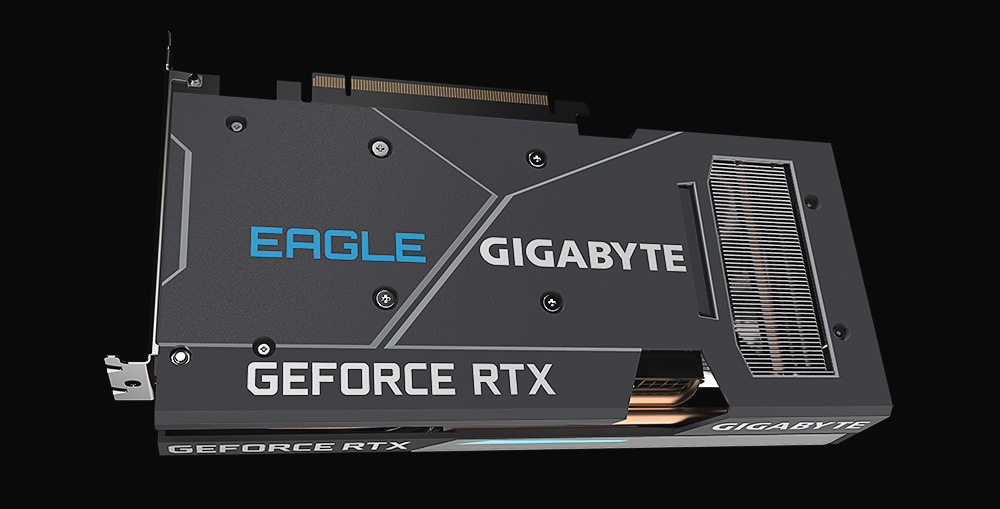

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the
structure of the graphics card to provide complete protection.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert
gamers by flashing light.

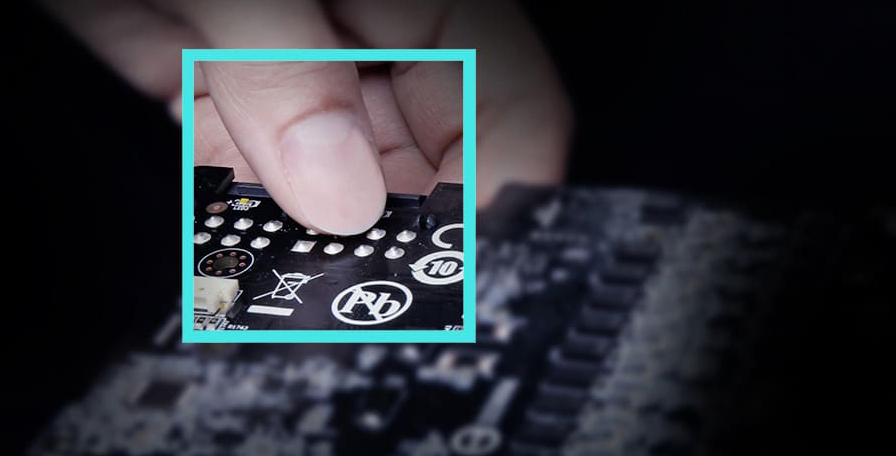

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards
and eliminates sharp protrusions of the solder connectors seen on the
conventional PCB surface. This friendly design prevents your hands from getting
cut or inadvertently damaging components when making your build.

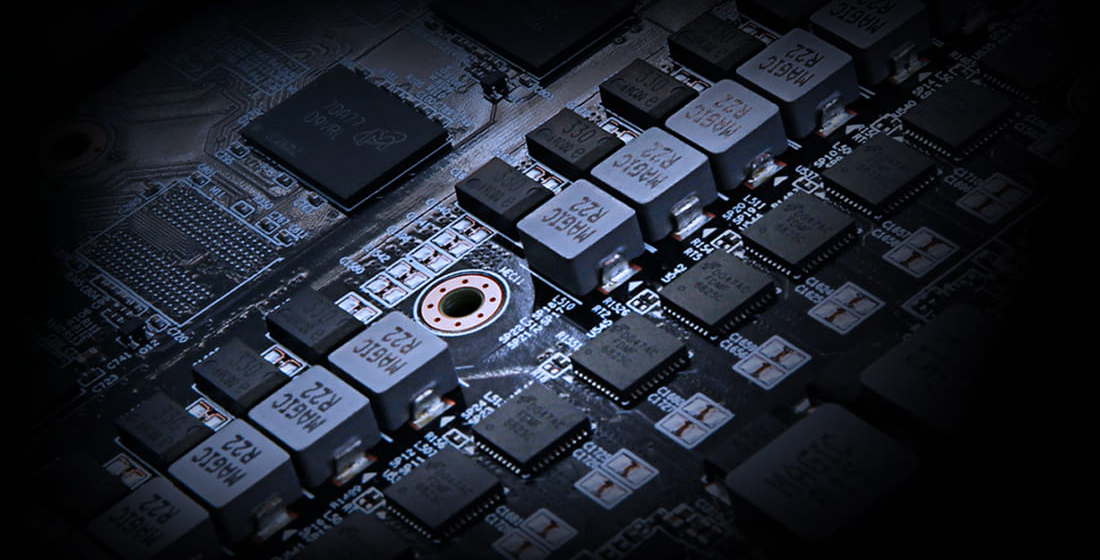

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to
operate at lower temperature, and over-temperature protection design and load
balancing for each MOSFET, plus the Ultra Durable certified chokes and
capacitors, to provide excellent performance and longer system
life.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed,
voltage, fan performance and power target in real-time according to your games
requirements.
Specifications
|
Graphics
Processing |
GeForce
RTX 3060 Ti |
|
Core
Clock |
1695
MHz (Reference Card: 1665 MHz) |
|
CUDA
Cores |
4864 |
|
Memory
Clock |
14000
MHz |
|
Memory
Size |
8
GB |
|
Memory
Type |
GDDR6 |
|
Memory
Bus |
256
bit |
|
Memory
Bandwidth (GB/sec) |
448
GB/s |
|
Card
Bus |
PCI-E
4.0 x 16 |
|
Digital
max resolution |
7680x4320@60Hz |
|
Multi-view |
4 |
|
Card
size |
L=242
W=124 H=41 mm |
|
PCB
Form |
ATX |
|
DirectX |
12
Ultimate |
|
OpenGL |
4.6 |
|
Recommended
PSU |
600W |
|
Power
Connectors |
8
pin*1 |
|
Output |
DisplayPort
1.4a *2 |
|
HDMI
2.1 *2 |
|
SLI
Support |
N/A |
|
Accessories |
Quick
guide |
