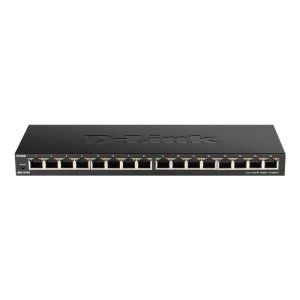

D-Link DGS-1016S 16-Port Gigabit Desktop Switch
Overview
- 16 Gigabit ports for high-speed wired connections
- Plug-and-play for effortless installation
- IEEE 802.3az-compliant to reduce power consumption
- Auto power reduction when port has little or no traffic
- Cable-length detection enhances energy conservation
- Energy-efficient design reduces heat generated and allows silent
operation
- IEEE 802.1p QoS traffic prioritization to optimize performance
Slim Dimensions, Hefty Performance
The DGS-1016S 16-Port Gigabit Desktop Switch is ideal for home and small to
medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the
network. Fully IEEE 802.3az-compliant with advanced energy-saving features, the
DGS-1016S packs full functionality and Gigabit performance into a slim yet
sturdy metal design.
Good for the Planet, Good for your Budget
The eco-friendly DGS-1016S is compliant with Energy-Efficient Ethernet (IEEE
802.3az) standards to save energy and reduce heat emissions without sacrificing
performance and functionality. When low-traffic or idle interface ports are
detected, the DGS-1016S automatically transitions them into a low-power state,
substantially reducing overall device power consumption. Furthermore, the
DGS-1016S can determine the approximate length of cables attached to each port
to apply just enough power for data transmission on that link, saving even more
power while lowering total cost of ownership (TCO).
Soundless Performance
The DGS-1016S features a fanless design for silent operation, reduced energy
consumption, and enhanced reliability by eliminating a common point of
failure.
Prioritize Whats Important with Quality of
Service
Quality of Service (QoS) support also enhances your networks efficiency. QoS
cleverly prioritizes network traffic so that time-sensitive data, such as VoIP
or surveillance footage, are unaffected even during bursts of high-volume
traffic. This allows for an all-round smoother, uninterrupted network
experience.
Specifications
|
Switching
Capacity |
32
Gbps |
|
Max
Packet Forwarding Rate |
1,488,000
pps per port |
|
Jumbo
Frame |
9,216
bytes |
|
Number
of Queues |
8 |
|
1000Base-T
Interface |
16 |
|
Auto
MDIMDIX |
Yes |
|
8023x
Flow Control |
Yes |
|
MAC
Address Table Size |
8K |
|
Store
Forwarding Forwading |
Yes |
|
Dimension |
280
x 110 x 25 mm (11.02 x 4.33 x 0.98 in) |
|
Weight |
0.77
kg (1.7 lbs) |
|
Operation
Temperature |
0
to 40 C (32 to 104 F) |
|
Storage
Temperature |
-40
to 70 C (-40 to 158 F) |
|
Operation
Humidity |
10%
to 90% non-condensing |
|
Storage
Humidity |
5%
to 95% non-condensing |
|
Maximum
Power Consumption |
8.89
W |
|
Standby
Power Consumption |
3.37
W |
|
Maximum
Heat Dissipation |
30.32
BTU/h |
|
MTBF |
564,658
hours |
|
Power
Input |
12
V / 1 A |
|
Packet
Buffer Size |
512
KB |
|
FAN |
Fanless |
|
Comply
with RoHS 6 |
Yes |
|
Energy
Efficiency Ethernet EEE |
Yes |
|
Power
Saving By Link Status |
Yes |
|
Power
Saving By Cable Length |
Yes |
