All stock codes associated to this product
USW-48, USW48, NHUUSW48, NHU-USW-48, 810010072481, 810010072528

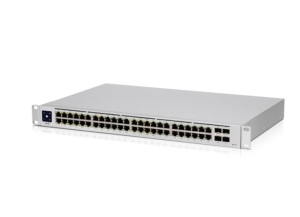

Ubiquiti UniFi Switch 48 PoE
Overview
48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32)
802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi
switching.
The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit
Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It
provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber
uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch
LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app
support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching
protocols and features, including operation mode (switching, mirroring, or
aggregate) per port. The UniFi Network Controller and mobile app allow admins to
configure and monitor virtually all of the switch features in a graphical user
interface from anywhere.
Features
- (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
- (4) 1G SFP Ports
- 1.3" touch LCM
- Managed by UniFi Controller
- 240W Power supply
Managed by UniFi Network Controller version: 5.12.32 or higher
Specifications
|
Specifications |
|
|
Dimensions |
442.4
x 285 x 43.7 mm |
|
(17.42
x 11.22 x 1.72") |
|
Weight |
4.52
kg (9.97 lb) |
|
With
Rackmount Brackets |
4.61
kg (10.16 lb) |
|
Interfaces |
|
|
Networking |
(48)
10/100/1000 RJ45 Ports |
|
(4)
1G SFP Ethernet Ports |
|
Management |
Ethernet
In-Band |
|
Power
Method |
100-240VAC,
50/60 Hz, Universal Input |
|
Power
Supply |
AC/DC,
Internal, 240W |
|
Supported
Voltage Range |
100
to 240VAC |
|
Max.
Power Consumption (Excluding PoE Output) |
195W |
|
LEDs |
|
|
RJ45
Data Ports |
PoE;
Speed/Link/Activity |
|
SFP
Data Ports |
Link/Activity |
|
ESD/EMP
Protection |
Air:
16 kV, Contact: 12 kV |
|
Shock
and Vibration |
ETSI300-019-1.4
Standard |
|
Operating
Temperature |
-5
to 40 C (23 to 104 F) |
|
Operating
Humidity |
10
to 90% Noncondensing |
|
Certifications |
CE,
FCC, IC |
|
POE |
|
|
PoE
Interfaces |
POE+
IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
Ports
1-32 |
|
Max.
PoE Wattage per Port by PSE |
32W |
|
802.3at |
|
Voltage
Range 802.3af Mode |
44-57V |
|
Voltage
Range 802.3at Mode |
50-57V |
Networking
