HARDWARE
FEATURES |
Standards
and Protocols |
IEEE
802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE
802.1q |
TCP/IP,
DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN,
SNMP |
Interface |
1
Fixed Gigabit WAN Port |
1
Fixed Gigabit LAN Port |
3
Changeable Gigabit WAN/LAN Ports |
Network
Media |
10BASE-T:
UTP category 3, 4, 5 cable (Max 100m) |
EIA/TIA-568
100 STP (Max 100m) |
100BASE-TX:
UTP category 5, 5e cable (Max 100m) |
EIA/TIA-568
100 STP (Max 100m) |
1000BASE-T:
UTP category 5, 5e, 6 cable (Max 100m) |
Button |
Reset
Button |
Power
Supply |
External
9V/0.9A DC Adapter |
Flash |
SPI
16MB |
DRAM |
128
MB |
LED |
PWR,
SYS, WAN, LAN |
Dimensions
( W x D x H ) |
6.2
4.0 1.0 in |
(158
101 25mm) |
PERFORMANCE |
Concurrent
Session |
25,000 |
IPsec
VPN Throughput |
41.5
Mbps (EAP-SHA1-AES256) |
BASIC
FUNCTIONS |
WAN
Connection Type |
Static/Dynamic
IP |
PPPoE |
PPTP |
L2TP |
DHCP |
DHCP
Server/Client |
DHCP
Address Reservation |
Multi-net
DHCP*** |
Multi-IP
Interfaces*** |
MAC
Clone |
Modify
WAN MAC Address** |
IPTV |
IGMP
v2/v3 Proxy |
VLAN |
802.1Q
VLAN |
ADVANCED
FUNCTIONS |
ACL |
IP/Port/Protocol/Domain
Name Filtering |
Advanced
Routing |
Static
Routing** |
Policy
Routing |
Bandwidth
Control |
IP
or Port-based Bandwidth Control |
Guarantee
& Limited Bandwidth |
Load
Balance |
Intelligent
Load Balance |
Application
Optimized Routing |
Link
Backup (Timing**, Failover) |
Online
Detection |
NAT |
One-to-One
NAT** |
Multi-Net
NAT*** |
Virtual
Server |
Port
Triggering** |
NAT-DMZ |
FTP/H.323/SIP/IPSec/PPTP
ALG, UPnP |
Security |
SPI
Firewall |
VPN
Passthrough |
DoS
Defence, Ping of Death |
Local
Management |
Session
Limit |
IP-based
Session Limit |
VPN |
IPsec
VPN |
20
IPsec VPN Tunnels |
LAN-to-LAN
or Client-to-LAN |
Main,
Aggressive Negotiation Mode |
DES,
3DES, AES128, AES192, AES256 Encryption
Algorithm |
IKEv1/v2*** |
MD5,
SHA1 Authentication Algorithm |
NAT
Traversal (NAT-T) |
Dead
Peer Detection (DPD) |
Perfect
Forward Secrecy (PFS) |
PPTP
VPN |
PPTP
with MPPE Encryption |
PPTP
VPN Server or Clients for (10 clients) |
L2TP
VPN |
L2TP
over IPSec |
L2TP
VPN Server or Clients (10 clients) |
OpenVPN |
OpenVPN
Server or Client (for 10 clients)*** |
SECURITY |
Attack
Defense |
TCP/UDP/ICMP
Flood Defense |
Block
TCP Scan (Stealth FIN/Xmas/Null) |
Block
Ping from WAN |
Filtering |
WEB
Group Filtering** |
URL
Filtering |
Web
Security** |
ARP
Inspection |
Sending
GARP Packets** |
ARP
Scanning** |
IP-MAC
Binding** |
Access
Control |
Source
and Destination IP Access Control |
AUTHENTICATION |
Web
Authentication |
Captive
web portal authentication styles |
No
Authentication |
Simple
Password*** |
HotspotLocal
User / Voucher*** / SMS*** / Radius*** |
External
Radius Sever*** |
External
Portal Sever*** |
Facebook*** |
MANAGEMENT |
Omada
App |
Yes |
Centralized
Management |
Omada
Cloud-Based Controller |
Omada
Hardware Controller (OC200, OC300) |
Omada
Software Controller |
Service |
Dynamic
DNS (Dyndns, No-IP) |
Cloud
Access |
Cloud
access through Omada SDN controllers |
Maintenance |
Time
Setting |
Diagnostic |
Firmware
Upgrade |
Factory
Defaults/Reboot |
Backup&Restore |
System
Log |
Remote
Management |
Statistics |
Controller
Settings |
SNMP |
Management
Features |
Automatic
Device Discovery*** |
Intelligent
Network Monitoring*** |
Abnormal
Event Warnings*** |
Unified
Configuration*** |
Reboot
Schedule*** |
Captive
Portal Configuration*** |
ZTP
(Zero-Touch Provisioning) |
OTHERS |
Certification |
CE,
FCC, RoHS |
Package
Contents |

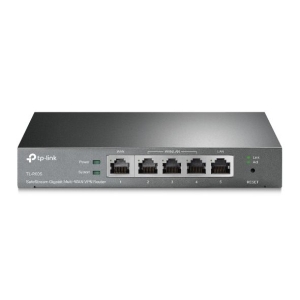

TL-R605 |
Power
Adapter |
RJ45
Ethernet Cable |
Quick
Installation Guide |
Environment |
Operating
Temperature: 040 (32104 ) |
Storage
Temperature: -4070 (-40158 ) |
Operating
Humidity: 1090% RH non-condensing |
Storage
Humidity: 590% RH
non-condensing |
