All stock codes associated to this product
ROGSTRIXRTX3090O24GWHITE, ROG-STRIX-RTX3090-O24G-WHITE, 5079081, VCARTX3090O24GRWH, VCA-RTX3090-O24G-RWH, 90YV0F96M0NM00, 90YV0F96-M0NM00, 4711081002635

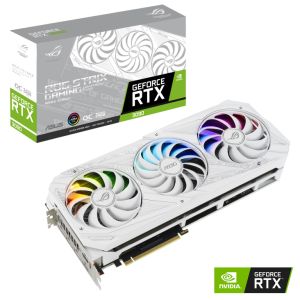

Asus ROG-STRIX-RTX3090-O24G-WHITE Video Card
Key Features
TAKE FLIGHT
This limited edition of the ROG Strix GeForce RTX 3090 features a completely
white colorway on top of all the generational improvements to the ROG Strix
series. Nows your chance to build a high-end white-themed gaming rig with the
latest in graphics technology.
AXIAL-TECH UPGRADES
Our Axial-tech fan design is optimized for a new, larger heatsink that
features more fins and surface area than last gen. The blade count is increased
on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The
barrier ring on the side fans is slimmed down to allow for more lateral intake
and to provide better airflow through the cooling array. The center fans extra
blades and full-height ring provide boosted static pressure to blast air
directly onto the GPU heat spreader.
NEW DIRECTIONS
To bolster the specialized roles of the center and auxiliary fans, the
rotational direction of the center fan is reversed. This reduces air turbulence
inside the cooling array for another boost to overall thermal performance. The
fans also shut off completely when card power consumption is low and the GPU
temperature falls beneath 50 Celsius, keeping noise levels down when the system
is idling or under a light load.
MAXCONTACT
To get heat up off the die and into the heatsink array, weve engaged
MaxContact technology to polish the surface of the heat spreader and improve
smoothness at the microscopic level. The extra flatness allows for better
contact with the die for enhanced thermal transfer.
2.9-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin
stack that fills a large 2.9-slot footprint. Increasing the heatsink size
compared to the last generation provides more thermal headroom to account for
the new high-performance chipset.
WHITE EDITION
The shroud, fans, metal accents, and backplate are carefully color matched to
give the Strix an aesthetic tailored for ice-white builds.
ITS COOLER OUT BACK
Flipping the card around reveals more design improvements. A wide backplate
vent and shortened PCB allows hot air to escape towards chassis exhaust fans
instead of being recycled by the GPUs circulating cooler design. A GPU bracket
provides extra stability to the critical connection between die and heat
spreader. The I/O bracket is made from stainless steel to protect ports and
provide a more secure mount. A conveniently placed Dual Bios switch allows quick
selection between performance and quiet mode for basic customization of the
cards default behavior without software.
FUNCTIONAL FRONT
Careful attention has been paid to the front of the GPU, as its the most
visible part of the card in typical configurations. An addressable RGB element
can be customized with Armoury Crate to create a uniform look along with other
ROG components. To fulfill the power demands of the GeForce RTX 3090, three
8-pin power connectors are present, along with an onboard circuit that monitors
PSU rail voltage. The circuit is fast enough to catch any transients that result
in the rail voltage dropping too low. If that happens, a red LED will light up
to indicate a power supply issue. The Strixs reinforced metal frame is also
visible here, adding a literal layer of durability.

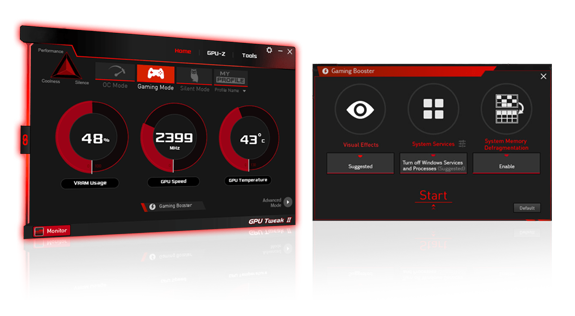

GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level.
It allows you to tweak critical parameters including GPU core clocks, memory
frequency, and voltage settings, with the option to monitor everything in
real-time through a customizable on-screen display. Advanced fan control is also
included along with many more features to help you get the most out of your
graphics card.
We've partnered with wtfast to help you to play free from lag, latency
issues, and lost packets. With a 6-month subscription to the wtfast Gamers
Private Network, you'll enjoy lower ping for a smoother, more fluid online
gaming experience. Buy an ASUS graphics card - and don't be left waiting!
XSplit offers a premium streaming experience with in-game annotations and
other advanced features. Enjoy a free license with the purchase of select ASUS
graphics cards. See you online!
Quantumcloud is a simple and secure service that lets you effortlessly earn
extra money by putting your idle GPU to work. Earnings are automatically
transferred to your WeChat or PayPal account, and your privacy remains intact
because Quantumcloud doesn't collect your personal data. Get started making
money today!
Specifications
Graphic
Engine |
NVIDIA
GeForce RTX 3090 |
Bus
Standard |
PCI
Express 4.0 |
OpenGL |
OpenGL4.6 |
Video
Memory |
24GB
GDDR6X |
Engine
Clock |
OC
Mode - 1890 MHz (Boost Clock) Gaming Mode - 1860 MHz (Boost
Clock) |
CUDA
Core |
10496 |
Memory
Speed |
19.5
Gbps |
Memory
Interface |
384-bit |
Resolution |
Digital
Max Resolution 7680 x 4320 |
Interface |
Yes x 2 (Native HDMI
2.1) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP
Support Yes (2.3) |
Maximum
Display Support |
4 |
NVlink/
Crossfire Support |
Yes |
Accessories |
1
x Speedsetup manual 1 x Collection card 1 x ROG ruler 1 x ROG Velcro Hook
& Loop 1 x ROG ring |
Software |
ASUS
GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please
download all software from the support site. |
Dimensions |
12.53
" x 5.51 " x 2.27 " Inch 31.85 x 14.01 x 5.78
Centimeter |
Recommended
PSU |
750W |
Power
Connectors |
3
x 8-pin |
Slot |
2.9
Slot |
Note |
*
Our wattage recommendation is based on a fully overclocked GPU and CPU
system configuration. For a more tailored suggestion, please use the
Choose By Wattage feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
