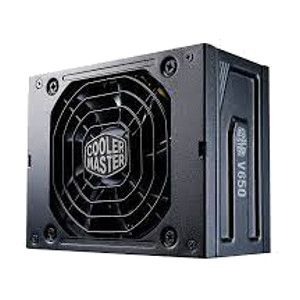

CoolerMaster V650 SFX Gold Power Supply - SFX 12V Ver. 3.42, 92mm Fan, Fully Modular, 80PLUS Gold
Fluid Dynamic Bearing, SATA(8), Peripheral 4-Pin Connectors(4), PCI-E 6+2 Pin Connectors(4)

No Longer Available

Part Number:

494302

(?) Brand:

CoolerMaster Web Site

Manuf No:

MPY-6501-SFHAGV-AU
MPY6501SFHAGVAU

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

MPY6501SFHAGVAU, MPY-6501-SFHAGV-AU, 4948023, II111760

Coolermaster V650 SFX Gold Power Supply

Overview

80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Full-modular Cabling
10 Year Warranty

Specifications

MODEL	MPY-6501-SFHAGV
ATX VERSION	SFX 12V Ver. 3.42
PFC	Active PFC
INPUT VOLTAGE	90-264V
INPUT CURRENT	8-4A
INPUT FREQUENCY	47-63Hz
DIMENSIONS (L X W X H)	100 x 125 x 63.5 mm
FAN SIZE	92mm
FAN BEARING	FDB
EFFICIENCY	90% @ Typical Load
80 PLUS RATING	80 PLUS Gold
ERP 2014 LOT 3	Yes
OPERATING TEMPERATURE	0-50C
POWER GOOD SIGNAL	100 - 500 ms
HOLD UP TIME	20ms
MTBF	>100,000 Hours
PROTECTIONS	OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
REGULATORY	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
ATX 24-PIN CONNECTORS	1
EPS 4+4 PIN CONNECTORS	1
EPS 8 PIN CONNECTOR	1
SATA CONNECTORS	8
PERIPHERAL 4-PIN CONNECTORS	4
PCI-E 6+2 PIN CONNECTORS	4
SERIES	V Gold Series, V SFX Gold Series
80 PLUS	Gold
MODULAR	Full Modular
WATTAGE	500 to 750W

No additional files, specification sheets, guides or documentation found for product.

Warranty: 10 years

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
