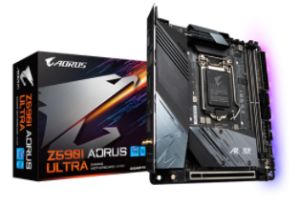

Gigabyte GA-Z590-I-AORUS-ULTRA Motherboard

No Longer Available

Part Number:

494371

(?) Brand:

Gigabyte Web Site

Manuf No:

GA-Z590-I-AORUS-ULTRA
GAZ590IAORUSULTRA

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

GAZ590IAORUSULTRA, GA-Z590-I-AORUS-ULTRA

Intel Z590 Mini-ITX AORUS Motherboard with Direct 10+1 Phases Digital VRM Design, Advanced Thermal Solution, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0

Supports 11th and 10th Gen Intel Core Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Intel Optane Memory Ready

Direct 10+1 Phases Digital VRM Solution with 90A Smart Power Stage

Fins- Array II and Multi-Layered PCH / M.2 Heatsink with Two Heatpipes

Blazing Fast Intel 2.5GbE LAN with cFosSpeed

Intel WiFi 6 802.11ax 2T2R &BT5 with AORUS Antenna

AMP-UP Audio with ALC1220 for Rear 120dB SNR

HDMI 2.0 supports Premium 4K

Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED &RGB LED Strips

Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications
Audio	RealtekÂ® ALC1220-VB codec * The back panel line out jack supports DSD audio. Support for DTS:XÂ® Ultra High Definition Audio 2/4/5.1/7.1-channel
Chipset	IntelÂ® Z590 Express Chipset
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-CÂ® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header
Integrated CPU Graphics	Integrated Graphics Processor-IntelÂ® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 5120x2160@60 Hz Support for DisplayPort 1.4 version and HDCP 2.3. The DisplayPort does not support HDMI connection by adapter.
LAN	IntelÂ® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Memory/Type/Bus/Max.	11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Slots	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
Processor Support	11th Generation IntelÂ® Coreâ„¢ i9 processors / IntelÂ® Coreâ„¢ i7 processors / IntelÂ® Coreâ„¢ i5 processors 10th Generation IntelÂ® Coreâ„¢ i9 processors / IntelÂ® Coreâ„¢ i7 processors / IntelÂ® Coreâ„¢ i5 processors / IntelÂ® Coreâ„¢ i3 processors/ IntelÂ® PentiumÂ® processors / IntelÂ® CeleronÂ® processors* * Limited to processors with 4 MB IntelÂ® Smart Cache, IntelÂ® CeleronÂ® G5xx5 family. L3 cache varies with CPU
Raid	Support for RAID 0, RAID 1, RAID 5, and RAID 10
RAM Type/Bus/Max.	11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Socket	1200
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 IntelÂ® Optaneâ„¢ Memory Ready
Warranty	3 Years
Weight

Specifications

Audio

RealtekÂ® ALC1220-VB codec * The back panel line out jack supports DSD audio. Support for DTS:XÂ® Ultra High Definition Audio 2/4/5.1/7.1-channel

Chipset

IntelÂ® Z590 Express Chipset

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm

I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-CÂ® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header

Integrated CPU Graphics

Integrated Graphics Processor-IntelÂ® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 5120x2160@60 Hz *Support for DisplayPort 1.4 version and HDCP 2.3. *The DisplayPort does not support HDMI connection by adapter.

LAN

IntelÂ® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Memory/Type/Bus/Max.

11th Generation IntelÂ® Coreâ„¢ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation IntelÂ® Coreâ„¢ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation IntelÂ® Coreâ„¢ i5/i3/PentiumÂ®/CeleronÂ® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Slots

1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*

Processor Support

11th Generation IntelÂ® Coreâ„¢ i9 processors / IntelÂ® Coreâ„¢ i7 processors / IntelÂ® Coreâ„¢ i5 processors 10th Generation IntelÂ® Coreâ„¢ i9 processors / IntelÂ® Coreâ„¢ i7 processors / IntelÂ® Coreâ„¢ i5 processors / IntelÂ® Coreâ„¢ i3 processors/ IntelÂ® PentiumÂ® processors / IntelÂ® CeleronÂ® processors* * Limited to processors with 4 MB IntelÂ® Smart Cache, IntelÂ® CeleronÂ® G5xx5 family. L3 cache varies with CPU

Raid

Support for RAID 0, RAID 1, RAID 5, and RAID 10

RAM Type/Bus/Max.

Socket

1200

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 IntelÂ® Optaneâ„¢ Memory Ready

Warranty

3 Years

Weight

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring

Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Operating System

Support for Windows 10 64-bit

Unique Features

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install

USB

Chipset: 1 x USB Type-CÂ® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-CÂ® port with USB 3.2 Gen 1 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back pane 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB header
