Leadtek TERA2140 Quad-DP Zero Client
Overview
Ultra-Secure, Quad-Display and Easy to Manage Clients Optimized for a VMware
or Amazon WorkSpaces Environment
Do it all with total security. The era of complex, non-secure PC solutions is
almost over. Leadtek PCoIP-enabled virtual desktop solution, on the other hand,
enables all computing resources and data to be transferred to a centralized
server in a secure data center and lowers support overheads for the enterprise.
This enhances enterprise data management and security while delivering an
immaculate, uncompromised end user experience over standard IP
networks.
PCoIP zero client makes it possible to deliver workstation class performance
for professional applications including 3D CAD/CAM, Digital Content Creation,
video editing and advanced knowledge worker level business software.
Go Green with Ultra-Low Power and Noiseless
Offers industry-leading low power consumption design and engineering
technology. The net result is a small, quiet, low power and reliable device that
requires minimal IT administration and support.
The book-size desktop devices are compatible with VMware Horizon, Teradici
All Access solutions, Amazon WorkSpaces, Azure, Google Cloud Platform,
on-premise data centers, and PCoIP remote workstation cards.
Support up to four USB, a Speaker, a Microphone, a Headphone, an optional
smart card reader, and Ethernet connectors.
Size: 7.21 (height) x 5.22 (length) x 1.76 (thinness) inches without
stand
High Security and Authentication
PCoIP solution allows ALL desktop computing hardware, including existing PCs,
workstations, and servers, to be moved into a secure location. PCoIP transmits
pixels - NOT data - so all data stays secure in your datacenter.
PCoIP zero clients simply receive and decode encrypted image information, do
not store any application data, and are immune to viral attack. It uses high
standard AES 256 and NSA Suite B ciphers encryption. And extensive USB security
and authentication features are provided.
VMware Ready
As a result of collaboration with VMware, VMware Horizon View incorporates
PCoIP technology as the remote desktop protocol for virtual desktops, providing
a significantly better user experience than is provided with other remoting
protocols. Corporations deploying VMware Horizon Views latest versions can
achieve all of the advantages of virtual desktop deployments with all of the
advantages of the PCoIP protocol and with the manageability and performance
advantages of PCoIP zero clients.
Resolution up to 4K UHD
Support up to two DisplayPort displays at 3840x2160, or four 1920x1200
resolution and the highest pixel processing power.
With PCoIP technology, your enterprise applications can be located and
managed in the cloud or in your data center while your users continue to enjoy
premium interactive experience with their desktops and
applications.
Specifications
Model |
TERA2140
Series |
Max
Number of Displays |
4 |
Processor |
TERA2140 |
Imaging
Performance |
50
Mpps (VDI) |
250
Mpps (Workstation)* |
Maximum
Resolution |
Two
3840x2160 (DP model only)*** |
Two
2560x1600 |
Four
1920x1200 |
Memory
Type |
512
MB DDR3 |
Device
Physical Dimensions |
7.21
(height) x 5.22 (length) x 1.76 (thinness) inches without
stand |
Power
Management |
Full
Wake-on-LAN and Wake-on-USB |
Typical
Device Power |
12W |
Encryption |
AES-128/AES-256 |
Suite
B Ciphers (Workstation) |

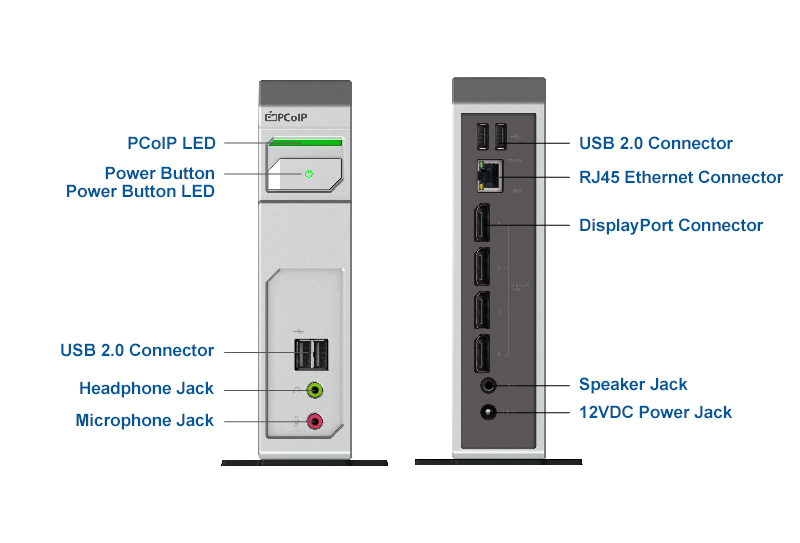

Connectors |
Single-link
DVI-D or DisplayPort connector |
Second
Single-link DVI-D or DisplayPort connector |
Third
Single-link DVI-D or DisplayPort connector |
Forth
Single-link DVI-D or DisplayPort connector |
(or
Two Dual-link DVI-D with adapters) |
Two
front USB 2.0 connectors** |
(Smart
card reader zero clients have one front USB
connector) |
Two
rear USB 2.0 connectors |
Smart
Card Reader port (Optional) |
Headphone
jack |
Microphone
jack |
Speaker
jack |
RJ45
or Fiber Ethernet connector |
12VDC
Power jack |
LED |
PCoIP
LED |
Zero
Client Power Button LED |
Button |
Zero
Client Power Button |
Thermal
Cooling Solution |
Passive
heat sink |
Operating
System Support |
Completely
operating system independent |
Package
Content |
PCoIP
Zero Client |
Power
adaptor and power cord |
Ethernet
cable (Optional) |
Dual-link
DVI adapter cables (Optional for TERA2140 Quad-DVI and TERA2321 Dual-DVI
zero clients)*** |
Quick
installation guide |
VESA
mount package
(Optional) |
