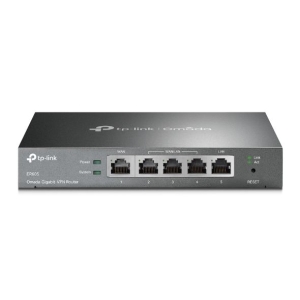

TP-Link TL-ER605 Omada Gigabit VPN Router - GbE(2), WAN, GbE/WAN(2)

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

1 Fixed Gigabit WAN Port

1 Fixed Gigabit LAN Port

3 Changeable Gigabit WAN/LAN Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100 STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100 STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

External 9V/0.9A DC Adapter

Flash

SPI 16MB

DRAM

128 MB

LED

PWR, SYS, WAN, LAN

Dimensions ( W x D x H )

6.2 4.0 1.0 in.

(158 101 25mm)

PERFORMANCE

Concurrent Session

25,000

IPsec VPN Throughput

41.5 Mbps

BASIC FUNCTIONS

WAN Connection Type

Static/Dynamic IP

PPPoE

PPTP

L2TP

MAC Clone

Modify WAN/LAN MAC Address

DHCP

DHCP Server/Client

DHCP Address Reservation

Multi-net DHCP*

Multi-IP Interfaces*

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

Static Routing

Policy Routing

Bandwidth Control

IP/Port-based Bandwidth Control

Guarantee &Limited Bandwidth

Load Balance

Intelligent Load Balance

Application Optimized Routing

Link Backup (Timing, Failover)

Online Detection

NAT

One-to-One NAT

Multi-Net NAT

Virtual Server

Port Triggering

NAT-DMZ

FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security

SPI Firewall

VPN Passthrough

FTP/H.323/PPTP/SIP/IPsec ALG

DoS Defence, Ping of Death

Local Management

Session Limit

IP-based Session Limit

VPN

IPsec VPN

20 IPsec VPN Tunnels

LAN-to-LAN, Client-to-LAN

Main, Aggressive Negotiation Mode

DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

IKEv1/v2*

MD5, SHA1 Authentication Algorithm

NAT Traversal (NAT-T)

Dead Peer Detection (DPD)

Perfect Forward Secrecy (PFS)

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

PPTP VPN

PPTP VPN Server

10 PPTP VPN Clients

16 Tunnels

PPTP with MPPE Encryption

L2TP VPN

L2TP VPN Server

10 L2TP VPN Clients

16 Tunnels

L2TP over IPSec

OpenVPN

OpenVPN Server*

10 OpenVPN Clients*

16 OpenVPN Tunnels*

SECURITY

Filtering

WEB Group Filtering

URL Filtering

Web Security

ARP Inspection

Sending GARP Packets

ARP Scanning

IP-MAC Binding

Attack Defense

TCP/UDP/ICMP Flood Defense

Block TCP Scan (Stealth FIN/Xmas/Null)

Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication

No Authentication

Simple Password*

HotspotLocal User / Voucher* / SMS* / Radius*

External Radius Sever

External Portal Sever*

Facebook*

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Time Setting

Diagnostic

Firmware Upgrade

Factory Defaults/Reboot

Backup&estore

System Log

Remote Management

Statistics

Controller Settings

SNMP

Management Features

Automatic Device Discovery

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

Captive Portal Configuration

ZTP (Zero-Touch Provisioning)**

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Gigabti VPN Router ER605

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 040 (32104 );

Storage Temperature: -4070 (-40158 )

Operating Humidity: 1090% RH non-condensing

Storage Humidity: 590% RH non-condensing
