Technical
Specifications |
Interface:USB
2.0 (USB Micro) |
|
Video
Input:HDMI 2.0 |
|
Video
Output (Pass-Through):HDMI 2.0 |
|
Audio

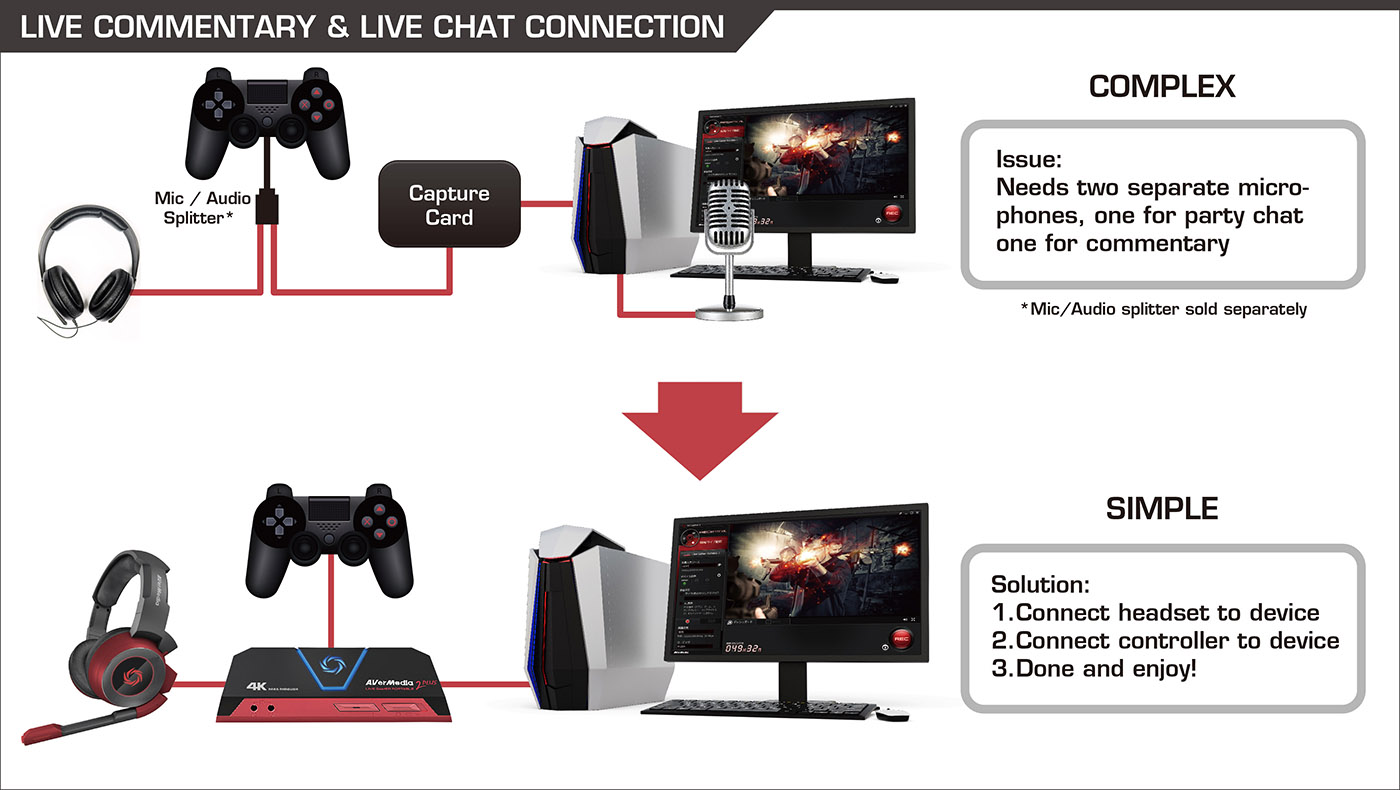

Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic
pass-through)*1 |
|
Audio
Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through
from controller, Mic input)*1 |
|
Max
Pass-Through Resolutions:4Kp60 / 1080p60 |
|
Max
Record Resolutions:1080p60 |
|
Supported
Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p,
480i |
|
Operation

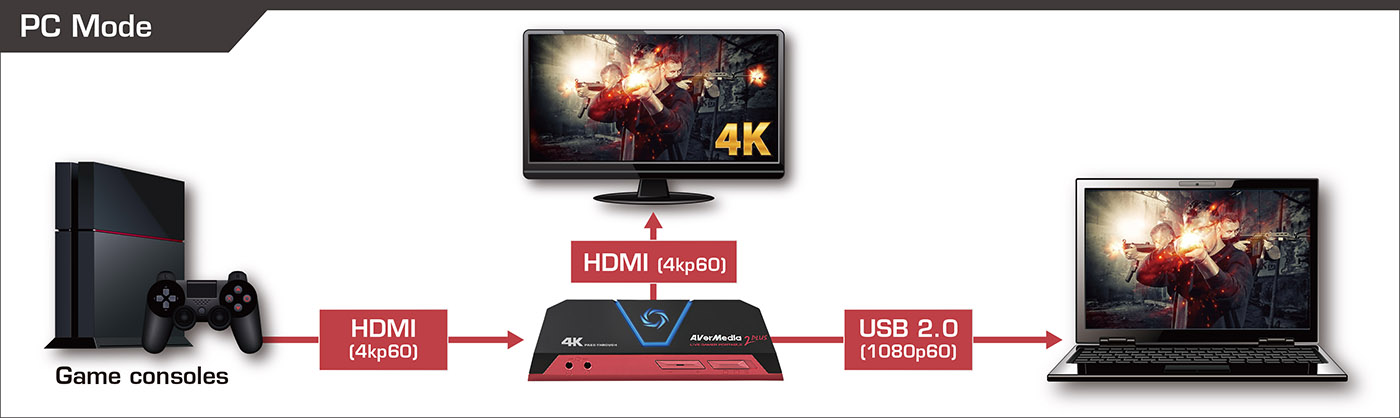

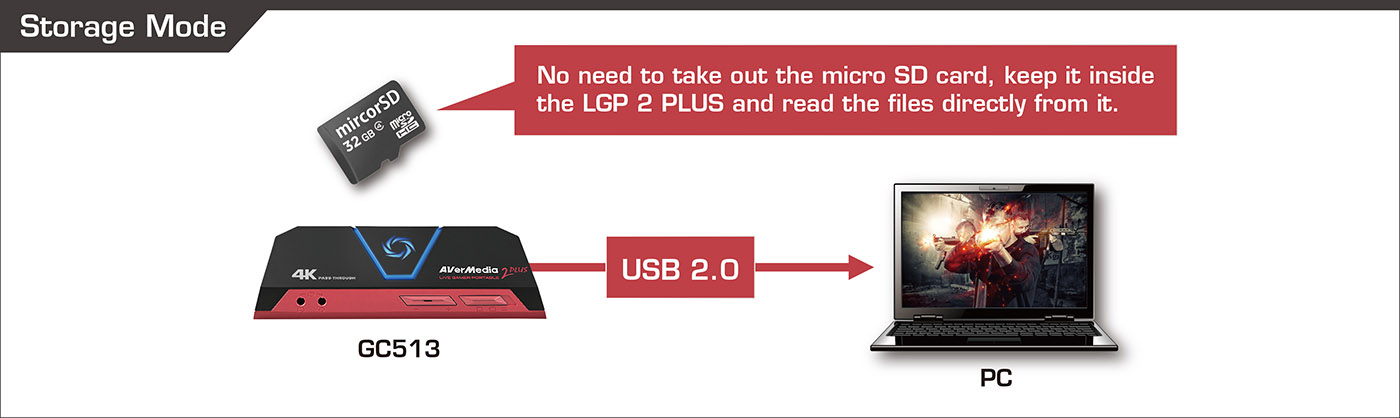

Modes:PC mode, PC-free mode, Card reader mode |
|
Record
Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware
encoding |
|
Dimension
(W x D x H):147 x 57 x 47 mm (5.8 x 2.2 x
1.8in) |
|
Weight:185.5g
(6.54 oz) |
|
Notes: |
|
1.
LGP2 PLUS does not support viewing/recording/streaming of HDCP protected
signals |
|
2.
Micro SD Class 10 card is required for PC-Free recording, Micro SD card is
not included. |
|
3.
Micro SD maximum capacity support: 128GB |
|
4.
Micro SD Supported formats: FAT32 format / exFAT
format |
|
-
When using the "FAT32 format" microSD card, |
|
Due
to the specification of FAT32, movies are divided and saved every 4 GB
(about 25 minutes). |
|
-
Continuous recording is possible when using "exFAT format" microSD
card |
System
Requirements |
Operating
sytem: Windows 10 / 8.1 / 7 / Mac OS X (Support UVC
Protocol) |
(For
dedicated streaming PC) |
For
1080p60 |
|
Desktop: |
|
- Intel
Core i5 CPU i5-3330 or comparable (i7
recommended) |
|
- NVIDIA
GTX 650 / AMD Radeon R7 250X or above are
recommended |
|
- 4GB
RAM |
|
Laptop: |
|
- Intel
Core i7-4810MQ |
|
- NVIDIA
GeForce GTX 870M |
|
- 4
GB RAM (8 GB recommended) |
|
Operating
System: macOS X 10.13 or later (Support UVC
Protocol) |
|
For
1080p60 |
|
iMac
2013: |
|
- 2.9GHz
quad-core Intel Core i5 processor |
|
- NVIDIA
GeForce GT 750M graphics processor with 1GB of GDDR5
memory |
|
- 16GB
of 1600MHz DDR3L onboard memory |
|
MacBook
Pro 2013: |
|
- 2.5GHz
quad-core Intel Core i7 processor |
|
- NVIDIA
GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics
switching |
|
- 16GB
of 1600MHz DDR3L onboard memory |
|
MacBook
Pro 2017: |
|
-
2.8GHz quad-core Intel Core i7 processor |
|
-
AMD Radeon Pro 555(2GB GDDR5) at least |
|
-
16GB of 2133MHz LPDDR3 at least |
What's
in the box |
Live
Gamer Portable 2 PLUS (GC513) |
|
HDMI
cable |
|
USB
Micro to Type-A cable |
|
4-Pole
3.5mm audio cable |
|
Quick
guide |
