All stock codes associated to this product
GC570, 25AGC570, 25A-GC570, 4710710678135

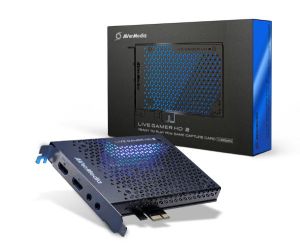

Avermedia GC570 Live Gamer HD 2 Internal Capture Card
Overview
The second installment of Live Gamer HD has arrived! Packed with more power
and style, Live Gamer HD 2 (LGHD2) is a plug-and-play PCIe-capturing beast that
records and streams smooth, uncompressed, zero-lag gameplay in 1080p 60 fps.
1080p60 Uncompressed Video
LGHD2 is built for speed and quality. By capturing uncompressed videos, LGHD2
simplifies your PC operations and delivers smoother and sharper 1080p60
streaming.
Ready to Play: No Driver Needed
Tired of installing drivers? Dont you worry. LGHD2 doesnt require driver
installation. Insert it into a PCIe slot and its ready to roll.
Flexible Audio Connection
Having more audio options is always a plus when it comes to capturing.
Connect digitally via HDMI or analog via 3.5 mm ports, you can record audio from
consoles, PCs, or even output to mixers for audio mixingthe flexibility is
yours.
Compressed Video Output
Besides uncompressed videos, LGHD2 also delivers compressed videos that
require less transmission bandwidth, so you can use multiple LGHD2s* to capture
different sources at the same time.
Get to Know the Design
If theres a geometric shape that can represent gamers, it would be a
trianglea combination of vitality (a circle) and stability (a square) which
outlines gamers charactistics. And based on this key element, we created a
triangle metal mesh. Aside from its premium built quality and stylish design, it
also provides excellent protection, ventilation, and allows the LED lighting to
shine through.
Packaging
The same design is beautifully presented on LGHD2s packaging. Engraved and
cut by high precision laser, the triangle mesh looks just as astonishing on
paper sleeve as on metal sheet. The design of the inner box is also carefully
thought through. Its pattern and silvery blue finishing mimics the LED lighting
as you slowly pull it out of the sleeve. It's a one-of-a-kind unboxing
experience.
RECentral 3Stream in Perfection
The powerful and stylish RECentral has been further enhanced with multiple
Pro features. Your stream will never look the same again.
Picture-in-Picture
Customize the look of your channel, now with even more contents! Overlay
webcam, videos, announcements and more! Keep your fans
entertained.
Live Editing
No need to go through hours of recordings to find those highlights. Cut,
trim, and merge your video while its being recorded.
Embedded Sharing
Share your channel to social media with one simple click, right within
RECentral!
|
Technical
Specifications |
Interface:PCI-Express
Gen 2 x1 |
|
Video
Input:HDMI |
|
Video
Output (Pass-Through):HDMI |
|
Audio
Input:HDMI / 3-Pole 3.5 mm Jack |
|
Audio
Output (Pass-Through):HDMI / 3-Pole 3.5 mm
Jack |
|
Max
Pass-Through Resolutions:1080p60 |
|
Max
Record Resolutions:1080p60 |
|
Supported
Resolutions (Video input):1080p, 1080i, 720p, 576p, 480p,
480i |
|
Record
Format:MPEG 4 (H.264+AAC) / MJPEG |
|
Dimension
(W x D x H):125 x 151 x 21.5 mm (4.92 x 5.94 x 0.84
in) |
|
Weight:145
g (5.11 oz) |
|
Notes: |
|
1.
LGHD2 does not support viewing/recording/streaming of HDCP protected
signals |
|
System
Requirements(For dedicated streaming
PC) |
|
Operating
sytem: Windows 10 / 8.1 / 7 * |
|
For
1080p60 Desktop: |
|
- Intel
Core i5-3330 or above (i7-3770 recommended) |
|
- NVIDIA
GeForce GTX 650 / AMD Radeon R7 250X or above are
recommended |
|
- 4
GB RAM |
|
Notes: |
|
*
Windows 10 / 8.1 (Support UVC Protocol) Windows 7 Requires driver
installation |
|
1.
Warning: Live Gamer HD2 is not compatible with X99 (ASUS, MSI, ASROCK)
motherboards |
|
What's
in the box |
Live
Gamer HD 2 (GC570) |
|
HDMI
cable |
|
3-Pole
3.5mm audio cable |
|
Quick
guide |
