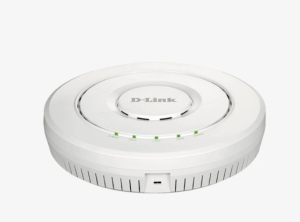

D-Link Unified AX3600 Dual Band PoE Access Point
Overview
- Dual-band wireless speeds offer an unparalleled 3600 Mbps
throughput
- Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with
nearly four times the capacity of previous Wi-Fi standards
- 4 x 4 MU-MIMO slices through congestion, reducing wait time for all
users
- Support for Power of Ethernet 802.3at means less wires, for cleaner and
easier deployment
- Coverage is shared more efficiently over more users with Airtime
Fairness
- Band Steering intelligently manages users, pushing them onto the higher
radio frequency when possible
- With 802.11k support, devices pre-detect neighboring APs, switching
seamlessly when roaming
- Quality of Service prioritizes time-sensitive data such as video calls or
streaming, for less interruptions
- Stay secure with the latest 128-bit Personal or 192-bit Enterprise
wireless encryption
- Zero-Wait DFS preemptively seeks quieter frequency channels, reducing
external interference
Specifications
|
Data
Transfer Rate |
2.4
GHz - Up to 1147 Mbps, 5 GHz - Up to 2402 Mbps |
|
System
Management |
Web-based
User Interface (Web UI) Telnet/SSH Command Line Interface (CLI) SNMP
v1/v2c/v3 |
|
Product
Description |
Unified
AX Wave 2 Wireless Access Points |
|
Wi-Fi
Interface |
IEEE
802.11/a/b/g/n/ac/ax (Wi-Fi 6) |
|
LAN
Interface |
1
x 10/100/1000 BASE-T LAN port 1 x 10/100/1000/2500 BASE-T LAN
port |
|
Antenna |
Internal
omnidirectional antennas 2.4 GHz: 3 dBi 5 GHz: 4
dBi |
|
Power
Method |
802.3af
PoE PD on LAN Port |
|
Wireless
Frequency |
2400
to 2483.5 MHz 5150 to 5850 MHz |
|
Dimensions |
460
x 160 x 79.5 mm |
|
Weight |
1.38
kg |
|
SSID
Security |
Up
to 32 SSIDs, 16 per radio, 802.1Q VLAN, Station
Isolation |
Networking
