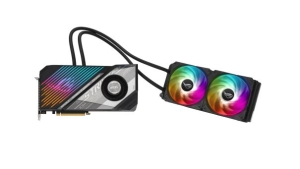

Asus ROG-STRIX-LC-RX6900XT-T16G-GAMING Video Card
Overview
- ROG Strix LC Radeon RX 6900 XT is a liquid-cooled leviathan.
- Full-coverage cold plate brings liquid cooling to GPU die and
memory
- On-board cooling for power-delivery is handled by a blower-style fan and
low-profile heatsink.
- 240mm radiator balances compatibility and performance.
- 600mm tubing for compatibility with EATX chassis and alternative
mounts
- Super Alloy Power II includes premium alloy chokes, solid polymer
capacitors, and an array of high-current power stages.
- ASUS FanConnect II equips a hybrid-controlled fan header for optimal
system cooling.
- GPU Tweak II provides intuitive performance tweaking, thermal controls,
and system monitoring.
Specifications
|
Graphic
Engine |
AMD
Radeon RX 6900 XT |
|
Bus
Standard |
PCI
Express 4.0 |
|
OpenGL |
OpenGL4.6 |
|
Video
Memory |
16GB
GDDR6 |
|
Engine
Clock |
Gaming
mode : Up to 2525 MHz (Boost Clock)/ Up to 2375 MHz (Game
Clock) |
|
Stream
Processors |
5120 |
|
Memory
Speed |
16
Gbps |
|
Memory
Interface |
256-bit |
|
Resolution |
Digital
Max Resolution 7680 x 4320 |
|
Interface |
Yes x 1 (Native HDMI
2.1) |
|
Yes x 2 (Native DisplayPort 1.4a) |
|
Yes
x 1 (USB Type-C) |
|
HDCP
Support Yes (2.3) |
|
Maximum
Display Support |
4 |
|
NVlink/
Crossfire Support |
Yes |
|
Accessories |
1
x ROG Velcro Hook & Loop |
|
1
x ASUS ruler |
|
1
x Collection card |
|
1
x Speedsetup manual |
|
1
x Cable ties pack(s) |
|
Software |
ASUS
GPU Tweak II & Drivers: please download all software from the support
site. |
|
Dimensions |
Card
: 27.7 x 13.1 x 4.36 Centimeter |
|
Radiator
27.6 x 12 x 5.17 Centimeter (including fan) |
|
Recommended
PSU |
850W |
|
Power
Connectors |
3
x 8-pin |
|
Slot |
2.2
Slot |
|
Note |
*
Crossfire Support for DirecX 12 and Vulkan |
|
*
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP (Total Graphics Power). Actual individual
game clock results may vary. |
|
*
Boost Clock is the maximum frequency achievable on the GPU running a
bursty workload. Boost clock achievability, frequency, and sustainability
will vary based on several factors, including but not limited to: thermal
conditions and variation in applications and
workloads. |
