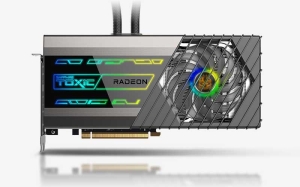

Sapphire TOXIC AMD Radeon RX 6900 XT Limited Edition Gaming Graphics Card with 16GB GDDR6, AMD RDNA 2



Overview

  • GPU: One Click TOXIC Boost Beyond 2365MHz
  • GPU: Boost Clock: Up to 2365 MHz
  • GPU: Game Clock: Up to 2135 MHz
  • Memory: 16GB/256 bit DDR6. 16 Gbps Effective
  • Stream Processors:5120
  • RDNA 2 Architecture
  • Ray Accelerator: 80

Specifications

GPU

AMD Radeon RX 6900 XT Graphics Card

7nm GPU

AMD RDNA 2 Architecture

Engine Clock

Boost Clock: Up to 2365 MHz

Game Clock: Up to 2135 MHz

One Click TOXIC BOOST to go beyond 2365 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

5120

Infinity Cache

128MB

Ray Accelerators

80

Memory Size/Bus

16GB GDDR6

Memory Clock

BIOS Default: 16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI: 76804320

DisplayPort1.4: 76804320

Interface

PCI-Express 4.0

Output

1x HDMI

3x DisplayPort

BIOS Support

Dual UEFI

Game Index

4K

Sapphire Features

All-In-One Liquid Cooler with 360mm Radiator

Dual BIOS

Max Boost

TriXX Software Switch

Premium Digital Power Design

Fuse Protection

Intelligent Fan Control

Precision Fan Control

Backplate with ARGB

ARGB Fans

ARGB AIO Cooler Fans

Dual Ball Bearing Fans

Hybrid Fan Blade on VRM/Memory Cooling

Integrated VRM/Memory Cooling Module

TriXX Supported

Fan Check

TriXX Boost

NITRO Glow

External RGB LED MB Synchronization

AMD Features

AMD RDNA 2 Gaming Architecture

DirectX 12 Ultimate

Hardware Raytracing

7nm GPU

GDDR6 Memory

PCI Express 4.0 Support

AMD FreeSync Technology

DisplayPort 1.4 with DSC

HDMI 2.1 VRR

Video Streaming up to 8K

Radeon VR Ready Premium

AMD FidelityFX

Radeon Image Sharpening

Radeon Anti-Lag

Radeon Software

Game Driver Optimizations

High Performance 4K Gaming

Cooling

AIO Liquid Cooling with 360 mm radiator

Two-Ball Bearing Fans

Form Factor

2.5 slot, ATX + 360mm Radiator

Board 270(L)x 130(W)x 45 (H)mm

Hex / Radiator 394(L) x 120(W) x 52.5 (H)mm

Standard Rubber Tubing, 470(L)mm

Power Consumption

<400W

OS

Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 850 Watt Power Supply

2 x 8-pin + 1 x 6-pin Power Connector.

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
