All stock codes associated to this product
GLCSXMMRGDST, 3578234
Cisco GLC-SX-MM-RGD Compatible SFP Module - 1000BASE-SX - 1GbE
Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m -
850nm - DDM Cisco ASR920, IE2000, IE4000
Overview

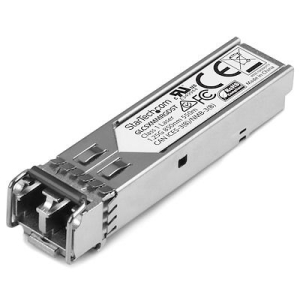

The GLCSXMMRGDST is a Cisco GLC-SX-MM-RGD compatible fiber transceiver module
that has been designed, programmed and tested to work with Cisco brand switches
and routers. It delivers dependable 1 GbE connectivity over fiber cable, for
1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804
ft).
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
|
|
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or Cisco compliant SFP port |
|
Connector(s) |
|
|
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
|
|
Operating
Temperature |
-40C
to 85C (-40F to 185F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
|
|
Compatible
Brand |
Cisco |
|
Industry
Standards |
IEEE
802.3z 1000BASE-SX |
|
Packaging
Information |
|
|
Package
Height |
1.3
in [33.0 mm] |
|
Package
Length |
3.7
in [93.0 mm] |
|
Shipping
(Package) Weight |
1.5
oz [43.0 g] |
|
Package
Width |
4.6
in [11.8 cm] |
|
Performance |
|
|
Maximum
Data Transfer Rate |
1.25
Gbps |
|
Max
Transfer Distance |
550
m (1804 ft) |
|
Type |
Multi
Mode |
|
Wavelength |
850nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
1000
Mbps (1 Gbps) |
|
MTBF |
3,381,761
hours |
|
Power
Consumption (In Watts) |
<
1 W |
|
Physical
Characteristics |
|
|
Weight
of Product |
0.5
oz [15.0 g] |
|
Product
Length |
2.2
in [56.6 mm] |
|
Product
Width |
0.5
in [13.7 mm] |
|
Product
Height |
0.5
in [12.5 mm] |
|
Special
Notes / Requirements |
|
|
Note |
For
use in Gigabit fiber networking equipment and media
converters |
|
What's
in the Box |
|
|
1
- Included in Package |
SFP
transceiver |
