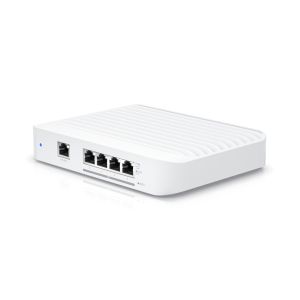

Ubiquiti Switch Flex XG
Overview
Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+
RJ45 input.
The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2
switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports
slim, compact housing and can be mounted on a desktop*. This switch can also be
monitored or configured from anywhere with the powerful, intuitive UniFi Network
web application and mobile app.
Features
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 5A USB-C adapter**
*Do not stack other hardware on the USW Flex XG.
**Only single-unit packages include the 5V, 5A USB-C power
adapter.
Managed with the UniFi Network application: Version 6.1.67 and later
Specifications
|
Mechanical |
|
|
Dimensions |
135
x 185 x 32 mm (5.31 x 7.28 x 1.27") |
|
Weight |
1.2
kg (2.65 lb) |
|
Enclosure
Material |
Polycarbonate |
|
Hardware |
|
|
Total
Non-Blocking Throughput |
41
Gbps |
|
Switching
Capacity |
82
Gbps |
|
Forwarding
Rate |
61.012
Mpps |
|
Max
Power Consumption |
25W |
|
Power
Method |
(1)
802.3at PoE, 50-57VDC, 25W |
|
(1)
USB Type-C, 5VDC, 5A |
|
Power
Supply |
802.3at
PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) |
|
AC/DC
Power Adapter, 5VDC, 5A, 1.5 m Cord (Included) |
|
Supported
Voltage Range |
90
to 264VAC (Adapter) |
|
Management
Interface |
Ethernet
In-Band |
|
Networking
Interfaces |
(1)
10/100/1000 Mbps RJ45 Ethernet |
|
(4)
100/1,000/2,500/5,000/10,000 Mbps RJ45
Ethernet |
|
Services |
SMB
Layer 2 Gigabit Ethernet Switch |
|
ESD/EMP
Protection |
Air:
16 kV, Contact: 12 kV |
|
Button |
Factory
Reset |
|
Operating
Temperature |
-5
to 45 C (23 to 113 F) |
|
Operating
Humidity |
10
- 90% Noncondensing |
|
Certifications |
CE,
FCC, IC |
|
LEDs |
|
|
System |
(1)
Power, Blue/White |
|
Flashing
White: Bootup in Progress |
|
Flashing
Blue: Firmware Upgrading |
|
Steady
White: Factory Defaults, Awaiting Adoption |
|
Steady
Blue: Device is Adopted |
|
Ethernet |
White:
Link or Activity |
