GPU |
AMD

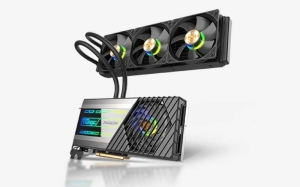

Radeon RX 6900 XT Graphics Card |
|
7nm
GPU |
|
AMD
RDNA 2 Architecture |
|
Engine
Clock |
Boost
Clock: Up to 2525 MHz |
|
Game
Clock: Up to 2375 MHz |
|
One
Click TOXIC BOOST Up to 2730 MHz |
|
Boost
Clock is the maximum frequency achievable on the GPU running bursty
workload. Boost clock achievability, frequency, and sustainability will
vary based on several factors, including but not limited to: thermal
conditions and variation in application and
workloads. |
|
Game
Clock is the expected GPU clock when running typical gaming applications,
set to typical TGP(Total Graphics Power). Actual individual game clock
results may vary. |
|
Stream
Processors |
5120 |
|
Infinity
Cache |
128MB |
|
Ray
Accelerators |
80 |
|
Memory
Size/Bus |
16GB
GDDR6 |
|
Memory
Clock |
BIOS
Default: 16 Gbps Effective |
|
Displays |
Maximum
4 Displays |
|
Resolution |
HDMI:
76804320 |
|
DisplayPort1.4:
76804320 |
|
Interface |
PCI-Express
4.0 |
|
Output |
1x
HDMI |
|
3x
DisplayPort |
|
BIOS
Support |
Dual
UEFI |
|
Game
Index |
4K |
|
Sapphire
Features |
All-In-One
Liquid Cooler with 360mm Radiator |
|
Dual
BIOS |
|
Max
Boost |
|
TriXX
Software Switch |
|
Premium
Digital Power Design |
|
Fuse
Protection |
|
Intelligent
Fan Control |
|
Precision
Fan Control |
|
Backplate
with ARGB |
|
ARGB
Fans |
|
ARGB
AIO Cooler Fans |
|
Dual
Ball Bearing Fans |
|
Hybrid
Fan Blade on VRM/Memory Cooling |
|
Integrated
VRM/Memory Cooling Module |
|
TriXX
Supported |
|
Fan
Check |
|
TriXX
Boost |
|
NITRO
Glow |
|
External
RGB LED MB Synchronization |
|
AMD
Features |
AMD
RDNA 2 Gaming Architecture |
|
DirectX
12 Ultimate |
|
Hardware
Raytracing |
|
7nm
GPU |
|
GDDR6
Memory |
|
PCI
Express 4.0 Support |
|
AMD
FreeSync Technology |
|
DisplayPort
1.4 with DSC |
|
HDMI |
|
Video
Streaming up to 8K |
|
Radeon
VR Ready Premium |
|
AMD
FidelityFX |
|
Radeon
Image Sharpening |
|
Radeon
Anti-Lag |
|
Radeon
Software |
|
Game
Driver Optimizations |
|
High
Performance 4K Gaming |
|
Cooling |
AIO
Liquid Cooling with 360 mm radiator |
|
Two-Ball
Bearing Fans |
|
Form
Factor |
2.5
slot, ATX + 360mm Radiator |
|
Board
270(L)x 130(W)x 45 (H)mm |
|
Hex
/ Radiator 394(L) x 120(W) x 52.5 (H)mm |
|
Standard
Rubber Tubing, 470(L)mm |
|
Power
Consumption |
<430W |
|
OS |
Linux,
Windows 7*, Windows 10, and Windows 8.1. 64-bit operating
system required |
|
*Does
not support all features including but not limited to Hardware
Raytracing |
|
System
Requirement |
Minimum
850 Watt Power Supply |
|
2
x 8-pin + 1 x 6-pin Power Connector. |
|
PCI
Express based PC is required with one X16 lane graphics slot available on
the motherboard. |
|
Minimum
8GB of system memory. 16GB
recommended. |
