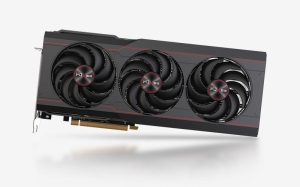

Sapphire 11304-03-20G SAPPHIRE PULSE AMD Radeon RX 6800 XT Gaming Graphics Card with 16GB GDDR6, AMD RDNA 2



Overview

  • GPU: Boost Clock: Up to 2310MHz
  • Memory: 16GB/256 bit DDR6. 16 Gbps Effective
  • Stream Processors: 4608
  • RDNA 2 Architecture
  • Ray Accelerator: 72

Specifications

GPU

AMD Radeon RX 6800 XT Graphics Card

7nm GPU

AMD RDNA 2 Architecture

Engine Clock

Boost Clock: Up to 2310 MHz

Game Clock: Up to 2065 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4608

Infinity Cache

128MB

Ray Accelerators

72

Memory Size/Bus

16GB GDDR6

Memory Clock

16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI: 76804320

DisplayPort1.4: 76804320

Interface

PCI-Express 4.0

Output

1x HDMI

3x DisplayPort

BIOS Support

Dual UEFI

Game Index

4K

Sapphire Features

Dual BIOS

Digital Power Design

Fuse Protection

Tri-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

Backplate

Two-Ball Bearing Fans

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA 2 Gaming Architecture

DirectX 12 Ultimate

Hardware Raytracing

7nm GPU

GDDR6 Memory

PCI Express 4.0 Support

AMD FreeSync Technology

DisplayPort 1.4 with DSC

HDMI 2.1 VRR

Video Streaming up to 8K

Radeon VR Ready Premium

AMD FidelityFX

Radeon Image Sharpening

Radeon Anti-Lag

Radeon Software

Game Driver Optimizations

High Performance 4K Gaming

Cooling

3 Fans

Form Factor

2.7 slot, ATX

Dimension: 313(L)X 134.8(W)X 53.4 (H)mm

Power Consumption

350W

OS

Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 750 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
