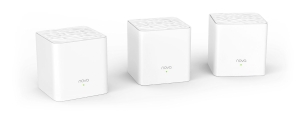

Tenda Nova MW3 AC1200 Dual-Band Router for Whole Home WiFi Coverage -
3-Pack
Overview
Blanket your three-storey house in reliable
WiFi
Still frustrated with buffering, drop-offs at your home where WiFi signal is
weak or cannot reach? With the mesh technology, MW3 creates a distributed WiFi
network that covers up to 300, eliminating WiFi dead zones at your
home.
Hassle free gaming and streaming experiece
simultaneously
With MU-MIMO technology, MW3 supports more WiFi-enabled devices. And the
smart QoS intelligently allocates bandwidth to ensure smooth streaming, gaming,
downloading and uninterrupted video chat at the same time.
Uninterrupted video chat while moving across your
home
With one single SSID and password, MW3 automatically performs handover
without interrupting services to ensure that the devices are always connected to
the WiFi network with stronger signals.
Gigabit speed for smooth 4K videos
MW3 offers a data rate up to 1200Mbps and prioritizes 5 GHz network access,
allowing you to enjoy lag-free 4K HD videos.
Easy and fast setup with pre-configuration
Pre-paired from factory settings makes setup of MW3 a breeze, letting you go
from burden of cabling connections.
Management with Tenda WiFi App
The easy-to-use Tenda WiFi App allows you to block unauthorized users with a
single tap. It also supports Parental Control to help your kids surf internet
safely, and Guest Network to protect your personal privacy.
Specifications
|
Hardware |
|
|
Standard&Protocol |
IEEE802.11a/b/g/n/ac |
|
IEEE
802.3, IEEE 802.3u, IEEE 802.4ab |
|
Ethernet
Interface |
2
x 10/100Mbps RJ45 ports per node |
|
Antenna |
2
x Internal antenna |
|
Button |
1
x Reset Button |
|
Power |
Input:
100-240V50/60Hz, 0.3A |
|
Output:
9V1A |
|
Dimension |
90
x 90x 90mm (3.54 x 3.54 x 3.54 in.) |
|
LED
Indicator |
1
x Tri-color LED |
|
Indicator(Green,Yellow,Red) |
|
Wireless |
|
|
Wireless
Standard |
IEEE802.11a/b/g/n/ac
(WiFi 5 wave 2) |
|
Wireless
roaming |
Comply
with IEEE802.11k/v/r |
|
Mesh
network Standard |
IEEE802.11s |
|
Rate |
2.4GHz:
300Mbps |
|
5GHz:
867Mbps |
|
Frequency |
2.4~2.4835GHz |
|
5.15~5.25GHz |
|
5.725~5.85GHz |
|
Transmission
Power |
CE: |
|
<20dBm(2.4G) |
|
<23dBm(5G) |
|
Basic
Features |
SSID
Broadcast |
|
Beam
Forming |
|
MU-MIMO |
|
AP
Steering |
|
Band
Steering |
|
Wireless
Security |
WPA-PSK/WPA2-PSK(default) |
|
Software |
|
|
Operating
Mode |
Router
Mode,Bridge Mode |
|
Internet
Connection Type |
PPPoE,
Dynamic IP, Static IP |
|
PPPoE(Russia),
PPTP(Russia), L2TP(Russia) |
|
DHCP
Server |
DHCP
Server, DHCP Client List |
|
Virtual
Server |
Port
Forwarding, UPnP |
|
Parental
Control |
Client
Filter |
|
Firewall |
Forbid
TCP/UDP flood attack |
|
VPN |
PPTP/L2TP/IPsec
pass through |
|
DNS |
Support
manually setting DNS server |
|
Special
Features |
Smart
QoS (Gaming, Video & Audio, Download) |
|
Others |
Auto-sensing
internet connection |
|
Support
App management and Remote management |
|
Guest
Network |
|
Firmware
upgrade online |
|
Others |
|
|
Operation
Temperature |
0
~ 40 |
|
Storage
Temperature |
-40
~ 70 |
|
Operating
Humidity |
10%~90%
RH non-condensing |
|
Storage
Humidity |
5%~90%
RH non-condensing |
|
APP
installation |
Available
in iOS 8.0 or later, Android 4.0 or later |
|
Certification |
CE,
FCC, RoHS,EAC,IC |
|
Package
Contents |
Mesh3f
x 3, Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x
1 |
