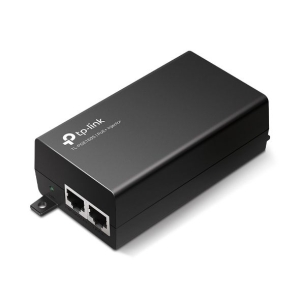

TP-Link TL-POE160S PoE+ Injector



Overview

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply

Specifications

NETWORK

Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL

Certification

FCC, CE, RoHS

Environment

Operating Temperature: 0C to 40C (32F to 104F)

Storage Temperature: -40C to 70C (-40F to 158F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100 STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100 STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports

1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port

1 AC power port

Power Consumption

Input: 100-240 V, 50/60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function

Auto-Sensing Algorithm enables providing power with 802.3af/at PD

Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play

LED Indicator

ON: Supplying power normally

OFF: No power supply

Dimensions ( W x D x H )

4.9 x 2.3 x 1.4 in

(125 x 59 x 37 mm)
