HYPERD/AVIDA12/7HDR | BlackMagic Video Assist 7" 12G HDR

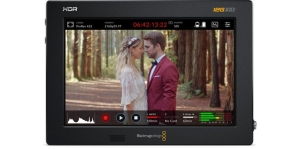

Blackmagic Video Assist 7" 12G HDR

Overview

Blackmagic Video Assist 7 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, UltraHD, 2K and 4K DCI formats! Thesuper bright 2500nit 7inch HDR monitor supports 3DLUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10bit 4:2:2 ProRes or DNx formats. Youalso get two mini XLR connections with 48V ofphantom power and anoise floor of 128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you dont have to convert thefiles!

Connections

SDI Video Inputs

• 1

SDI Video Outputs

• 1

SDI Rates

• 270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0a Video Inputs

• 1

HDMI 2.0a Video Outputs

• 1

Analog Audio Inputs

• 2 x balanced mini XLR with phantom power

Analog Audio Outputs

• 1 x 3.5 mm headphone jack.

Built in Speaker

• Mono

Screen Dimensions

• 7 inch 1920 x 1200.

Screen Brightness

• 2500nits

Screen Color

• P3 wide color gamut

SDI Audio Inputs

• 16 channels embedded via 12G-SDI

SDI Audio Outputs

• 16 channels embedded via 12G-SDI

HDMI Audio Inputs

• 8 channels embedded via HDMI 2.0a

HDMI Audio Outputs

• 8 channels embedded via HDMI 2.0a

Remote Control

• 1 x 2.5mm LANC for Record Start and Stop.

SD Interface

• Dual UHS-II SD slots

Storage Type

• Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
• Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

Computer Interface

• 1 x USB TypeC 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
