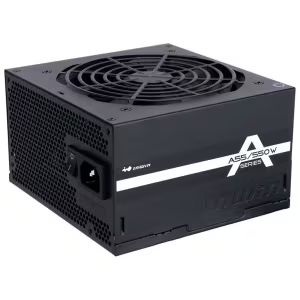

Inwin A55 550W Gaming Power Supply
Overview
Quality Power, Great Performance, Low Noise
The InWin A Series is a power supply with high compatibility and reliability,
it meets the 80 PLUS certification for 230V. Equipped with powerful single +12V
rail design and multi-protection safeguards. The A Series provides great
performance at a good price.
80 PLUS 230V EU Standard Certified
The A Series is an 80 PLUS 230V EU Standard Certified power supply. It
delivers up to 85% efficiency during normal use, generating less heat and
effectively maintain the power supplys stability.
Smart Thermal Control to Balance Cooling and
Noise
The A Series utilizes a smart temperature-controlled 120mm fan. It
automatically detects heat to adjust the fan speed accordingly. It achieves
silent operation and excellent thermal performance.
Single +12V rail design for High-End Systems
Powerful single +12V rail design, perfect for high-end components or
overclocking.
3.3V DC to DC Design
DC to DC converter design provides superior dynamic response and supports a
foundation for greater system stability.
|
Specifications |
|
|
Model |
A55 |
|
Part
Numbers |
IW-A550 |
|
Total
Power |
550W |
|
Material |
SECC |
|
Type |
ATX12V
V2.4 |
|
PFC |
Active
PFC |
|
Efficiency |
80
PLUS230V EU Standard (Up to 85%) |
|
MTBF
(Hours) |
>100,000
hrs. |
|
AC
Input |
200
- 240Vac., 50-60Hz |
|
Fan |
120mm
Silent Fan |
|
Operating
Temperature Range (C) |
0~40
C |
|
Full
Protection |
OVP
/ UVP / SCP / OPP |
|
Safety
Certifications |
TUV
/ CE / RCM |
|
Dimensions
(L x W x H) |
140
x 150 x 86mm |
|
Package
Dimensions(L x W x H) |
240
x 185 x 98mm |
|
Net
Weight |
1.57
kg |
|
Gross
Weight |
1.93
kg |
|
Warranty |
3
Years |
|

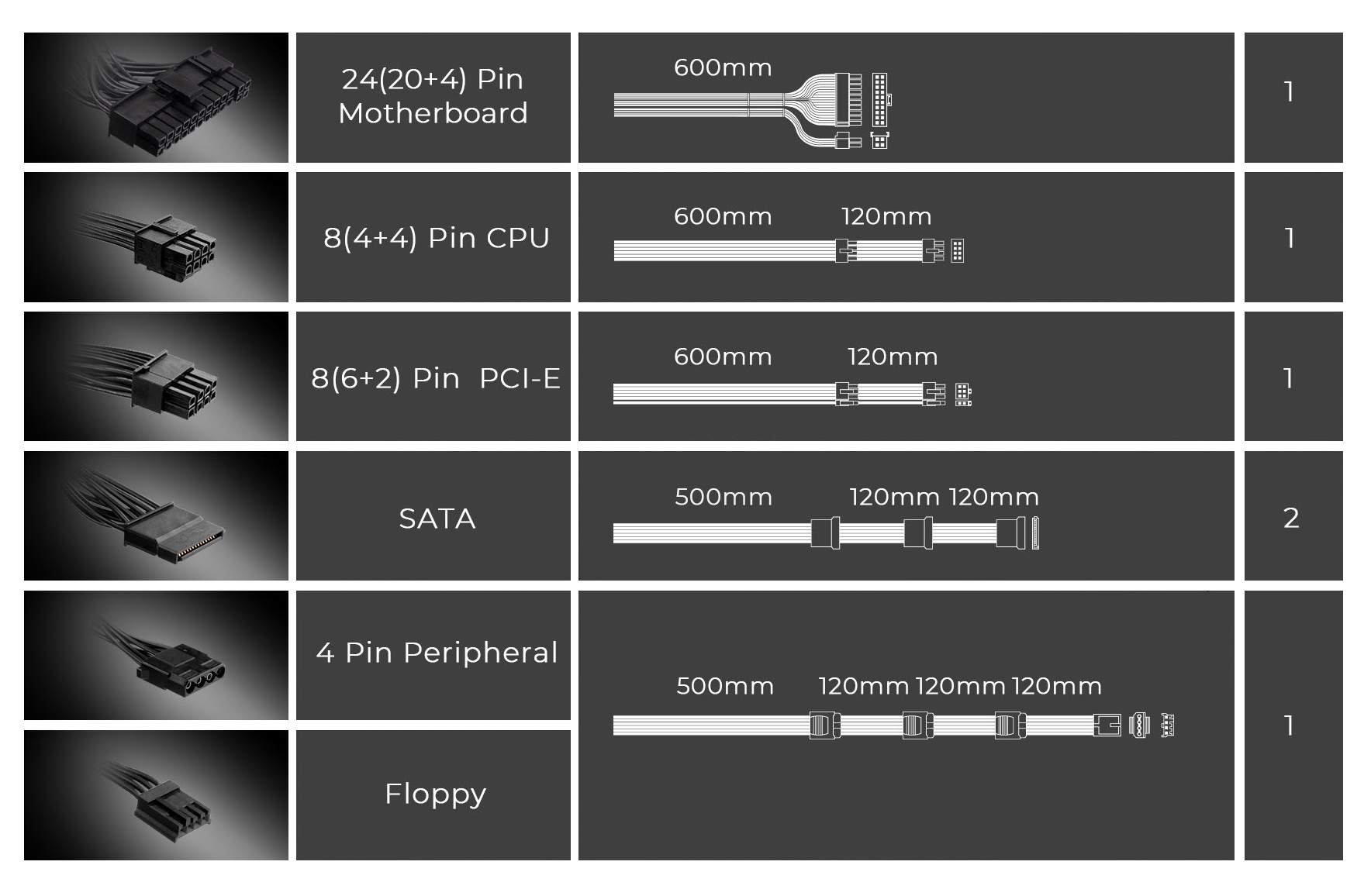

Connectors |
|
|
20+4
Pin Motherboard |
1 |
|
8
(4+4) Pin CPU |
2 |
|
8
(6+2) Pin PCI-E |
2 |
|
4
Pin Peripheral |
3 |
|
SATA |
6 |
|
Floppy |
1 |
