All stock codes associated to this product
MCP2M00A001E30N, MCP2M00-A001E30N, 16N-CABLE-25GBE-BLK-1M, 7290108482829

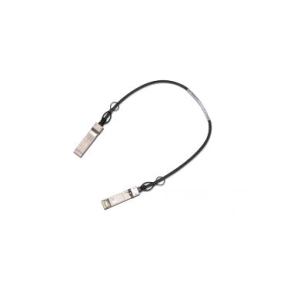

NVIDIA MCP2M00-A001E30N DAC Cable Ethernet 25GbE SFP28
1m
Overview
25GbE SFP28 Direct Attach Copper Cables
NVIDIA Networking direct attach copper cables are high speed, cost-effective
alternatives to fiber optics in 25GbE Ethernet applications.
MCP2M00 passive copper cables contain a single high-speed copper pair,
operating at data rates of up to 25GbE. The cables are compliant SFF-8402 SFP28
standard. Each SFP28 port comprises an EEPROM providing product information,
which can be read by the host system.
MCP2M00 cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC)
with low latency. Cables from 4m to 5m support IEEE 802.3by CA-25G-L (Cable
Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For
2.5m and 3m cables there are two versions supporting either CA-25G-N or
CA-25G-L.
NVIDIA's unique quality passive copper cable solutions provide
power-efficient connectivity for short distance interconnects. They enable
higher port bandwidth, density and configurability at a low cost and reduced
power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation
experience, performance and durability.
Highlights
- Up to 25GbE data rate
- SFF-8402 compliant SFP28
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15
- Hot pluggable
- RoHS6 compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
