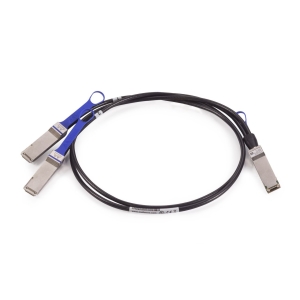

NVIDIA MCP7H00-G003R30L DAC Splitter Cable Ethernet 100GbE to 2x50GbE
3m
Overview
100GbE to 2x50GbE QSFP28 to 2xQSFP28 Direct Attach Copper Splitter
Cable
NVIDIA Networking passive splitter breakout cable is a high speed,
cost-effective, 100GbE to 2x50GbE, Ethernet connectivity solution designed to
meet the growing needs for higher bandwidth in data centers.
MCP7H00 cables are compliant with SFF-8665 QSFP28 specifications and provide
connectivity between systems using a QSFP28 port one side and two QSFP28 ports
on the other. MCP7H00 connects the data signals from each of the 2 dual copper
pairs on the single QSFP28 (pairs 1&2, 3&4) end to the dual copper pair
of each of the QSFP28 (pair 1&2) ends on the multiport side. Each QSFP28
cage comprises an EEPROM providing product information, which can be read by the
host system.
NVIDIA's unique, quality, passive copper cable solutions provide
power-efficient connectivity for short distance interconnects. They enable
higher port bandwidth, density and configurability at a low cost and reduced
power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation
experience, performance and durability.
Highlights
- 100GbE to 2x50GbE data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
