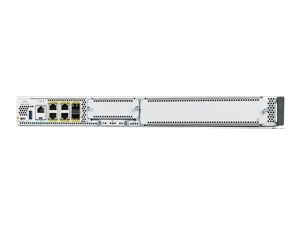

| Product Description | Cisco Catalyst 8300-1N1S-6T - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet |
| Performance | VPN throughput (IMIX IPSec): 5 Gbps ? VPN throughput (1400 B IPSec): 1.9 Gbps ? IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps |
| Capacity | Maximum overlay tunnels: 6000 ? ACL: 4000 ? Access Control Entries (ACEs) per system (IPv4): 72000 ? IPv4 routes: 1600000 ? IPv6 routes: 1500000 ? Queues: 16000 ? NAT sessions: 1200000 ? Firewall sessions: 512000 ? Virtual Routing and Forwarding (VRF) entries: 4000 |
| Network / Transport Protocol | RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP, SCP, OMP |
| VoIP Protocols | SRTP |
| Features | NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Bidirectional Forwarding Detection (BFD), DHCP client, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IVR), Service Advertisement Framework (SAF) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
| Dimensions (WxDxH) | 44.5 cm x 41.3 cm x 4.39 cm |
| Weight | 9.07 kg |
| System Requirements | Cisco IOS XE 17.3.2 |
