All stock codes associated to this product
B560STEELLEGEND, B560 STEEL LEGEND, 5129921

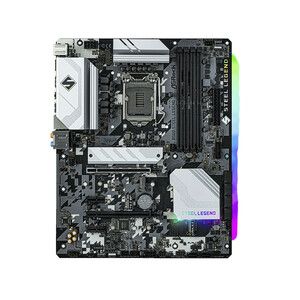

ASRock B560 Steel Legend Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces
- Supports 10th Gen IntelCore Processors and 11th Gen IntelCore Processors
- 10 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 &SATA3)
- 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s), 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
- Dragon 2.5 Gigabit LAN
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Style In Details |Featuring sturdy components as well as more elaborately styled pieces
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
10 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
6 Layer PCB
The 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Audio
Network &Communication
Video
Onboard Video | CPU Dependent Video |
I/O Controller
Controller Type | Serial ATA/600 |
Intel RST | Yes |
I/O Expansions
Number of PCI Express x1 Slots | 2 |
Number of Total Expansion Slots | 4 |
Number of PCI Express x16 Slots | 2 |
Total Number of PCI Express Slots | 4 |
Miscellaneous
Package Contents | - B560 Steel Legend Desktop Motherboard
- Quick Installation Guide
- I/O Shield
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- Support CD
- Drivers
- Utilities
- AntiVirus Software (Trial Version)
- Google Chrome Browser and Toolbar
|
Environmentally Friendly | Yes |
Environmental Certification | ErP/EuP Ready |
Brand Compatibility | Intel |
Physical Characteristics
Colour | Matte Black |
Form Factor | ATX |
Width | 304.8 mm |
Depth | 243.8 mm |
Onboard Interfaces
Number of SATA Interfaces | 6 |
Total Number of Onboard USB Ports | 5 |
Number of Onboard USB 2.0 Ports | 2 |
Number of M.2 Interfaces | 4 |
Number of Onboard USB 3.2 Ports | 3 |
General Information
Product Type | Desktop Motherboard |
Manufacturer Part Number | B560 STEEL LEGEND |
Manufacturer Website Address | https://www.asrock.com |
Manufacturer | ASRock, Inc |
Product Model | B560 Steel Legend |
Product Name | B560 Steel Legend Desktop Motherboard |
Brand Name | ASRock |
Interfaces/Ports
S/PDIF | Yes |
HDMI | Yes |
Number of Network (RJ-45) Ports | 1 |
DisplayPort | Yes |
Total Number of USB Ports | 7 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.2 Ports | 1 |
Number of USB 3.2 Gen 1 Ports | 4 |
Memory
Maximum Memory Supported | 128 GB |
Memory Technology | DDR4 SDRAM |
Number of Memory Slots | 4 |
Memory Form Factor | DIMM |
UDIMM |
Memory Speed Supported | 4800 MHz |
4666 MHz |
Intel Optane Memory Ready | Yes |
Processor &Chipset
Processor Supported | Core i5 |
Core i3 |
Pentium Gold |
Celeron |
Core i7 |
Core i9 |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1200 |
Chipset Manufacturer | Intel |
