All stock codes associated to this product
VSIFP2410, VS-IFP2410, 766907003864, 76690700386 4

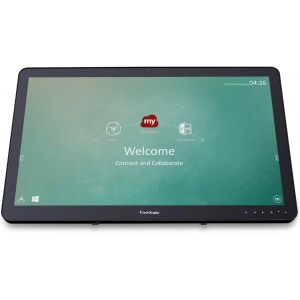

Viewsonic ViewBoard Mini IFP2410
Overview
- Interactive front-facing teaching and collaboration
- Built-in myViewBoard digital whiteboarding software
- Built-in ViewBoard Cast streaming software
The ViewBoard Mini IFP2410 is a 24" interactive display that transforms
podiums and lecterns into collaboration hubs for front-facing teaching. With
integrated myViewBoard digital whiteboarding software, ViewBoard Cast streaming
software, and a 10-point touchscreen, the ViewBoard Mini makes content creation
and sharing easier than ever before. Educators can manipulate and control
content, files, images, and annotations on the ViewBoard Mini touchscreen, then
share that content on a larger front-of-classroom display or projector. For
dynamic lessons and interactive collaboration, multiple presenters can
simultaneously draw, write, and annotate on the ViewBoard Mini as well - making
it an ideal collaboration hub for classrooms, lecture halls, and
auditoriums.
Specifications
|
Display
|
Panel
Size: 23.6" |
|
Panel
Type: IPS |
|
Aspect
Ratio: 16:9 |
|
Resolution: 1920
x 1080 |
|
Brightness: 250
nits (typ.) |
|
Contrast
Ratio: 3000:1
Typ. |
|
Viewing
Angles: H
= 178, V = 178 typ. |
|
Backlight
Life: 40,000
Hours Typ. |
|
Orientation: Landscape |
|
Platform
|
Processor: ARM
based SoC |
|
RAM: 2GB
DDR3 |
|
Storage: 16GB
EMMC iNand |
|
Touch
|
Type/
Tech: PCAP
Touch Technology |
|
Touch
Point: 10
points touch, 10 points writing |
|
INPUT
|
HDMI: x1 |
|
Audio: x1
PC audio (3.5 mm) |
|
SD/SDHC: Yes |
|
OUTPUT
|
HDMI: x1 |
|
LAN
|
RJ45: x1 |
|
USB
|
Type
A: USB 2.0 x4 |
|
Type
B: x1 for touch |
|
Mini
USB: x1 ( for OTG) |
|
WEBCAM
|
x1,
5 MP |
|
MICROPHONE
|
x1,
Echo Cancelling |
|
COMPATIBILITY
|
HDMI: 480i,
480p, 720p, 1080i, 1080p |
|
Embedded
OS |
Android
8.1 |
|
Bundle
Software |
Basic
Annotation Software: myViewBoard
for Android |
|
Wireless
Presentation with Touch Feedback: Viewboard
Cast: vCastReceiver |
|
Power
|
Voltage: 100-240
VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz |
|
Consumption: 35W
(typ), 40W (max), < 0.5W
(""Off"") |
|
ERGONOMICS
|
Wall
Mount (VESA ): 100
x 100 |
|
OPERATING
CONDITIONS |
Temperature
( C): 5C
to 40C (Landscape only) |
|
Humidity: 20%
~ 90% non-condensing |
|
DIMENSIONS
(W x H x D) |
Physical
(inch / mm): 572.9
x 351.8 x 47mm ( 22.6 x 13.9 x 1.9
inches) |
|
Packaging
(inch / mm): 643
x 435 x 140 mm ( 25.32 x 17.13 x 4.93
inches) |
|
WEIGHT
|
Net
(lb / kg): 5.64
kg (12.43 lb) |
|
Gross
(lb / kg): 7.56
Kg (16.65 lb) |
|
REGULATIONS
|
FCC,
cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP,
WEEE, |
|
PACKAGE
CONTENTS |
1.
IFP2410 , 2. Power adapter , 3. Power cord* (*Applicable power cord is
shipped with the product base on the country power type), 4. Quick Start
Guide |
