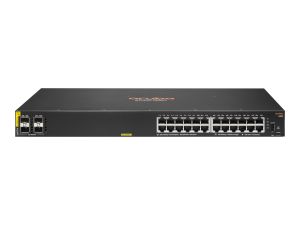

HPE JL677A Aruba 6100 24G CL4 POE+ 4SFP+ Ethernet Switch
  • 3 Layer Supported, Modular, 370W PoE Budget, Twisted Pair, Optical Fiber, PoE Ports, 1U, Rack-mountable, Wall Mountable

IMG 1 of 2
Our Price:
$2,891.90
RRP:
$6,473.50
You Save:
$3,581.60
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
507843
(?) Brand:
HPE
Manuf No:
JL677A
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
3/8/2020
Details Files Finance Images & Video
All stock codes associated to this product
JL677A, JL677A#ABG, 5473009, 190017348452

ARUBA 6100 24G CL4 4SFP+ SWCH

Aruba 6100 Switch Series

The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient builtin high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
Features
  • Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
  • Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
  • Compact and fanless 12 port model for quiet deployment
  • Automated configuration and verification with Aruba NetEdit
  • Software defined ready with REST APIs
  • Simplify adds, moves and changes with colorless ports

Management &Protocols
ManageableYes
Warranty
Limited WarrantyLifetime
I/O Expansions
Expansion Slot TypeSFP+
Number of Total Expansion Slots4
Number of SFP+ Slots4
Miscellaneous
Package Contents
  • 6100 24G Class4 PoE 4SFP+ 370W Switch
  • Non-Pluggable, Internal PSU Behind Sheetmetal Chassis Frame
  • Non-Pluggable, Internal Fans Behind Sheetmetal Chassis Frame
  • Mounting Brackets
Environmentally FriendlyYes
Environmental CertificationRoHS
WEEE
Interfaces/Ports
Network (RJ-45)Yes
ModularYes
Uplink PortYes
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet PoE+
4 x 10 Gigabit Ethernet Expansion Slot
Network &Communication
Layer Supported3
Networking StandardsIEEE 802.3ab
IEEE 802.1Q
IEEE 802.3x
IEEE 802.1ab
IEEE 802.1s
IEEE 802.3af
IEEE 802.3
IEEE 802.1x
IEEE 802.1p
IEEE 802.3az
IEEE 802.1D
IEEE 802.3at
IEEE 802.3ad
IEEE 802.1w
Media &Performance
Network Technology10GBase-X
10/100/1000Base-T
Ethernet Technology10 Gigabit Ethernet
Gigabit Ethernet
Media Type SupportedTwisted Pair
Optical Fiber
General Information
Product TypeEthernet Switch
Manufacturer Part NumberJL677A#ABG
Manufacturer Website Addresshttps://www.hpe.com/au/
ManufacturerHewlett Packard Enterprise
Product Name6100 24G Class4 PoE 4SFP+ 370W Switch
Product Series6100
Brand NameAruba
Physical Characteristics
Weight (Approximate)4.19 kg
Form FactorWall Mountable
Rack-mountable
Height43.9 mm
Width442 mm
Depth268.2 mm
Compatible Rack Unit1U
Power Description
Input Voltage230 V AC
120 V AC
Power SourcePower Supply
Frequency50 Hz
60 Hz
Power Consumption22.90 W
Number of Power Supplies Supported1
Number of Power Supplies Installed1
PoE (RJ-45) PortYes
PoE Budget370 W



No additional files, specification sheets, guides or documentation found for product.

Warranty: Limited Lifetime

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
