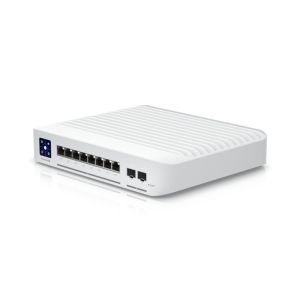

Ubiquiti Switch Enterprise 8 PoE
The Ubiquiti USW-Enterprise-8-PoE Switch is a managed layer 3 switch that is ideal for use with Wi-Fi 6 APs. It features 8x2.5GbE ports for uplinks, and 2x 10g SFP+ ports for uplinks. Additionally, it supports PoE+ for powering devices such as Wi-Fi access points.
The UniFi Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (2) 10G SFP+ ports and (8) 2.5GbE, 802.3at PoE+ RJ45 ports. The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
The Ubiquiti USW-Enterprise-8-PoE Switch is a 1.3" LCM color touchscreen with AR switch management that includes (8) 2.5GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports and 120W total PoE supply. The switch is wall-mountable (kit included).
The Ubiquiti USW-Enterprise-8-PoE Switch is an ideal managed layer 3 switch for Wi-Fi 6 APs. It offers 8x2.5GbE ports for uplinks and 8 PoE+ ports with a total non-blocking throughput of 40 Gbps and a switching capacity of 80 Gbps. The switch also features 2x 10g SFP+ ports for uplinks and a maximum PoE power of 120W.
Overview
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+
ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer
3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The
USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely
displays key system and connection insights. This switch can be monitored or
configured from anywhere with the powerful, intuitive UniFi Network web
application and mobile app.
Features
- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply
- Wall-mountable (kit included)
Specifications
|
Mechanical |
|
|
Dimensions |
200
x 248 x 44 mm (7.9 x 9.8 x 1.7") |
|
Weight |
2.4
kg (5.29 lb) |
|
Enclosure
Materials |
Polycarbonate |
|
Mount
Material |
Polycarbonate |
|
Hardware |
|
|
Total
Non-Blocking Throughput |
40
Gbps |
|
Switching
Capacity |
80
Gbps |
|
Forwarding
Rate |
59.52
Mpps |
|
Max
PoE Power |
120W |
|
Power
Method |
(1)
100-240VAC, 2A Max., 50/60 Hz, Universal Input |
|
Power
Supply |
AC/DC,
Internal, 150W |
|
Management
Interface |
Ethernet
In-Band |
|
Networking
Interfaces |
(8)
1/2.5 Gbps RJ45 Ethernet |
|
SFP+
Interfaces |
(2)
1/10 Gbps SFP+ |
|
PoE
Interfaces |
(8)
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
Max.
PoE+ Wattage per Port by PSE |
32W |
|
Voltage
Range 802.3af Mode |
44
to 57V |
|
Voltage
Range 802.3at Mode |
50
to 57V |
|
Services |
SMB
Layer 3* PoE Gigabit Ethernet Switch |
|
*
Layer 3 feature will be available in the future firmware
release. |
|
LCM
Display |
(1)
1.3" Touchscreen |
|
Bootup
Animation: Bootup in Progress |
|
Firmware
Upgrade Icon: Firmware Upgrading |
|
Steady
White: Factory Defaults, Awaiting Adoption |
|
Steady
Blue: Device is Adopted |
|
ESD/EMP
Protection |
Air:
16 kV, Contact: 12 kV |
|
Operating
Temperature |
-5
to 45 C (23 to 113 F) |
|
Operating
Humidity |
10
- 90% Noncondensing |
|
Certifications |
CE,
FCC, IC |
|
LEDs |
|
|
Ethernet |
White:
Link or Activity |
|
SFP+ |
White:
Link or Activity |
Networking
