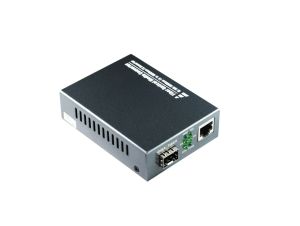

CB-FO-54 | Generic Gigabit Media Converter With SFP Port Supports Singlemode/Multimode

The media converter complies with IEEE 802.3/ab Gigabit Ethernet standard. It supports two types of media for network connection such as 10/100/1000 Base-T to 1000 Base SX/LX and connects these two types of segments. To operate smoothly this series can be used in 14 slot chassis as plug in module. This series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector. The fiber Gigabit connection supports shortwave (SX) or long wave (LX) laser optic with multi-mode or single-mode SFP type connector. This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 80 km! 10/100/1000 means, that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually.

Main Features

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto negotiation
Works at 10Mbps or 100Mbps, full or half duplex mode, or 1000Mbps full-duplex mode
One SFP slot for Gigabit links
Extends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
Supports auto MDI/MDIX function
Status LED for easy monitoring of device status
Supports jumbo frame size 9K bytes
Supports independent LFP function
External power supply
FCC Class A &CE approved

Specifications

Interface

1 x Ethernet port (RJ45) 10/100/1000Base-Tx

1 x Optical port (SFP) 1000Base-Fx

Optical Port

Available for 1310nm and 1550nm Single mode, and 850nm Multi mode;
Transfer Distance: up to 120km;
Connectors: SFP
Fiber core: 9/125µm on single mode fiber, 50/125µm and 62.5/125µm on multi-mode fiber
Ethernet Port

Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x
Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection autosensing DIP Switch Function TP port mode Normal or Cut-Through LFP enabled (default) or disabled

LED Indicators

Power Status, FDX, Speed, FX Link/Act, TX Link/Act
Power Requirement

Input: 5V DC
Physical Characteristics

Housing: Metal enclosure
Dimensions: 94 x 70 x 26mm (Excluding the connector)
Weight: 0.28kg
Environmental Limits

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH
Storage Humidity: 5% to 90% RH
