Part Number:
511457
(?) Brand:
Manuf No:
AG411B
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:

Enter email address to be notified when this item is available again

All stock codes associated to this product
AG411B, 41AIBPCAG411B, 41AI-BPC-AG411B, 4710710674120

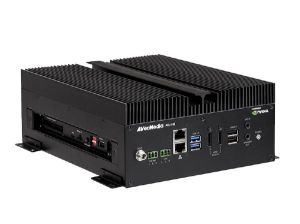

AVerMedia AVerAI Box PC AG411B equips NVIDIA Jetson AGX Xavier 32GB module which aims it at AI centric use cases for edge computing such as heavy industry and industrial automation with wide input voltage operation. AG411B is easy to use with expansion I/O on one side.

AG411B Box PC provides 2x M.2 Key M 2280 and 4x mPCIe slots alternatively for Xavier to receive various video inputs by using AVerMedia’s capture cards.

Overview

  • Embedded NVIDIA Jetson AGX Xavier 32GB module
  • 2x M.2?>
  • 2x M.2 Key M 2280 or 4x mPCIe alternatively
  • 1x M.2 Key E 2230 for Wi-Fi module
  • 1x M.2 Key M 2280 for NVMe
  • 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output
  • 1x CAN bus with transceiver
  • Wide input voltage: 15~54V DC Input
  • Easy to use with expansion I/O on one side.
  • Operating temperature: -10C ~ 60C
  • Dimension: W: 190mm x L: 239mm x H: 88.5mm

Specifications

Model

AG411B

Type

Box PC

NVIDIA GPU SoC Module Compatibility

NVIDIA Jetson AGX Xavier 32GB module

Networking

2x GbE RJ-45

Display Output

2x HDMI 2.0, maximum resolution: 3840 x 2160 at 60Hz

Temperature

Operating temperature -10C~60C

Storage temperature -40C ~ 85C

Relative humidity 40 C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for RNDIS

2x USB 3.0 Type-A (USB3.1 x2)

3x USB 2.0

Storage

32GB eMMC 5.1 &1x micro-SD card slot

RS-485

1x RS-485

CAN bus

1x CAN bus with transceiver

Audio

1x Mic-in

1x Speaker-out

Expansion Header

40 pins: 1x UART, 2x 12C, 1x CAN (W/O transceiver), 5x GPIO

User Expansion

1 x M.2 Key E 2230 for Wi-Fi module (PCIe Gen4x 1)

1 x M.2 Key M 2280 for NVMe (PCIe Gen4x 4)

2 x M.2 Key M 2280 (PCIe Gen2x 4) or 4x mPCIe Gen2 x1

1 x SATA

DIP Switch Expansion

1. Auto power on enable/Disable (External)

2. FAN PWM on enable/Disable (External)

3. RS485 Terminal ON/OFF (External)

4. CAN Bus Terminal ON/OFF (External)

Input Power

DC IN Plug (54V/2.78A)

Buttons

Power and Recovery (Power button with green LED)

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

Chassis Dimension/ Weight

W: 190mm x L: 239mm x H: 88.5mm

Weight:  3.6Kg

Certifications

CE, FCC



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers web site.
