IMG 1 of 5
Our Price:
$97.45
RRP:
$373.00
You Save:
$275.55
or quickly purchase this product
Backorder

Part Number:
511467
(?) Brand:
Manuf No:
EN715-BBC3
EN715BBC3
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
EN715BBC3, EN715-BBC3, 41AICBEN715, 41AI-CB-EN715, 4710710680077

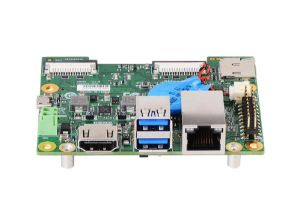

AVerMedia AVerAI carrier board EN715 is designed for NVIDIA Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four U 3.2 mounting holes for the highly reliable field installation.
  • Fully support NVIDIA Jetson Nano (Version B01)/Xavier NX module
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
  • 2x 2 Lane MIPI CSI-2
  • 1x 4 Lane MIPI CSI-2
  • 20-pin Expansion header
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C
  • Dimension: W:87mm x L:70.6mm x H: 27.3mm

Specifications

Model

EN715

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA Jetson Nano (Version B01)/Xavier NX module

Networking

1x GbE RJ-45

Display Output

3840 x 2160 at 60Hz

Temperature

Operating temperature 0C~70C

Storage temperature -40C ~ 85C

Relative humidity 40 C @ 95%, Non-Condensing

MIPI Camera Inputs

       2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible  on NVIDIA Jetson Nano Developer Kit)

       1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A

Storage

1x micro-SD card slot

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

3.5mm Screw Terminal; 9V~19V is recommended.

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 87mm x L: 70.6mm x H: 27.3mm (3.43 x 2.78 x 1.07)

Weight: 70g

Certifications

CE, FCC, KC

Optional Accessories

NVIDIA Jetson Series

NVIDIA Jetson Nano (Version B01)/Xavier NX module

Power Adaptor

12V, 5A

Power Cord

US/JP/EU/UK/TW

Fan Module

Heat sink with fan

MIPI Camera

For 15 pin MIPI connector:

1.raspberry pi camera v2

2.Manufacturer: APPRO.PHO

   B-04: IMX179 (8M) MIPI, 1080P (30fps)

   C-04: IMX290 (2M) MIPI, 1080P (30fps)

   C-05: IMX290 (2M) +ISP  (YUV), 1080P (30fps)

For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

   B-03: IMX334 (4K) MIPI, 4K (30fps)

   A-06: IMX334 (4K) V-by-One HS x1, 4K (30fps)



No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
