All stock codes associated to this product
A530TCHNP, SP530XAP

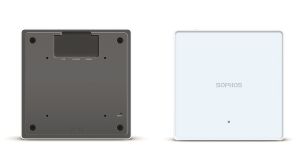

Sophos APX 530 High-performance 3x3:3 access point for typical office
environments of all sizes
Overview
All models are available for cloud-management in Sophos
Central.
Indoor models can also be managed on-premises via Sophos Firewall and UTM
(SG).
- The Sophos APX Series is a portfolio of access points with Wi-Fi 5
(802.11ac Wave 2) technology. They are custom-built for increased throughput
at load and better performance and security.
- Sophos Central only: Security Heartbeat ready to connect with other Sophos
Central managed products*
- Significant performance improvement over legacy 802.11ac Wave 1 models
- Indoor models optimized for both wall- and ceiling-mount (diverse mounting
kits available)
- Outdoor model optionally available with external directional/sector
antenna
- Five-year warranty as standard; Advance Replacement RMA included
Specifications
|
DEPLOYMENT |
INDOOR
|
|
USAGE |
General
purpose, medium to high density, e.g. standard mid-sized
office |
|
STANDARD |
802.11AC
WAVE 2 (WI-FI 5) |
|
PERFORMANCE |
|
|
MIMO
|
3x3:3
MU-MIMO |
|
MAX.
THROUGHPUT DUAL-BAND MODE |
Up
to 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz) |
|
RADIOS |
|
|
RADIO-0:
|
2.4
GHz single band |
|
RADIO-1:
|
5
GHz single band |
|
ANTENNAS |
3x
internal 2.4 GHz antenna for Radio-0 |
|
3x
internal 5 GHz antenna for Radio-1 |
|
DFS |
YES
|
|
MOUNTING |
Desktop,
wall or ceiling mount |
|
MOUNTING
KIT |
Included:
Bracket for wall- and/or 15/16", 9/16", 3/8" T-bar
ceiling-mount. |
|
Optional:
Kits for flat ceiling, plenum and suspend
mount. |
|
INTERFACES |
1x
RJ45 connector console serial port |
|
1x
RJ45 10/100/1000 Ethernet |
|
1x
RJ45 10/100/1000 Ethernet w/PoE+ |
|
POWER
(MAX.) |
16.7
W |
|
POWER-OVER-ETHERNET |
PoE+
802.3at |
|
DIMENSIONS |
183x183x39
mm |
|
WEIGHT |
0.922
kg |
|
CERTIFICATIONS
AND COMPLIANCE2 |
CB,
UL, CE, FCC, ISED (IC), RCM, Anatel. |
|
EN
60601-1-2 (Medical Equipment Directive) |
|
Plenum-rated
(UL2043) |
|
WARRANTY |
5
years |
